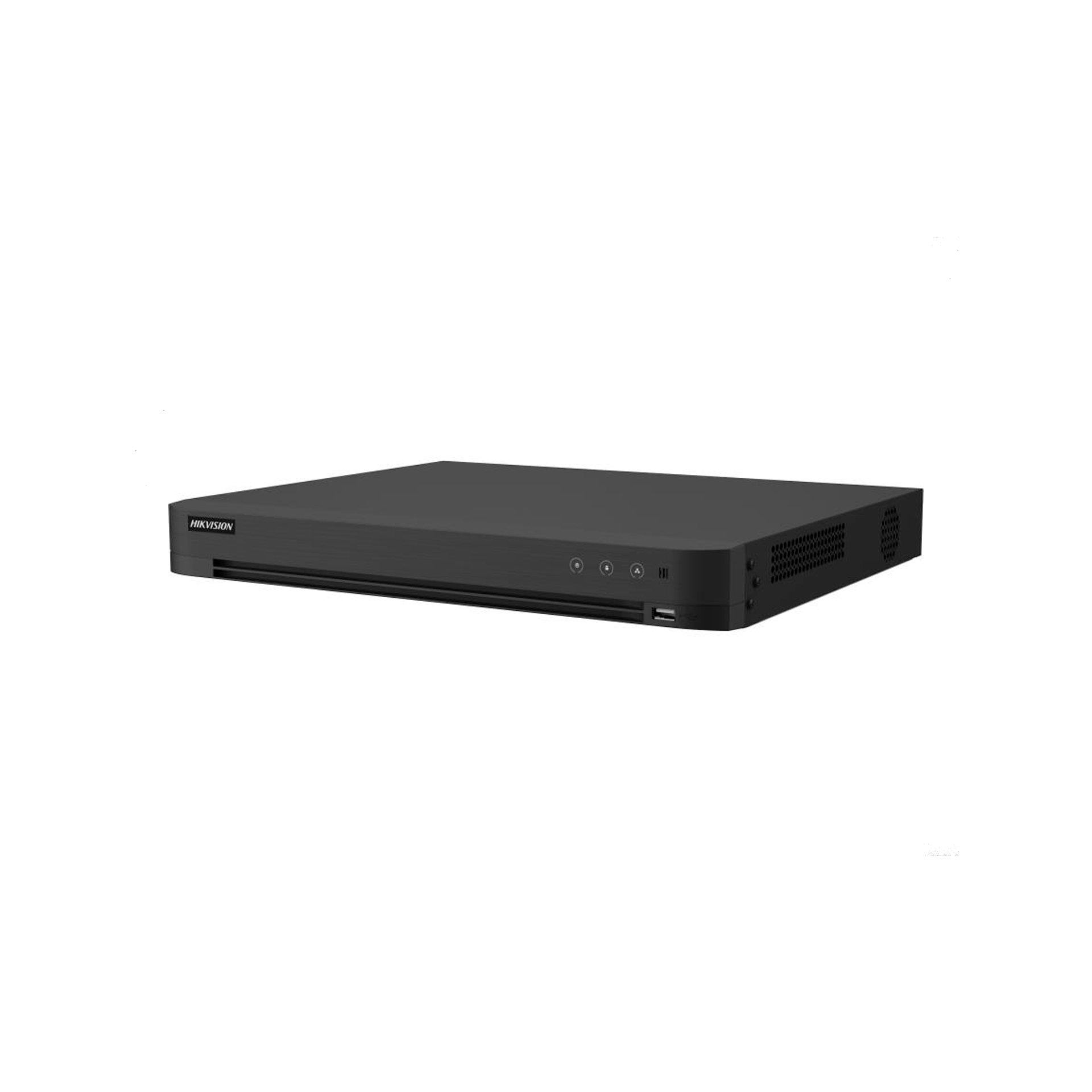

GRABADOR HD HIKVISION iDS-7208HUHI-M2/X(STD)

Face Picture Library Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)

Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Human/Vehicle Analysis Up to 8-ch (advanced model)

Facial Detection and Capture Face picture detection, face picture search； 4-ch face picture capture

IP Video Input 8-ch (up to 16-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

CVBS Input PAL/NTSC

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback 8-ch

HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5M(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Audio Output 1-ch, RCA (Linear, 1 KΩ)

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate 32 Kbps to 10 Mbps

Dual-stream Support main stream or sub stream

Stream TypeVideo, Video & Audio

Audio Compression G.711u

Audio Bitrate 64 Kbps

Decoding Capability up to 24-ch 1080P@30fps

Total Bandwidth 256 Mbps

Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection 64

Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

SATA 2 SATA interface

Capacity up to 12 TB capacity for each disk

Serial Interface RS-485 (half-duplex)

USB Interface Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0

Alarm In/Out N/A (optional to support)

Power Supply 12 VDC, 3.3 A

Consumption ≤ 40 W

Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity 10% to 90%

Dimension (W × D × H)385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)

Weight ≤ 1.78 kg (3.9 lb)
