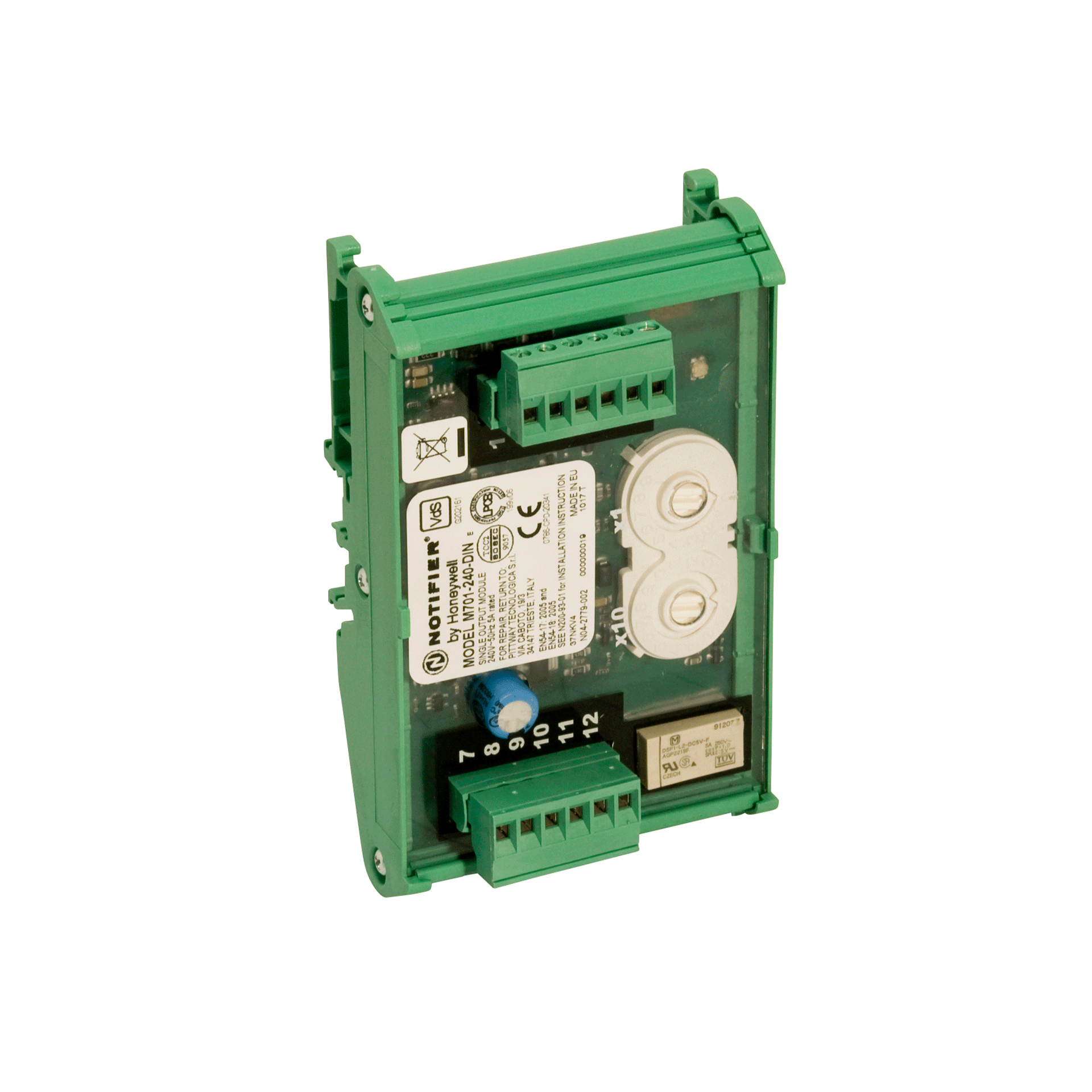

Morley MI-D240CMO-DIN Module
208553017
Output module for MorleyIAS Analog System, to be mounted on a DIN rail that provides voltage-free contacts of 240Vac and 5A, both NO and NC. They allow you to supervise and control auxiliary devices. Includes short circuit isolator. Easy addressing using two decade rotary switches. It has a two-color LED (green: flashes when the device is asked; yellow: solid due to a fault). Connected through removable terminals (up to 2.5mm2 section). Product to order with usual delivery time of less than 3 business weeks. • Weight: 140g • Dimensions in mm: 76 width 127 height 48 depth • Relay Contacts: 5A at 30Vdc/240Vac resistive • Approved according to: EN54-18 and EN54-17 • Certificate CPD: 0786-CPD-20341
Out of stock, check availability.
Envío gratis*
*En compras superiores a 200€ en Península y Baleares.
Productos Bajo Pedido
Podemos suministrar cualquier producto sin stock.Consulta plazo.
Devoluciones
30 días para cambio odevoluciónde productos no usados.
Pagos 100% seguros
Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.
Detalles del producto
Parámetros principales
Product Model
MI-D240CMO-DIN
System Type
Analogical
Conectivity
Wired
Module type
Outputs
Brand
Morley
