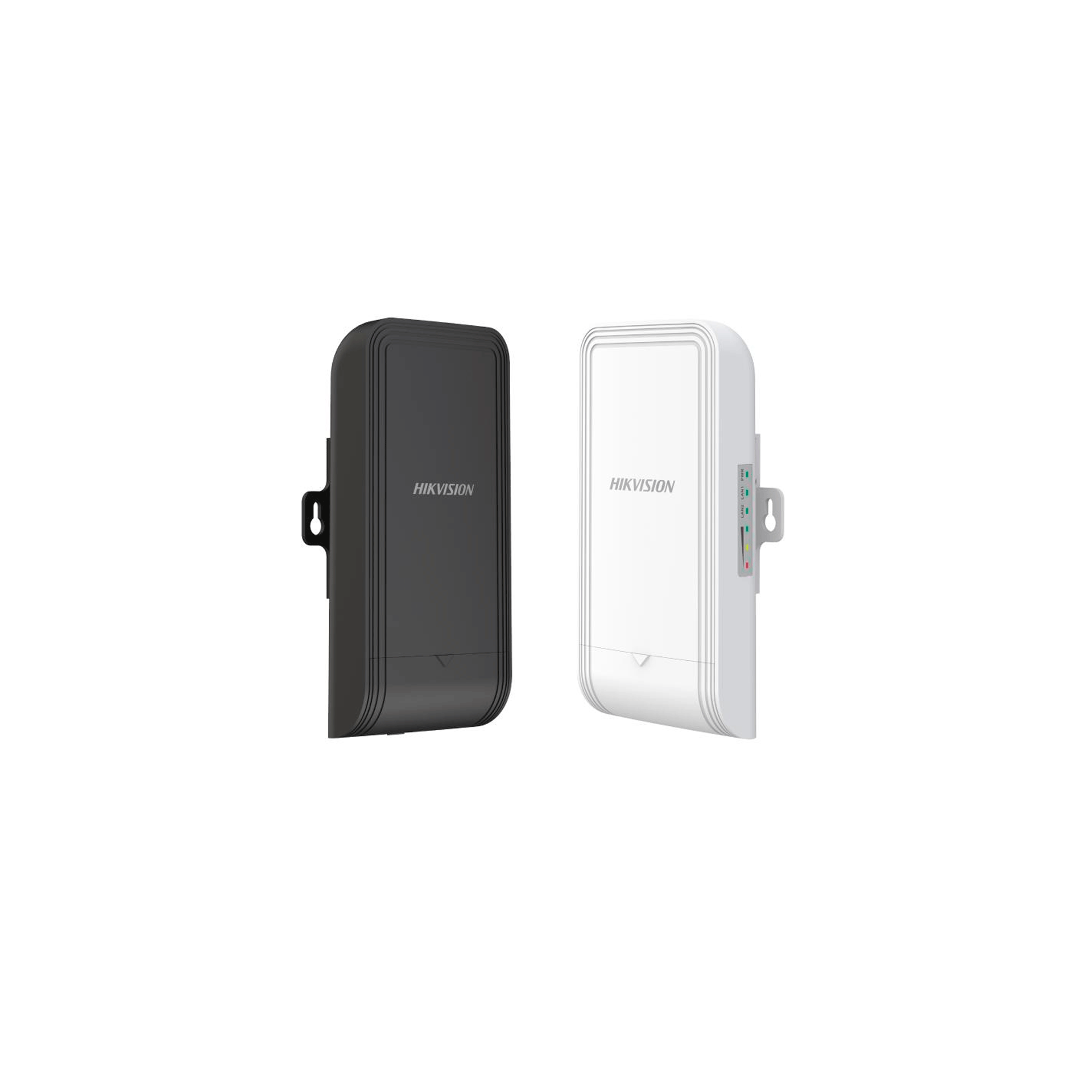

TRANSMISOR INALAMBRICO HIKVISION DS-3WF0EC-2NT

General

Product Dimensions (W × H × D)

90.8 mm × 57.87 mm × 187.87 mm (3.57'' × 2.27'' × 7.39'')

Package Dimensions (W × H × D)

256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")

Net Weight

0.26 kg (0.57 lb) per device

Gross Weight

0.8 kg (1.76 lb)

Packing List

Wireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1

Packing Method

Packing in pairs

Working Temperature

-30 °C to 70 °C (-22 °F to 158 °F)

Working Humidity

5% to 95% (no condensation)

Storage Temperature

-40 °C to 80 °C (-40 °F to 176 °F)

Storage Humidity

5% to 95% (no condensation)

Installation Mode

Pole Mounting

Ingress Protection

IP55

Power Consumption

1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W

Wireless Parameter

Max. Transmission Rate of Air Interface

≤ 300 Mbps

Wireless Standard

IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)

Working Frequency Band

2400 MHz ~ 2483.5 MHz

Antenna Gain

7 dBi

Antenna Angle

(H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°

Transmitting Power

23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)

Receiving Sensitivity

-87±2 dBm @HT40 MCS0

Throughput Rate

PTP: ,50 Mbps/0.2 KM(HT40),30 Mbps/0.5 KM(HT40)

Hardware Parameter

Network Interface

2 × 10/100 Mbps RJ45 ports

LED Indicator

Power indicator,LAN indicator,Signal intensity indicator

Reset

Hardware resetting button

Power Supply

12-24 VDC Passive PoE

Software Function

Application Function

IFM,IPM

Channel Width

10/20/40 MHz

Channel Selection

Auto/manual selection

Network Protocol

NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)

Security Mode

WPA2-PSK

Security Mechanism

Wireless network name hidden

Management Method

Web,iVMS-4200,HCP

Upgrade

Web,iVMS-4200,HCP

System Log

Syslog,Control center information

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Radio

EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
