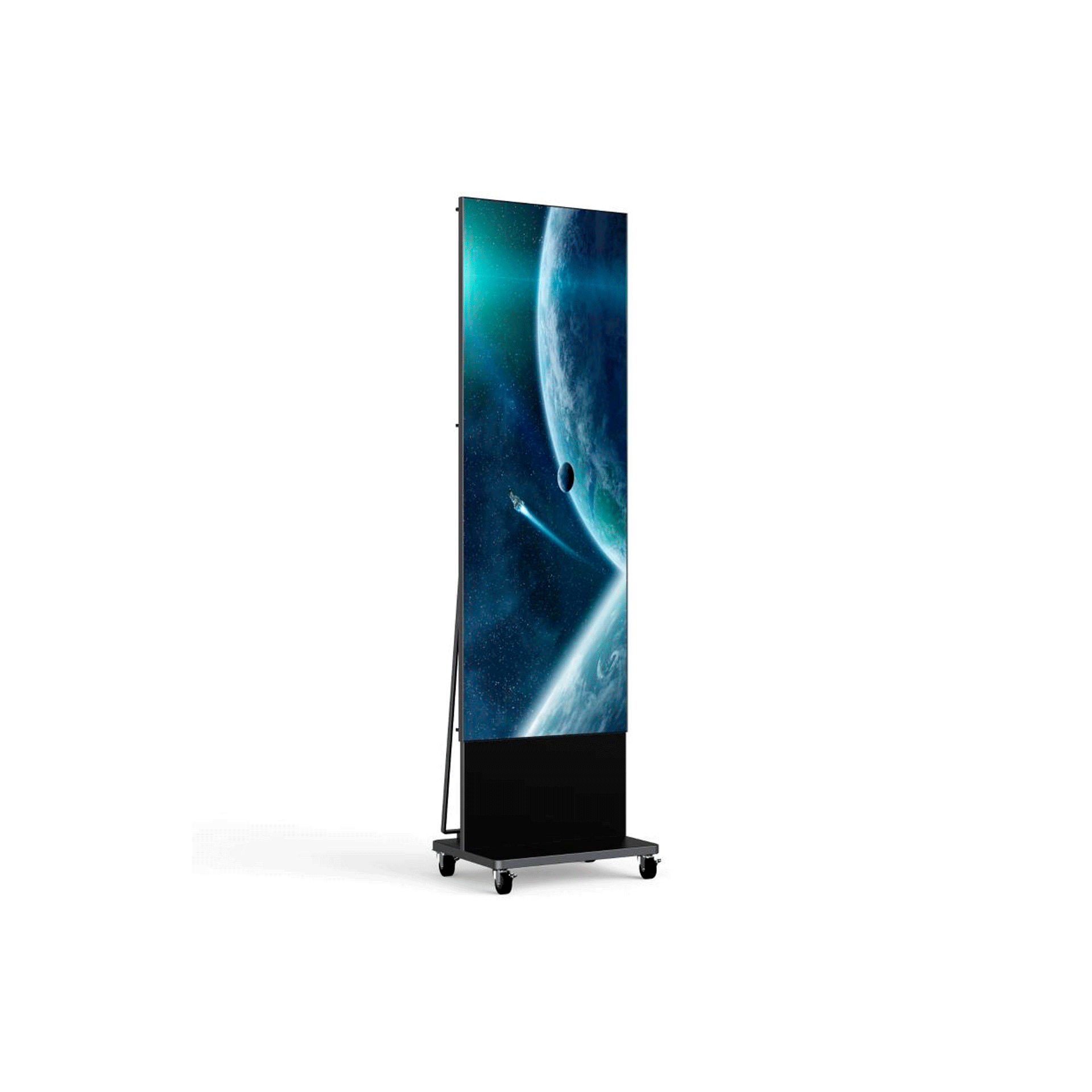

TOTEM HIKVISION DS-D4212MI-070H(B)/flight case

Product Model

Product Model

DS-D4212MI-070(B)

Cabinet

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P1.2

Pixel Pitch

1.25 mm

Modules Component

Cabinet × 5, single cabinet (2 × 4)

Dimensions (W × H × D)

613 × 1695.5 × 68.1 mm (24.1 × 66.8 × 2.7 inch)

Resolution

480 × 1350

Area

1.0125 m²

Weight

32.5 kg (71.65 lb.)

Pixel Density

640000 dots/m²

Lamp Board Housing

Without housing, glue potting

Cabinet Material

Aluminum alloy

Maintenance Method

Front maintenance for cabinet, and rear maintenance for system backpack

Display

White Balance Brightness

600 cd/m²

Color Temperature

3000 to 10000 K adjustable

Viewing Angle

Horizontal 160°, vertical 160°

Contrast Ratio

≥ 3000:1

Color Uniformity

± 0.003 Cx, Cy

Brightness Uniformity

≥ 97%

Processing Performance

Driving Method

Constant current driving

Frame Frequency

60 Hz

Refresh Rate

Up to 3840 Hz

Grey Level

Up to 16 bit

Power

Power Supply

110 to 220 VAC ± 15％

Max. Consumption

≤ 600 W/m²

Average Consumption

＜200 W/m²

Working Environment

Working Temperature

-10 to 40 °C (14 to 104 °F)

Working Humidity

10% to 60% RH (non-condensing)

Storage Humidity

10% to 85% RH (non-condensing)

Storage Temperature

-20 to 60 °C (-4 to 140 °F)

General

Package Dimension (W × H × D)

1831 × 1082 × 246 mm (72.1 × 42.6 × 9.7 inch)

Gross Weight

69 kg (152.12 lb.)

Packing List

Power cord × 1, HDMI × 1, Wi-Fi antenna × 2
