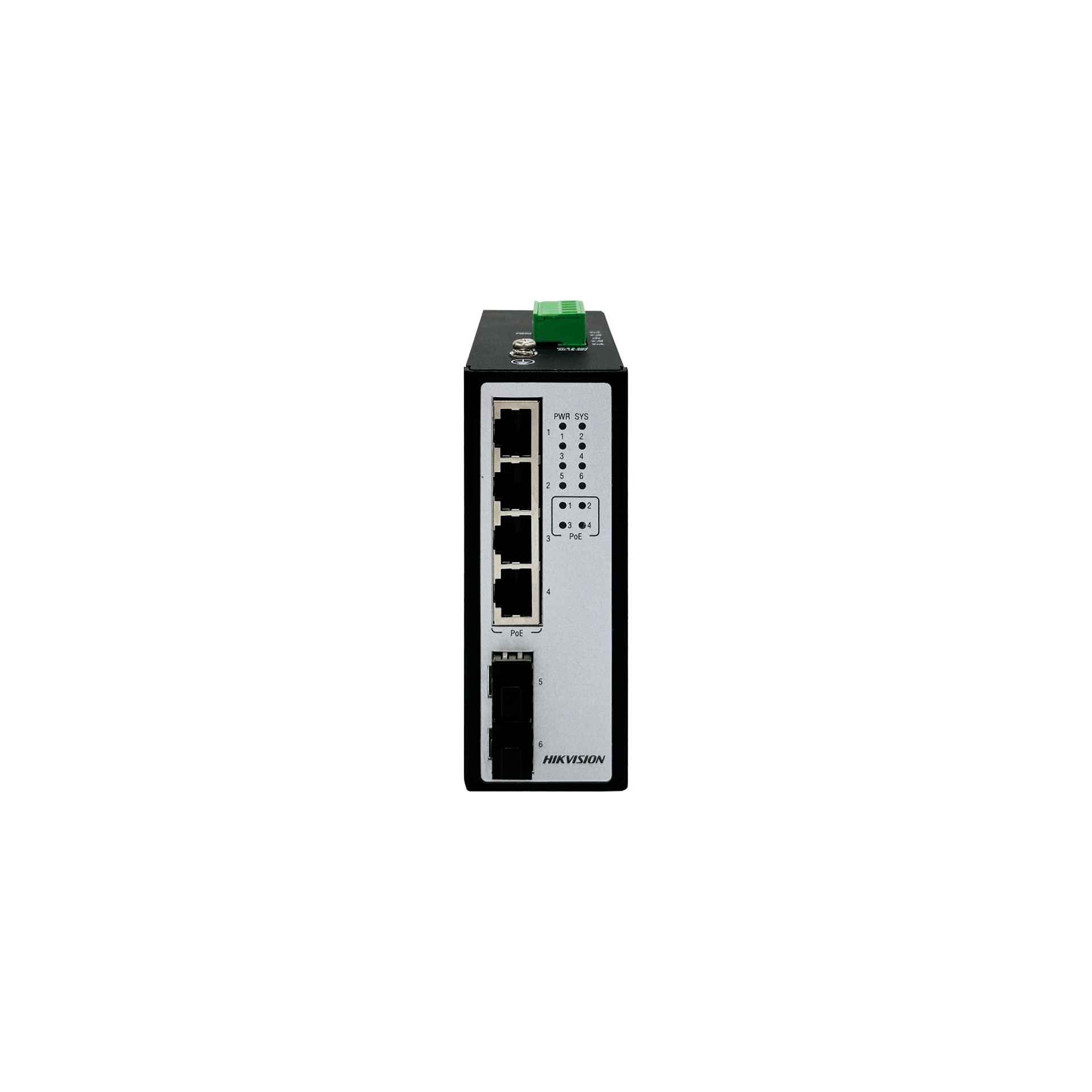

SWITCH HIKVISION DS-3T2506P

General

Net Weight

0.36 kg (0.79 lb)

Gross Weight

0.50 kg (1.1 lb)

Dimension (W × H × D)

110 mm × 42 mm × 110 mm (4.33" × 1.65" × 4.33")

Working Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Working Humidity

5% to 95% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

48-54VDC, Redundant dual inputs ( Power supply unit is not included)

Max. Power Consumption

120 W

Shell

Metal material, IP40

Network Parameters

MAC Address Table

8 K

Ports

4 × Gigabit PoE port,2 × Gigabit fiber optical port

Switching Capacity

Whole-Device Performance: 20 Gbps Port Performance: 20 Gbps

Packet Forwarding Rate

Whole-Device Performance: 14.88 Mpps Port Performance: 14.88 Mpps

PoE Power Supply

PoE Power Pin

4-pin power: 1/2(+), 3/6(-)

Software Function

QoS

Support Diff-Serv QoS Support 802.1p/DSCP priority mapping Support Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ Support Priority marking and remarking Support Traffic shaping Support Port/Flow- based Rate Limiting

VLAN

Support IEEE 802.1Q (VLAN), Up to 256 VLAN groups, 4096 VLAN IDs Support GVRP Support QinQ Support VLAN based on MAC/ protocol /IP subnet / policy / port Support Private VLAN Support 1:1 and N:1 VLAN Mapping functions

Management Method

Support CLI, Telnet, Console, RJ45 console, SSH Support web, http,https Support FTP, TFTP, SFTP Support SNMP V1/V2c/V3 Support RMON Support NTP

Reliability

Support STP/RSTP/MSTP Support EAPS/MEAPS Support ERPS

Security

Support AAA,TACACS+ Radius Authentication Support 802.1X authentication, MAC authentication, MAC bypass authentication Support to prevent DOS, ARP attack function, ICMP anti attack Support binding of IP, MAC, Support MAC authentication Support MAC address filtering Support Broadcast/Multicast/Unknown-unicast Storm Control

Multicast

Support IGMP v1/v2 Snooping Support IGMP V1/V2/V3 Support MLD Snooping v1 Support MLD v1/v2

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027)
