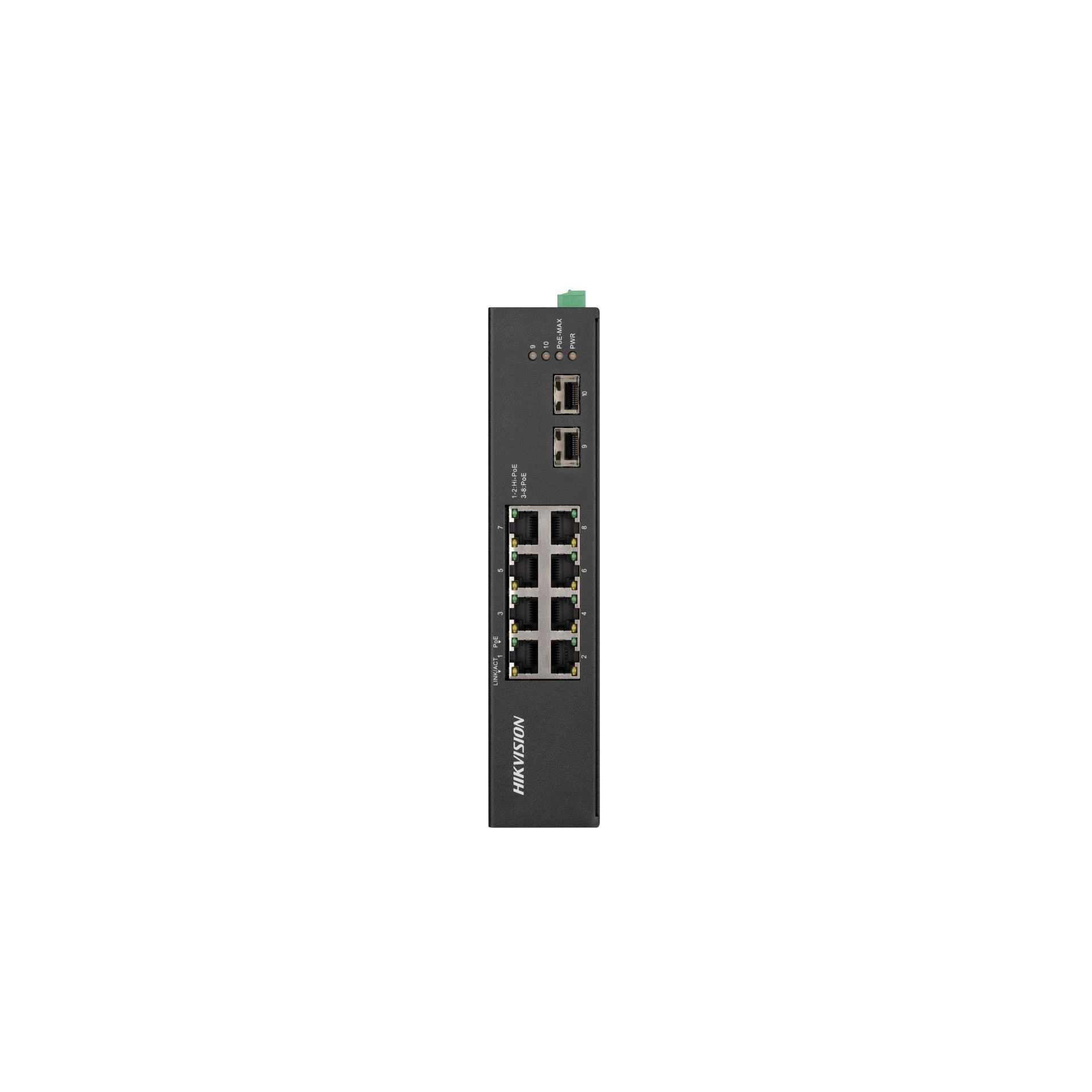

SWITCH HIKVISION DS-3T0510P

General

Shell

Metal material, fan-free design

Net Weight

0.8 kg (1.76 lb)

Gross Weight

1.3 kg (2.87 lb)

Dimensions (W × H × D)

52.0 mm × 140.0 mm × 110.0 mm (2.05'' × 5.51'' × 4.33'')

Operating Temperature

-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48VDC, 3.13A

Max. Power Consumption

250 W

Power Consumption in Idle

10 W

Installation Mode

Desk-Mounted

Surge Protection

6 KV

Network Parameters

Ports

8 × Gigabit PoE port,2 × Gigabit fiber optical port

MAC Address Table

4 K

Switching Capacity

20 Gbps

PoE Power Supply

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

End-span: 1/2(+), 3/6(-)

PoE Port

PoE: Ports 1 to 8

Max. Port Power

30 W

PoE Power Budget

240 W

Approval

EMC

FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU)
