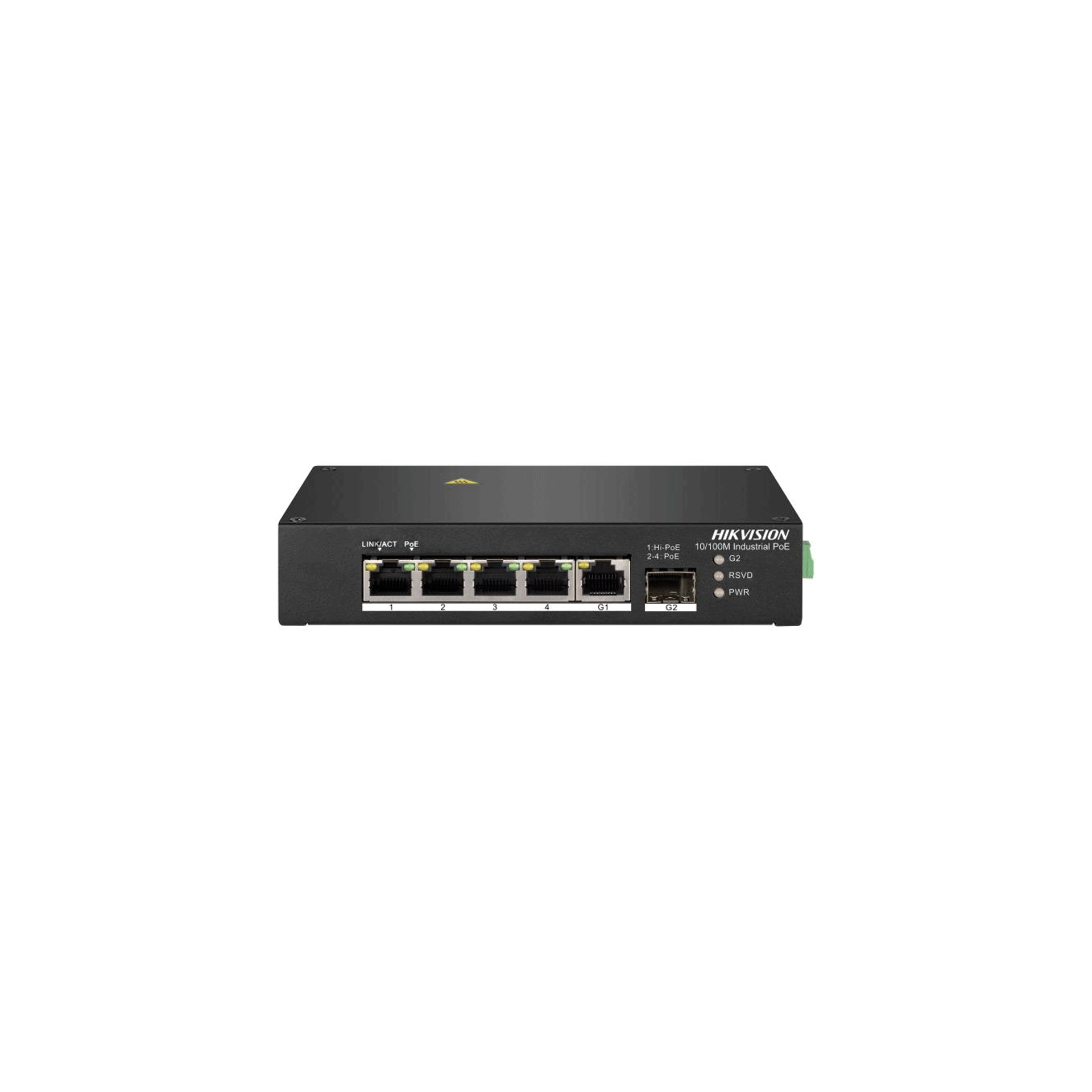

SWITCH HIKVISION DS-3T0306HP/No Power unit

General

Shell

Metal material, fan-free design

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.915 kg (2.02 lb)

Dimensions (W × H × D)

158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)

Operating Temperature

-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48-57VDC, 2.5A

Max. Power Consumption

120 W

Power Consumption in Idle

10 W

Installation Mode

Rail,Desk-Mounted

Surge Protection

6 KV

Network Parameters

Ports

4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

4 K

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Internal Cache

1 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

Hi-PoE: Ports 1 to 1,PoE: Ports 2 to 4

Max. Port Power

30 W

PoE Power Budget

110 W

Dialing Function

Long Range

Ports 3 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1  to 4: auto detect and restart the cameras that do not respond.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
