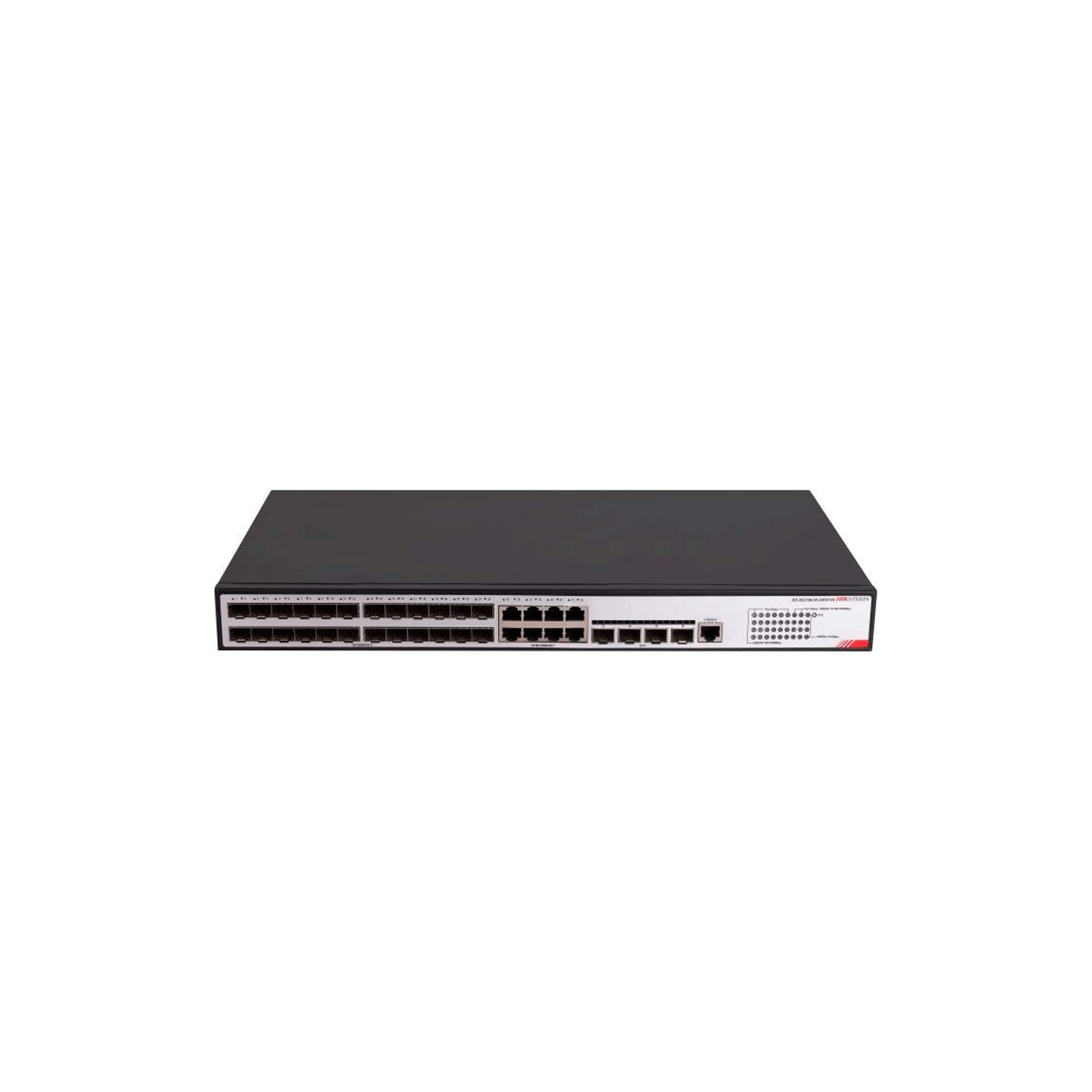

SWITCH HIKVISION DS-3E2736-HI-24F8T4X

General

Shell

Metal material

Net Weight

2.85 kg (6.28 lb)

Gross Weight

3.05 kg (6.72 lb)

Dimensions (W × H × D)

440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100~240 V AC, 50/60 Hz, Max. 4 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

250 W

Power Consumption in Idle

20 W

Surge Protection

6 KV

Network Parameters

Ports

16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache

4.1 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 16

Max. Port Power

30 W

PoE Power Budget

230 W

Long Range

Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.

VIP Port

--

Port Isolation

Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 16: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation group(s).

Approval

QoS

--

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
