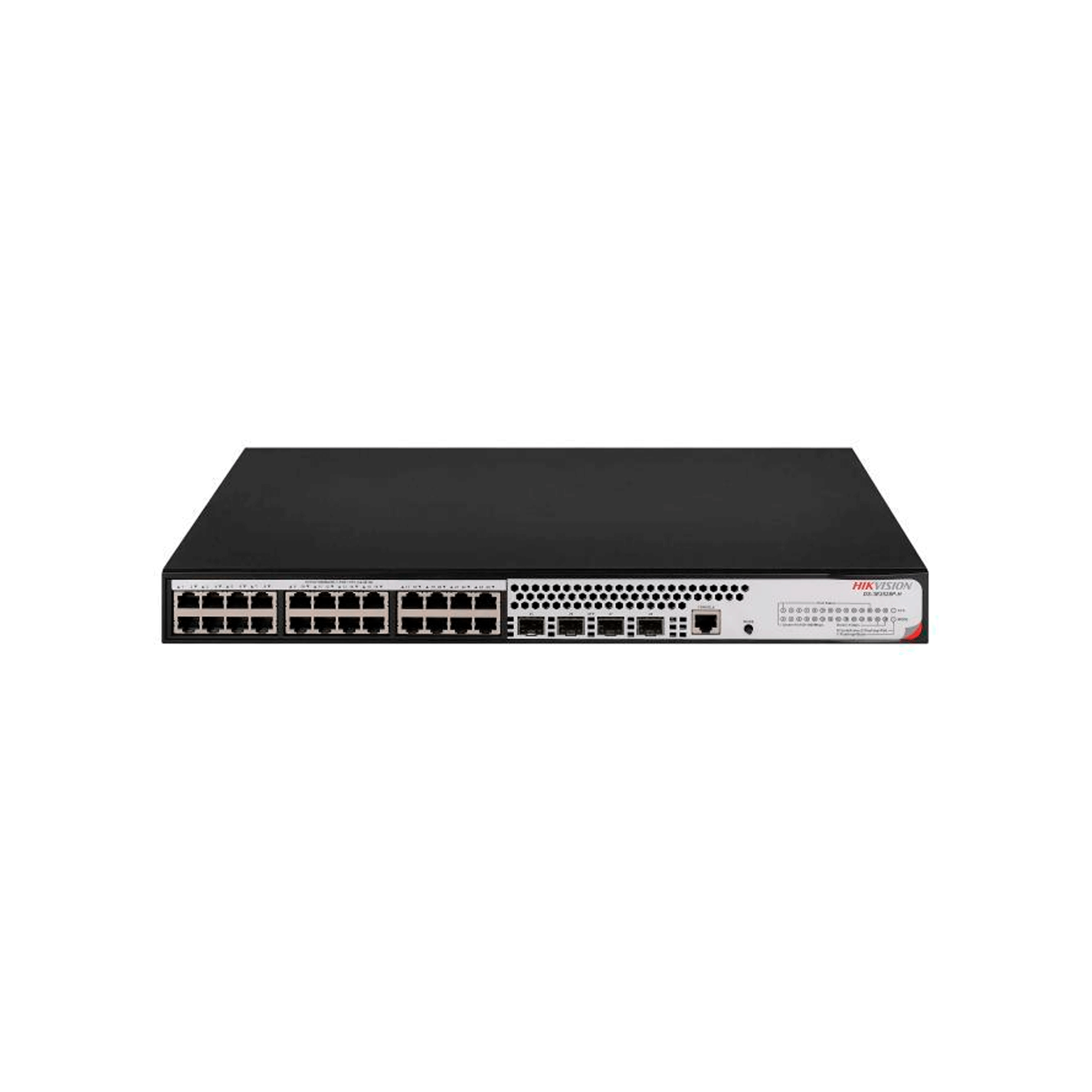

SWITCH HIKVISION DS-3E2528P-H

General

Weight

4.5 Kg

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Operating Humidity

10% to 95% (no condensation)

Ports

24×10/100/1000BASE-T ports (POE+), 4×1000Base-X SFP ports

Dimensions (mm)

440×260×44

Key Feature

Security

Hierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression

Management maintenance

Command line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow NQA NTP clock System operating logs

ACL

ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL

VLAN

802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP

DHCP

DHCP Relay DHCP Client DHCP Snooping

Network Parameters

Multicast

IGMP V1/V2/V3 snooping PIM Snooping Multicast VLAN IPv6 multicast setting

Switching Capacity

Whole-Device Performance: 56 Gbps Port Performance: 56 Gbps

Packet Forwarding Rate

Whole-Device Performance: 41.66 Mpps Port Performance: 41.66 Mpps

QoS

SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit

Software Function

Reliability

Ethernet OAM DLDP Smart Link Monitor Link

Routing Feature

Static routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6

IPv6

IPv6 static routing and dual-stack DHCPv6 Client and DHCPv6 Snooping ND and PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution

Power

Power Input

AC：100V～240V AC，50/60Hz

Power Consumption

448W
