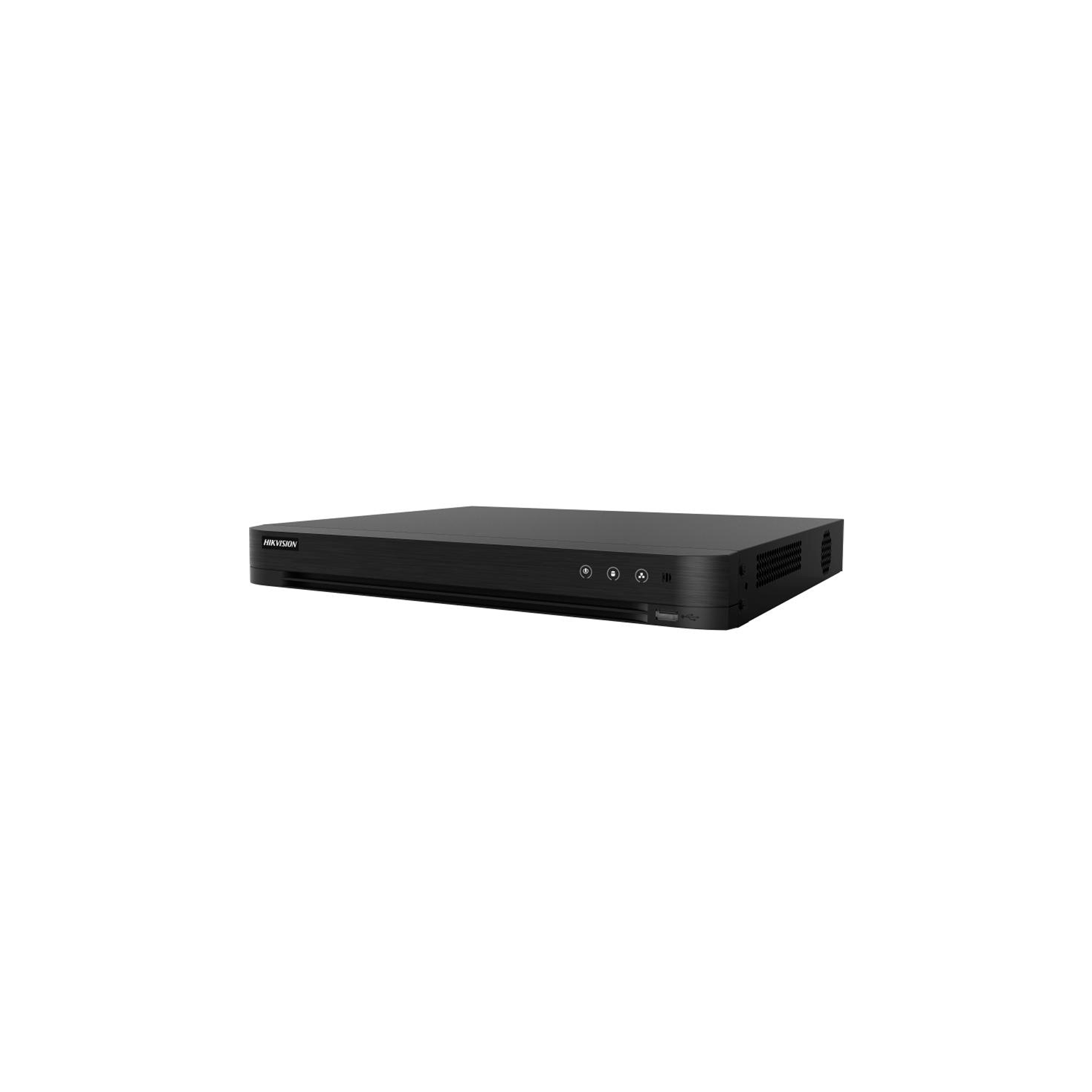

GRABADOR HD HIKVISION iDS-7208HQHI-M2/XT

Facial Recognition

Face Picture Comparison

Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)

Face Picture Library

Up to 16 face picture libraries

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Video and Audio

IP Video Input

4-ch (up to 12-ch), Up to 6 MP resolution

Analog Video Input

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input

5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input

3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

Audio Input

1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

8-ch

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network

Remote Connection

64

Total Bandwidth

96 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA

2 SATA interface, up to 10 TB capacity for each disk

Serial Interface

RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out

N/A (optional to support )

General

Power Supply

12 VDC, 2.5 A

Consumption

≤ 30 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)

Weight

≤ 1.78 kg (3.9 lb)
