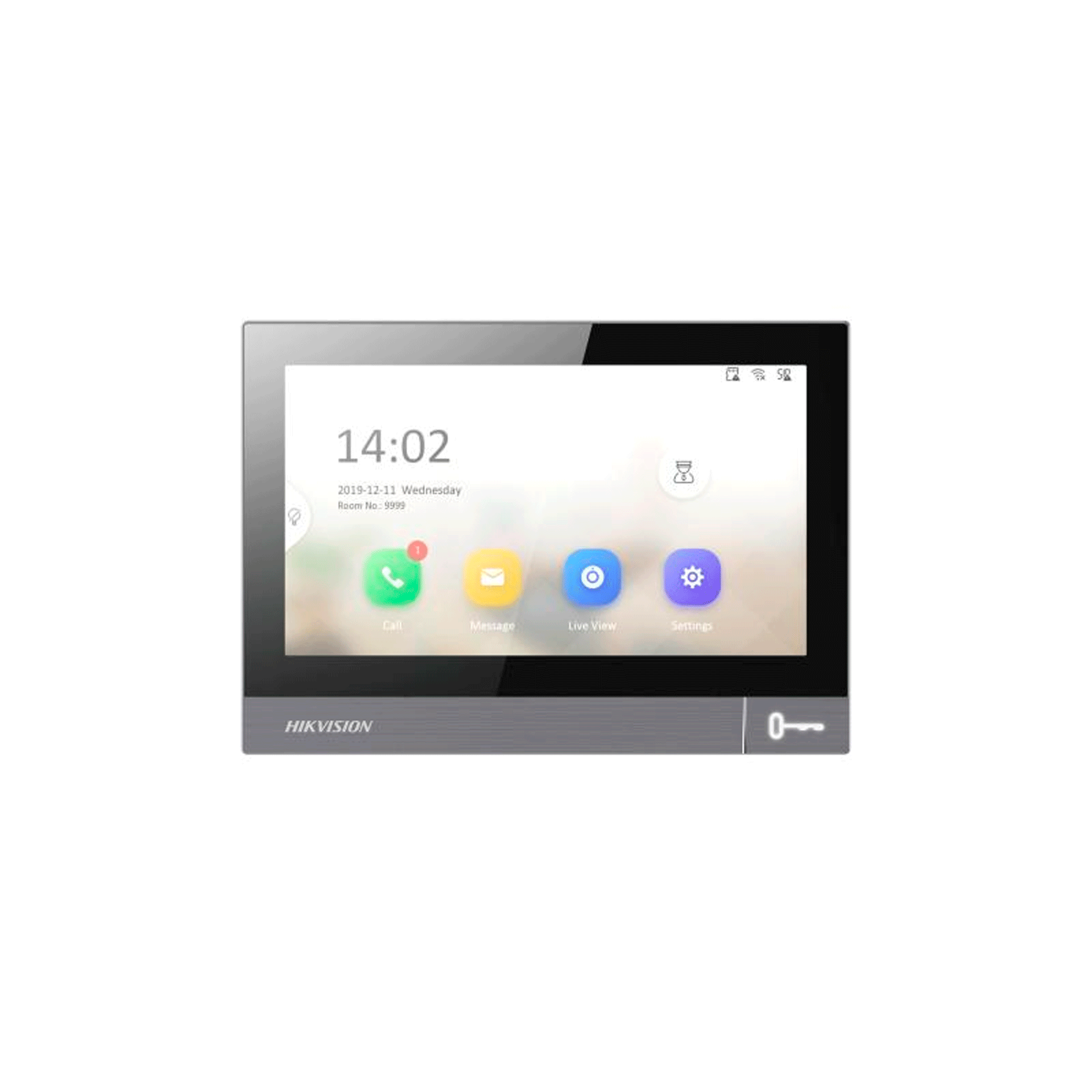

ESTACION DE INTERIOR HIKVISION DS-KH8381-WTE1/Flush

System parameters

Operation system

Embedded Linux operation system

ROM

32 MB

RAM

128 MB

Processor

Embedded high performance processor

Display parameters

Screen size

7-inch

Operation method

Capacitive touch screen

Type

Colorful IPS

Resolution

1024*600

Video parameters

Lens

/

Resolution

/

FOV

/

Wide dynamic range (WDR)

/

Video compression standard

H.265；H.264

Focal length

/

Audio parameters

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1

Audio output

1 built-in loudspeaker

Audio compression bitrate

16、32、64 Kps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

Message capacity

TF card inserted: 200 captured pictures, 200 alarm records

Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

Notice capacity

200

Linked network camera capacity

16

Linked indoor extensions capacity

16

Linked doorphone capacity

/

Network parameters

Network protocol

TCP/IP, SIP, RTSP

Wi-Fi

WiFi 802.11b/g/n

Wireless network

1 RJ-45 10/100Mbps self-adaptive

Bluetooth

/

3G/4G

/

Zigbee

/

Device interfaces

Alarm input

8

Network interface

1 RJ-45 10/100 Mbps self-adaptive

TAMPER

/

RS-485

1

USB

/

TF card

Support TF card, up to 128 G

Alarm output

/

Lock control

4 relays, Max. 30 VDC 1A

Power supply output

Max. 12 VDC 0.5 A

Debugging port

1

Relay

4

General

Button

1 physical button(s)

Installation

Flush mounting, surface mounting, table mounting

Indicator

/

Weight

Without package: 412.2 g (0.909 lb)

Protective level

/

Working temperature

-10 °C to 50 °C (14 °F to 122 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")

Battery

/

Power supply

IEEE802.3at, Standard PoE,12 VDC, 1.5 A

Application environment

Indoor

Power consumption

≤ 12 W

Language

English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

Material

Die-cast integrated aluminum alloy casing
