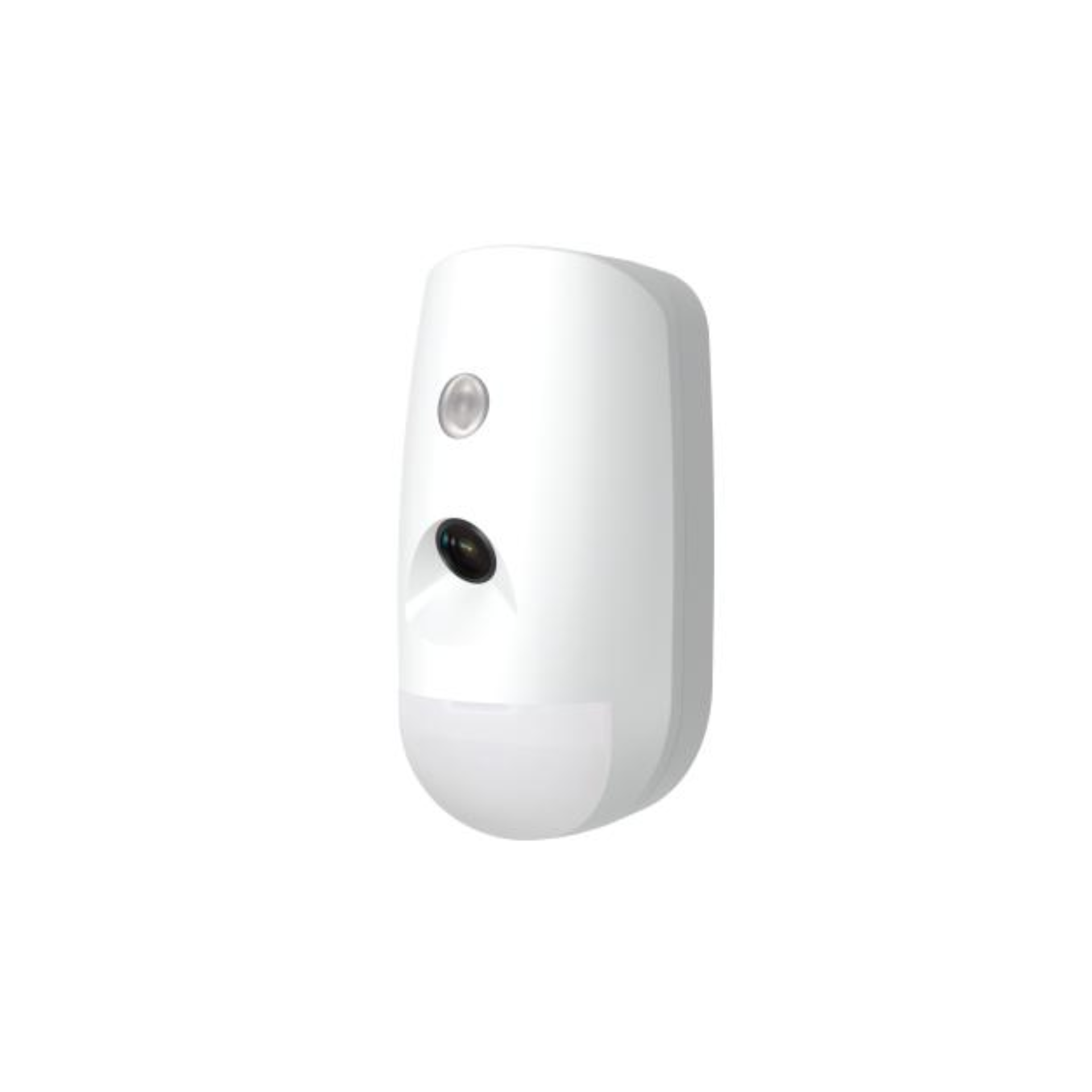

DETECTOR VOLUMETRICO HIKVISION DS-PD501PC12
Envío gratis*
*En compras superiores a 200€ en Península y Baleares.
Productos Bajo Pedido
Podemos suministrar cualquier producto sin stock.Consulta plazo.
Devoluciones
30 días para cambio odevoluciónde productos no usados.
Pagos 100% seguros
Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.
Detalles del producto
General |
||
Application scenario |
Indoor | |
Operation temperature |
-10°C to 40°C (14°F to 104°F) | |
Operation humidity |
10% ~ 90% noncondensing | |
Dimension (W×H×D) |
73 mm × 130.5 mm × 56.7 mm | |
Weight |
195 g | |
Bracket |
Optional Wall & Ceiling Accessory | |
Installation method |
Wall mount and Ceiling mount with bracket | |
Installation height |
1.8 m ~ 2.4 m, 2.1 m typical | |
Communication |
||
Transmission technology |
2-way encrypted communication, half-duplex, asynchronous, support bus-extender | |
Encryption |
AES-128 | |
Detection |
||
Detection method |
Passive infrared | |
Detection range |
12 m | |
Detection angle |
90° | |
Detection zones |
84 | |
Detectable speed |
0.3 ~ 2 m/s | |
Sensitivity |
Auto, High, Low | |
Pet immunity |
24 kg | |
White light filter |
6500 lux | |
Digital processing |
Support | |
Sealed optics |
Support | |
Video |
||
Field angle |
109°(H), 60°(V) | |
Day/Night mode |
Color / Black&White | |
Fill light |
Infrared Light | |
IR range |
12 m | |
Resolution |
1920×1080 1280×720 640×480 |
|
Image type |
JPEG | |
Electrical |
||
Power supply |
9 ~ 16 V ⎓ | |
Typical voltage |
12 V ⎓ | |
Power consumption |
Maximum: 100 mA @12VDC Quiescent: 70 mA @12VDC |
|
Hardware |
||
Tamper-Proof |
Front and Rear | |
Display |
||
LED indicator |
Blue (Alarm), Orange (Fault) | |
