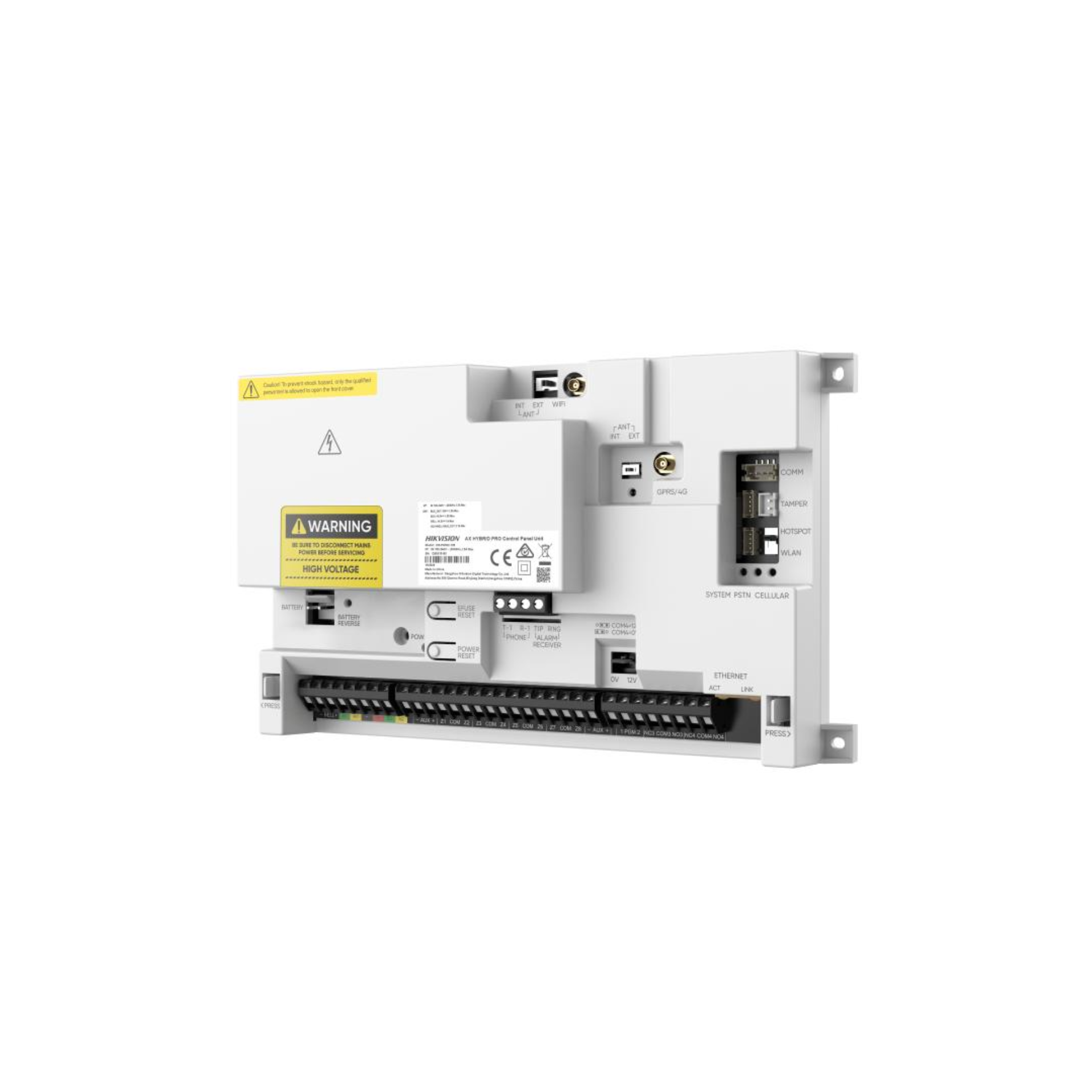

CENTRAL HIKVISION DS-PA502-64

General

Application scenario

Indoor

Operation temperature

-10°C to 40°C (14°F to 104°F)

Operation humidity

-20°C to 60°C (-4°F to 140°F)

Dimension (W×H×D)

261 × 199 × 86.4 mm

Weight

1030 g (without battery)

Capacity

Areas

32

Installer

1

Cloud installer

120

Admin

1

User

62 Operators

Wireless tags

64

Wireless keyfobs

64

Automation scenarios

256

Logs

4950 (incl. 1000 mandatory in flash memory)

Communication

Ethernet

10/100 Mbps self-adaptive

Wi-Fi

802.11b/g/n (2.4GHz)

Cellular

Compatible with DS-PC501G
DS-PC501S
DS-PC502S

Power

Mains power

~100-240V 50/60Hz, 0.3A

Power supply

15.3 V⎓ 2.5 A (0.5 A dedicated to battery)

Power consumption

130 mA @15V⎓ (quiescent current on battery)

Battery type

Rechargeable sealed lead-acid (not included)

Battery life span

Up to 12 hrs

Power outputs

1 AUX
1 BELL

Output voltage

14.5V⎓ nominal, 10.7-15 V⎓ with ripple 120 mV(VPP)

Output current

AUX: Up to 1.2A
BELL: Up to 1.0A (both eFuse protected)

Power PS Type

A

Device Management

PIR CAM

Up to 32

Alarm input

Up to 64

Alarm output

Up to 64

Keypad

Up to 8

Sounder output

12 (1 on-board)

Hardware

Tamper-Proof

1 tamper input

Bus

2 ports, 2-way encrypted, half-duplex
