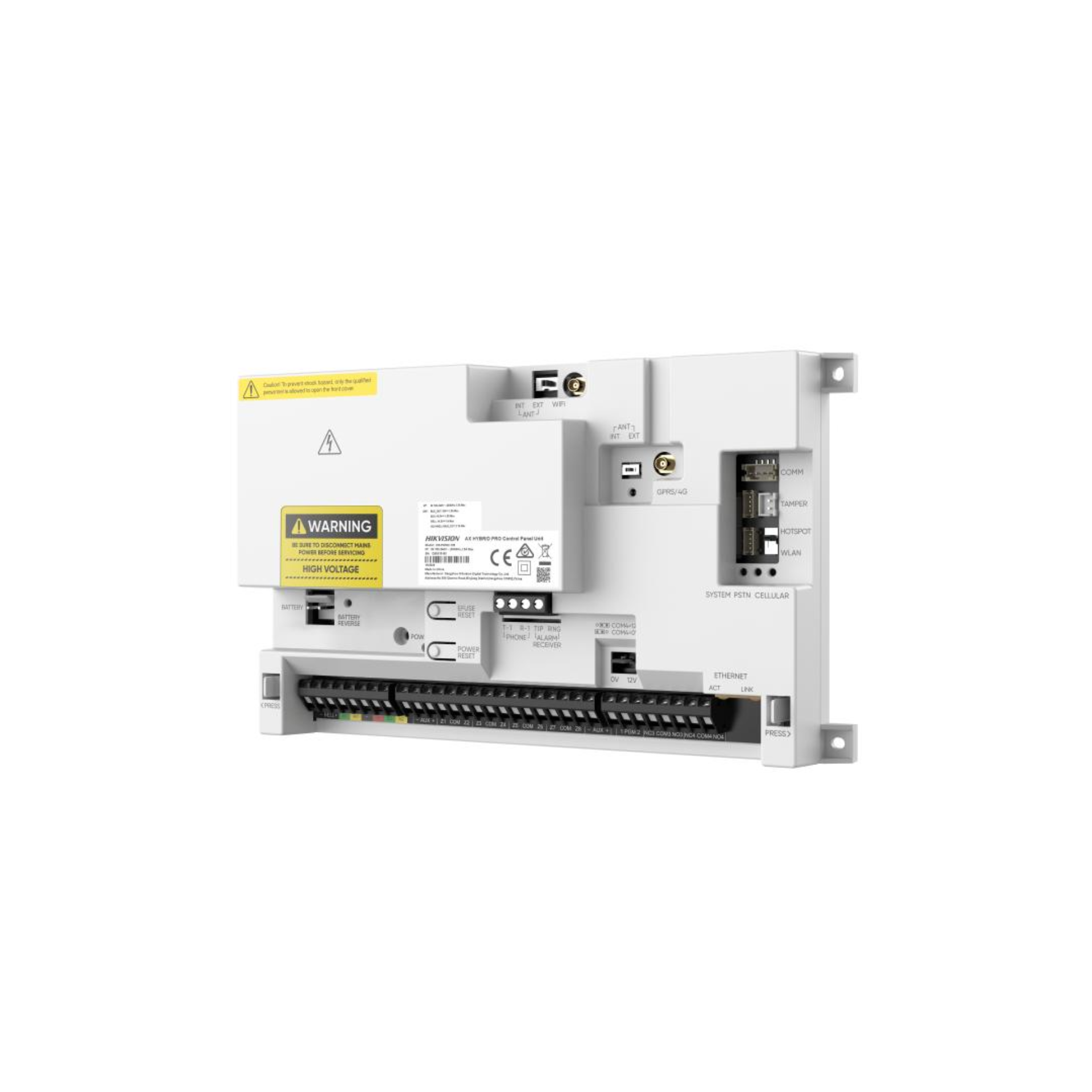

CENTRAL HIKVISION DS-PA502-128
Placa principal de AX Hybrid Pro, hasta 128 zonas, de Grado 2, incluye conexión IP y WiFi.
Envío gratis*
*En compras superiores a 200€ en Península y Baleares.
Productos Bajo Pedido
Podemos suministrar cualquier producto sin stock.Consulta plazo.
Devoluciones
30 días para cambio odevoluciónde productos no usados.
Pagos 100% seguros
Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.
Detalles del producto
General |
||
Application scenario |
Indoor | |
Operation temperature |
-10°C to 55°C (14°F to 131°F) | |
Operation humidity |
10% ~ 90% | |
Dimension (W×H×D) |
261 × 199 × 86.4 mm | |
Weight |
488 g (without battery) | |
Capacity |
||
Areas |
64 | |
Installer |
1 | |
Cloud installer |
120 | |
Admin |
1 | |
User |
198 Operators | |
Wireless tags |
200 | |
Wireless keyfobs |
200 | |
Automation scenarios |
256 | |
Logs |
4950 (incl. 1000 mandatory in flash memory) | |
Wireless zones |
up to 128 (shared with wired) | |
Wired zones |
up to 128 (shared with wireless), 8 onboard | |
Communication |
||
Ethernet |
10/100 Mbps self-adaptive | |
Wi-Fi |
802.11b/g/n (2.4GHz) | |
Cellular |
Compatible with DS-PC501G DS-PC501S DS-PC502S |
|
Power |
||
Mains power |
~100-240V 50/60Hz, 0.3A | |
Power supply |
15.3 V⎓ 2.5 A (0.5 A dedicated to battery) | |
Power consumption |
130 mA @15V⎓ (quiescent current on battery) | |
Battery type |
Rechargeable sealed lead-acid (not included) | |
Battery life span |
Up to 12 hrs | |
Power outputs |
1 AUX 1 BELL |
|
Output voltage |
14.5V⎓ nominal, 10.7-15 V⎓ with ripple 120 mV(VPP) | |
Output current |
AUX: Up to 1.2A BELL: Up to 1.0A (both eFuse protected) |
|
Power PS Type |
A | |
Device Management |
||
PIR CAM |
Up to 48 | |
Alarm input |
Up to 128 | |
Alarm output |
Up to 128 | |
Keypad |
Up to 12 | |
Sounder output |
16 (1 on-board) | |
Hardware |
||
Tamper-Proof |
1 tamper input | |
Bus |
2 ports, 2-way encrypted, half-duplex | |
