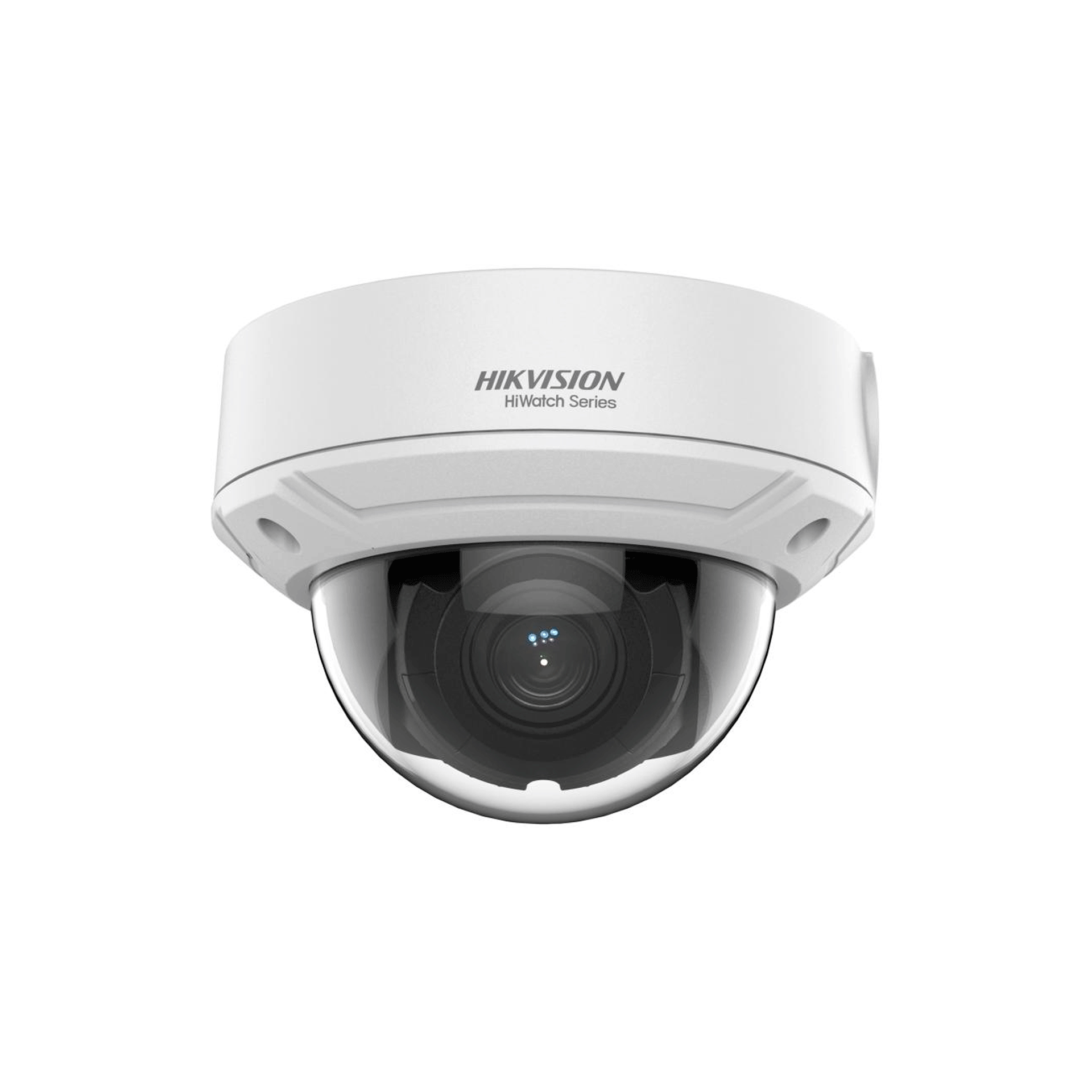

CAMARA IP HIKVISION HWI-D620HA-Z(2.8-12mm)

Cámara

• Sensor de imagen 1/2.9" Progressive Scan CMOS

• Max. Resolución 1920 × 1080

• Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

• Tiempo de obturación 1/3 s to 1/100,000 s

• Día y Noche IR cut filter

• Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Lente

• Lente Varifocal lens, motorized lens, 2.8 to 12 mm

• Focal Length & FOV 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°

• Montura del lente Ø14

• Iris Type Fixed

• Apertura F1.6

Iluminador

• Tipo de luz suplementaria IR

• Rango de luz suplementaria Up to 30 m

• Luz de suplemento inteligente Yes

• IR Wavelength 850 nm

Vídeo

• Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

• Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

• Vídeo bitrate 32 Kbps to 8 Mbps

• Tipo H.264 Baseline Profile,Main Profile,High Profile

• Tipo H.265 Main Profile

• Región de interés (ROI) 1 fixed region(s) for main stream

Red

• Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

• Vista en vivo simultánea Up to 6 channels

• API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

• Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

• Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user

• Cliente iVMS-4200,Hik-Connect

• Navegador web Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Interruptor día/noche Day,Night,Auto,Schedule

• Wide Dynamic Range (WDR) Digital WDR

• Mejora de la imagen BLC,HLC,3D DNR

Interfaz

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB

• Reset Key Yes

Evento

• Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• alimentación 12 VDC ± 25%, 0.8 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W

• Material Metal

• Dimensión Ø141 mm × 99 mm (Ø5.6" × 3.9")

• Dimensión del paquete 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")

• Approx. 820 g (1.8 lb.)

• Con peso del paquete Approx. 1200 g (2.6 lb.)

• Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Idioma English, Ukrainian

• Función general Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark

Certificaciones

• EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• Seguridad CE-LVD: EN 62368-1: 2014/A11: 2017

• Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protección IP67: IEC 60529-2013,IK10: IEC 62262:2002
