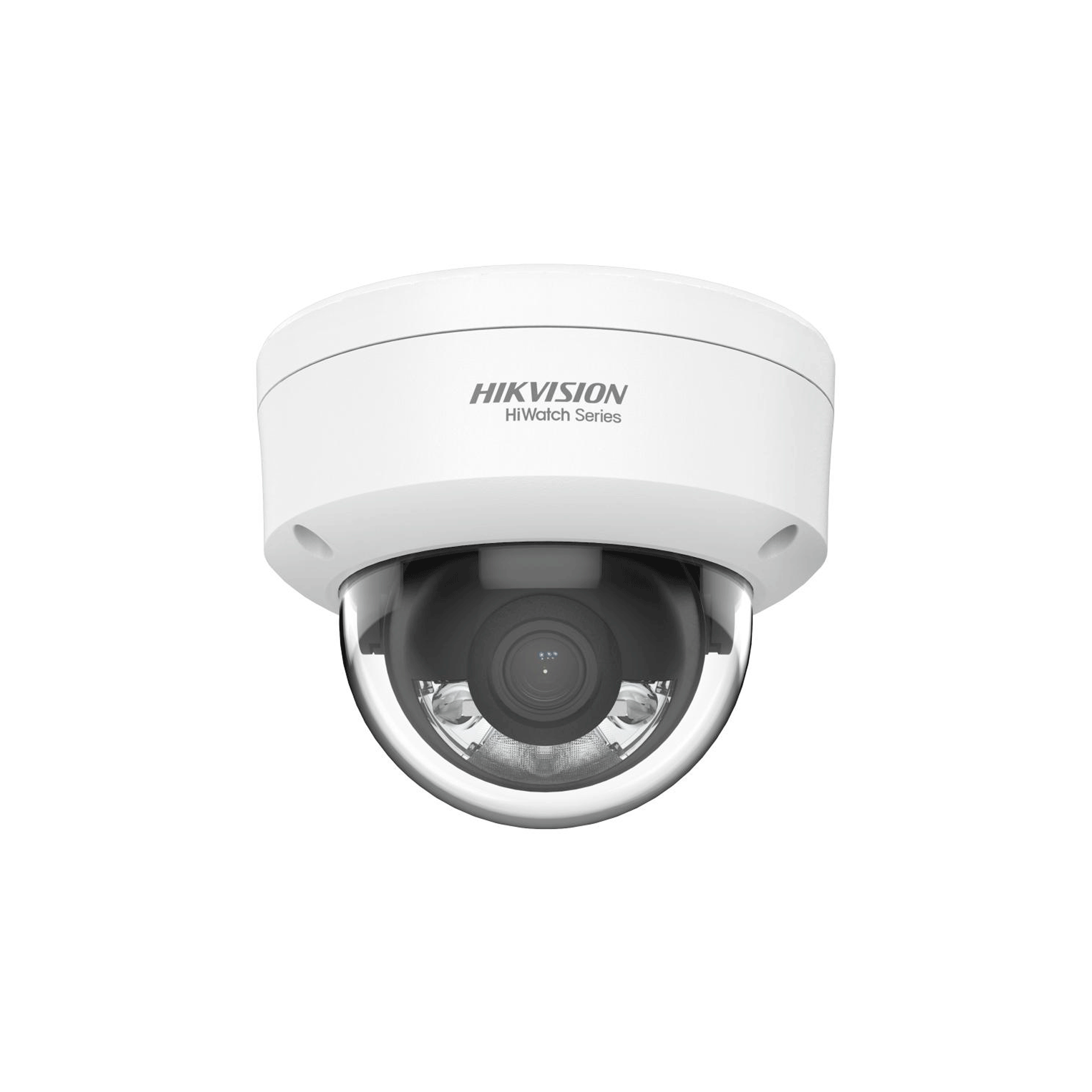

CAMARA IP HIKVISION HWI-D149HA(2.8mm)

Cámara

• Sensor de imagen 1/3" Progressive Scan CMOS

• Max. Resolución 2560 × 1440

• Iluminación mínima Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

• Tiempo de obturación 1/3 s to 1/100,000 s

• Día y Noche 24/7 color imaging

• Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lente

• Lente Fixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°

• Montura del lente M12

• Iris Type Fixed

• Apertura F1.0

• Depth of Field 2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞

DORI

• DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Iluminador

• Tipo de luz suplementaria White Light

• Rango de luz suplementaria Up to 30 m

• Luz de suplemento inteligente Yes

Vídeo

• Main stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)

• Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

• Vídeo bitrate 32 Kbps to 8 Mbps

• Tipo H.264 Baseline Profile,Main Profile,High Profile

• Tipo H.265 Main Profile

• Bit Rate Control CBR,VBR

• Región de interés (ROI) 1 fixed region(s) for main stream

Red

• Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

• Vista en vivo simultánea Up to 6 channels

• API Open Network Video Interface (Profile S, Profile T),ISAPI,SDK

• Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

• Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user

• Cliente iVMS-4200,Hik-Connect

• Navegador web Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Wide Dynamic Range (WDR) 120 dB

• SNR ≥ 52 dB

• Interruptor día/noche Day,Night,Auto,Schedule

• Mejora de la imagen BLC,HLC,3D DNR

• Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Máscara de privacidad 4 programmable polygon privacy masks

Interfaz

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento

• Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Linkage Upload to FTP, send email, notify surveillance center, trigger capture

General

• alimentación 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.15 A to 0.2 A, max. 6.5 W

• Material Base: aluminum alloy, cover: plastic

• Dimensión Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")

• Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.9")

• Approx. 500 g (1.1 lb.)

• Con peso del paquete Approx. 700 g (1.5 lb.)

• Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Idioma English, Ukrainian

• Función general Heartbeat,anti-banding,password protection,password reset via email

Certificaciones

• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• Seguridad CE-LVD: EN 62368-1: 2014/A11: 2017

• Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protección IP67: IEC 60529-2013;IK08: IEC 62262:2002
