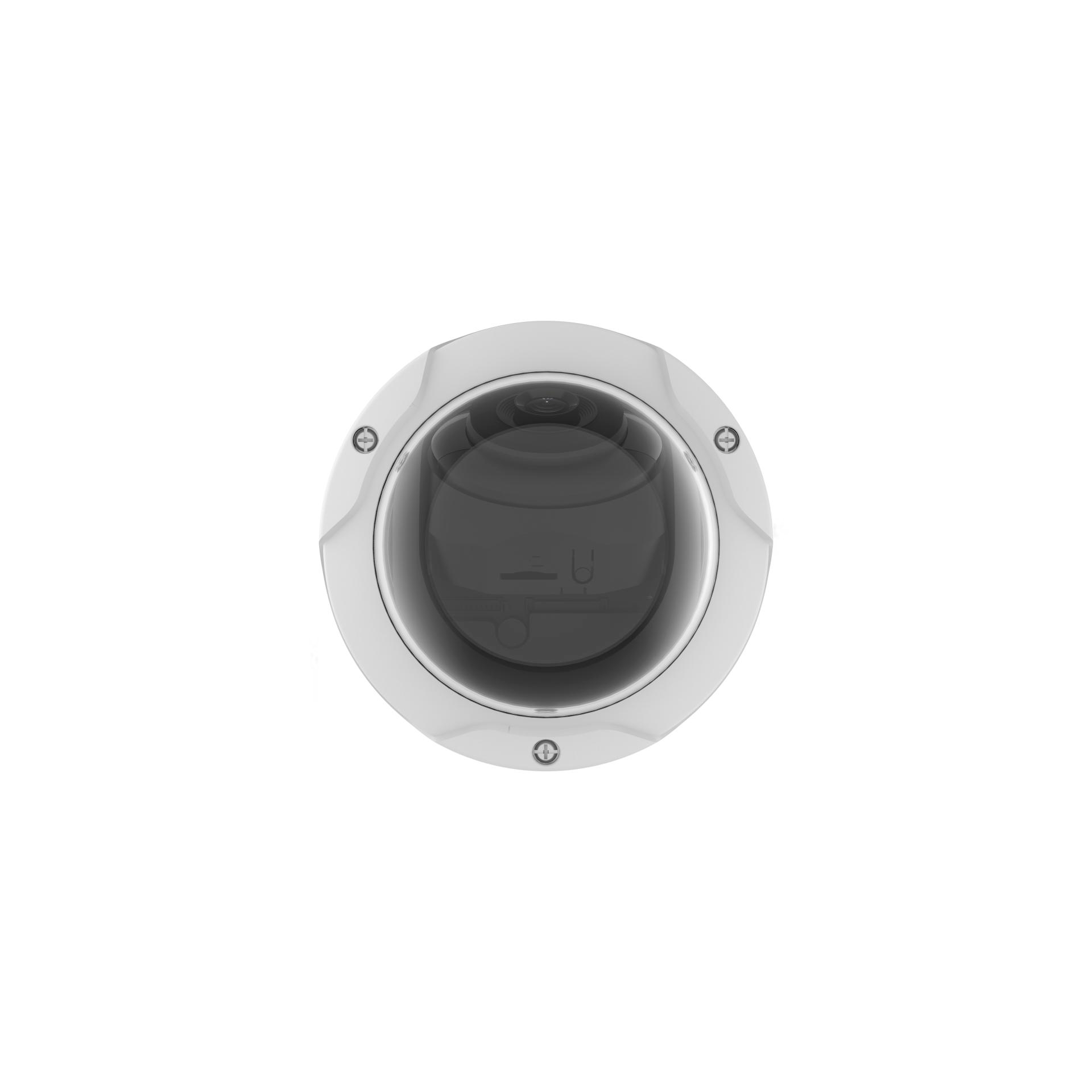

CAMARA IP HIKVISION HWI-D140HA(2.8mm)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°

Lens

lens type

Fixed focal lens, 2.8 and 4 mm optional

focal length & fov

2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°

lens mount

M12

iris type

Fixed

aperture

F2.0

DORI

DORI

2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP, send email, notify surveillance center, trigger capture

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø110.8 mm × 84.7 mm (4.4" × 3.3")

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Weight

Approx. 520 g (1.1 lb.)

With Package Weight

Approx. 720 g (1.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

Safety

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013, IK10: IEC 62262:2002
