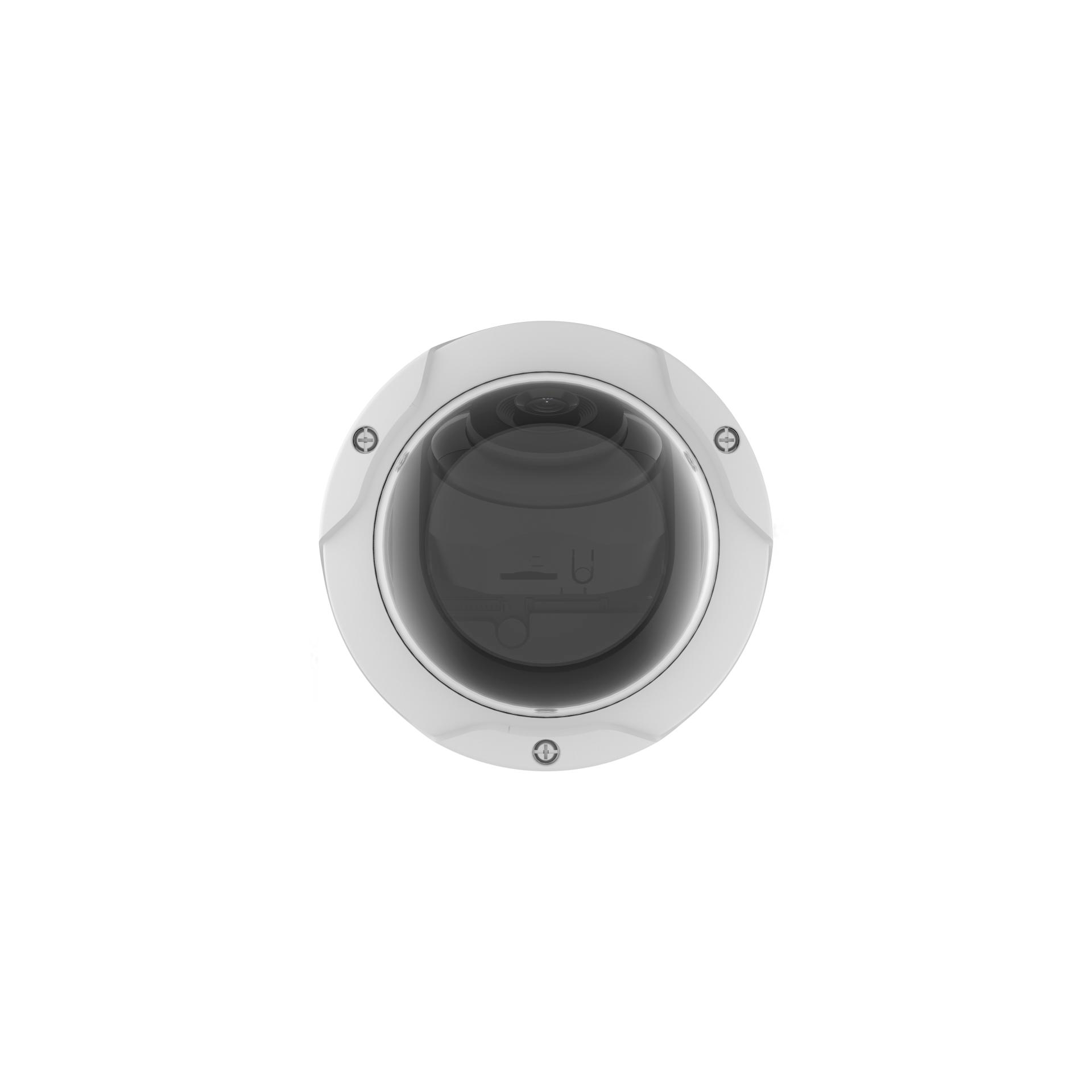

CAMARA IP HIKVISION HWI-D120HA(2.8mm)

Microphone

Type

1/2.9" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Shutter Time

1/3 s to 1/100,000 s

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Sensitivity

-32 dB

SNR

Pan: 0° to 355°, tilt: 0° to 75°

Lens

Sampling Rate

Fixed focal lens, 2.8 and 4 mm optional

Dynamic Range

2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°

lens mount

M12

iris type

Fixed

aperture

F2.0

DORI

Weight

2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Operating Condition

-10 ℃ to 50 ℃ (14 °F to 122°F) (indoor)

Dimension

Ø85 mm × 20.48 mm (Ø3.35" × 0.81")

Packing List

Device × 1 Regulatory Compliance and Safety Information × 1

Installation

Ceiling mounting, wall mounting, desktop mounting

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP, notify surveillance center, trigger capture, send email

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø110.8 mm × 84.7 mm (4.4" × 3.3")

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Weight

Approx. 520 g (1.1 lb.)

With Package Weight

Approx. 720 g (1.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014

Safety

CE-LVD: EN 62368-1:2014/A11:2017

Environment

CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013, IK10: IEC 62262:2002
