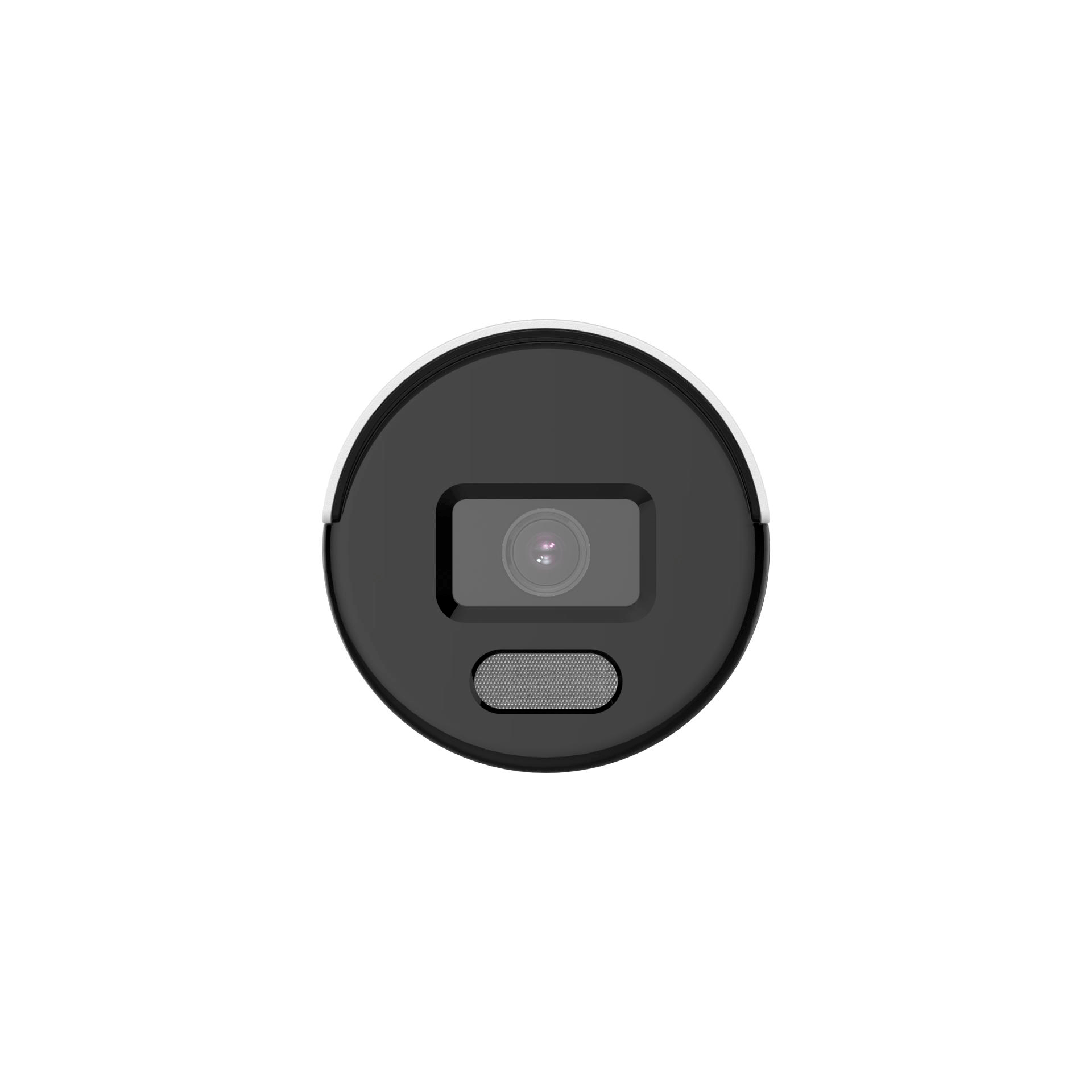

CAMARA IP HIKVISION HWI-B149HA(2.8mm)

340178303

Cámara Bullet, resolución 4MP, lente Fija, óptica 2. 8mm, Luz blanca 30m, WDR, IP67, sensibilidad 0.001 Lux, PoE, ColorVu, Motion Detection 2.0, Clasificación humano-vehículo, Sin Wifi, No soporta memoria SD

En stock, envío en 24/48h.

Iniciar sesión para ver precios

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

CAMARA IP HIKVISION HWI-B149HA(2.8mm)

Specification

Camera	Image Sensor	1/3" Progressive Scan CMOS
	Max. Resolution	2560 × 1440
	Day & Night	24/7 color imaging
	Min. Illumination	Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
	Shutter Time	1/3 s to 1/100,000 s
	Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens	lens type	Fixed focal lens, 2.8 and 4 mm optional
	focal length & fov	2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
	lens mount	M12
	iris type	Fixed
	aperture	F1.0
	depth of field	2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞
DORI	DORI	2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
Illuminator	Supplement Light Type	White Light
	Supplement Light Range	Up to 30 m
	Smart Supplement Light	Yes
Video	Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
	Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
	Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 8 Mbps
	H.264 Type	Baseline Profile, Main Profile, High Profile
	H.265 Type	Main Profile
	Bit Rate Control	CBR,VBR
	Region of Interest (ROI)	1 fixed region(s) for main stream
Network	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
	Simultaneous Live View	Up to 6 channels
	API	Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
	Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
	User/Host	Up to 32 users 3 user levels: administrator, operator, and user
	Client	iVMS-4200, Hik-Connect
	Web Browser	Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Image	Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
	Day/Night Switch	Day, Night, Auto, Schedule
	Wide Dynamic Range (WDR)	120 dB
	SNR	≥ 52 dB
	Image Enhancement	BLC, HLC, 3D DNR
	Privacy Mask	4 programmable polygon privacy masks
Interface	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Event	Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Event	Linkage	Upload to FTP,send email,notify surveillance center,trigger capture
General	Power	12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 6.5 W
	Material	Aluminum alloy body
	Dimension	Ø76.6 mm × 164.4 mm (Ø3" × 6.5")
	Package Dimension	234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
	Weight	Approx. 420 g (0.9 lb.)
	With Package Weight	Approx. 630 g (1.4 lb.)
	Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Language	English, Ukrainian
	General Function	Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval	EMC	CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014
	Safety	CE-LVD: EN 62368-1:2014/A11:2017
	Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
	Protection	IP67: IEC 60529-2013

Structure & Dimension Diagram

Parámetros principales

Modelo del producto

HWI-B149HA(2.8mm)

Alarma Cámara

Cámara sin Alarma

Audio

N/A Audio

Lente

Fija

Óptica

2.8mm

Protección Cámaras

IP67

Tipo de cámara

Bullet

Utilidad de la cámara

Día y noche

Sensibilidad Lumínica

0.001 Lux

Iluminación

Luz blanca 30m

Tarjeta SD

No Soporta SD

WDR

Wifi

Sin Wifi

Soporte a Pared

N/A

Soporte a Techo

N/A

Soporte a Esquina

N/A

Soporte a Poste

N/A

Soporte Colgante

N/A

Soporte a prueba de agua

N/A

Caja de conexiones

DS-1280ZJ-XS

Otros Soportes

N/A

Funciones Inteligentes

ColorVu, Motion detection, Clasificación humano-vehículo

PoE / PoC

PoE

Resolución

4MP

Tecnología

Marca

Hiwatch

Descargas

Datasheet_HWI-B149HA(2.8mm)_340178303

Manual_HWI-B149HA(2.8mm)_340178303
