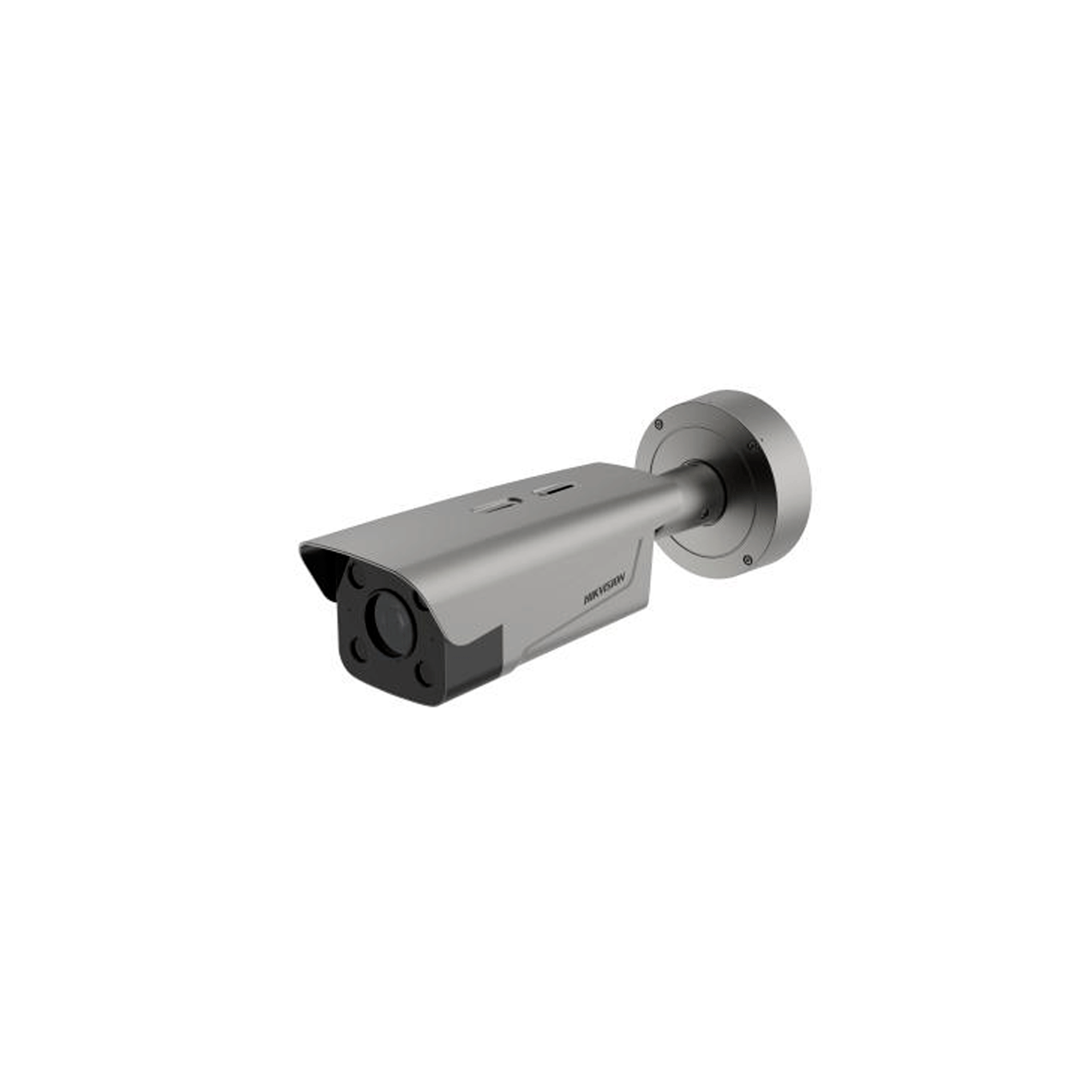

CAMARA IP HIKVISION DS-TCG406-E(12V/PoE)(2812)

Camera

Max. Resolution

2688 × 1520

Sensor Type

1/1.8" Progressive Scan CMOS

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR

Shutter

1/30 s to 1/100,000 s

Day/Night Switch

Supported

IR Cut Filter

IR cut filter Blue glass module to reduce ghost phenomenon

Lens

lens type

2.8 to 12 mm 8 to 32 mm

aperture

2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73

focal length & fov

2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3°

focus

Auto，Vari-focal lens, motor-driven lens

Supplement Light

Supplement Light Type

IR Light, Warm White Light

Supplement Light Range

Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m

IR Wavelength

Warm White Light 3000 K, IR Light 850 nm


WDR

140 dB

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Image Settings

Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.

Image Parameters Switch

Yes

WDR Switch

On, Time, Brightness

Frame Rate

25 fps (P)/30 fps (N)

Video

ROI

8 regions respectively for main stream and sub-stream, 6 levels for each region.

Video Compression

Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,

H.264 Type

Low profile Medium profile High Profile

Video Bit Rate

32 Kbps to 16 Mbps

Bit Rate Type

Constant, Variable

Scalable Video Coding (SVC)

H.265 and H.264 encoding

Capture Mode

Trigger Type

Video Detection, I/O Coil, Radar Mixed Traffic

Picture Type

Scene Picture, Scene Picture + Close-up Picture

Scene Mode

Entrance & Exit Toll Gate, Underground Parking Entrance & Exit

Capture Type

Strobe Light Mode

Capture Parameters

Image Format

JPEG

Capture Resolution

2688 × 1520

License Plate Recognition

Forward, Backward, Bidirection

LED Control

Supports automatic light control/time control of LEDs

Smart Recognition

ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition

Capture Picture Overlay

Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

Entrance and Exit

Barrier Gate Control Mode

By Camera/Platform/Mixed

Keep Boom Pole Open for Following Vehicle

Enable/Disable

Lock Barrier Gate for Large-Sized Vehicle

Yes

Relay Output

2-ch relay output, supporting opening and closing of barrier gates

Barrier Gate Status

None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place

Allowlist and Blocklist

Up to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect.

Network

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform

Client

Hik-Connect, Hik-Central，SDKdemo，PMS

Web Browser

Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+

Security

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Interface

Audio

1 input (line in), 1 output (line out)

Alarm Input

3-ch triggered inputs

Alarm Output

1-ch alarm output

Wiegand

Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit

RS-232

1-ch RS-485 serial port

RS-485

1-ch RS-232 serial port

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Memory Card Slot

1 TF card slot, up to 1 TB

Smart Function

LPR Accuracy

Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%

Vehicle Type Recognition

Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle

Vehicle Color

Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black

Vehicle Brand

ANPR Supported Country/Region

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015)

Security

CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

General

Power Supply

12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA

Working Consumption
