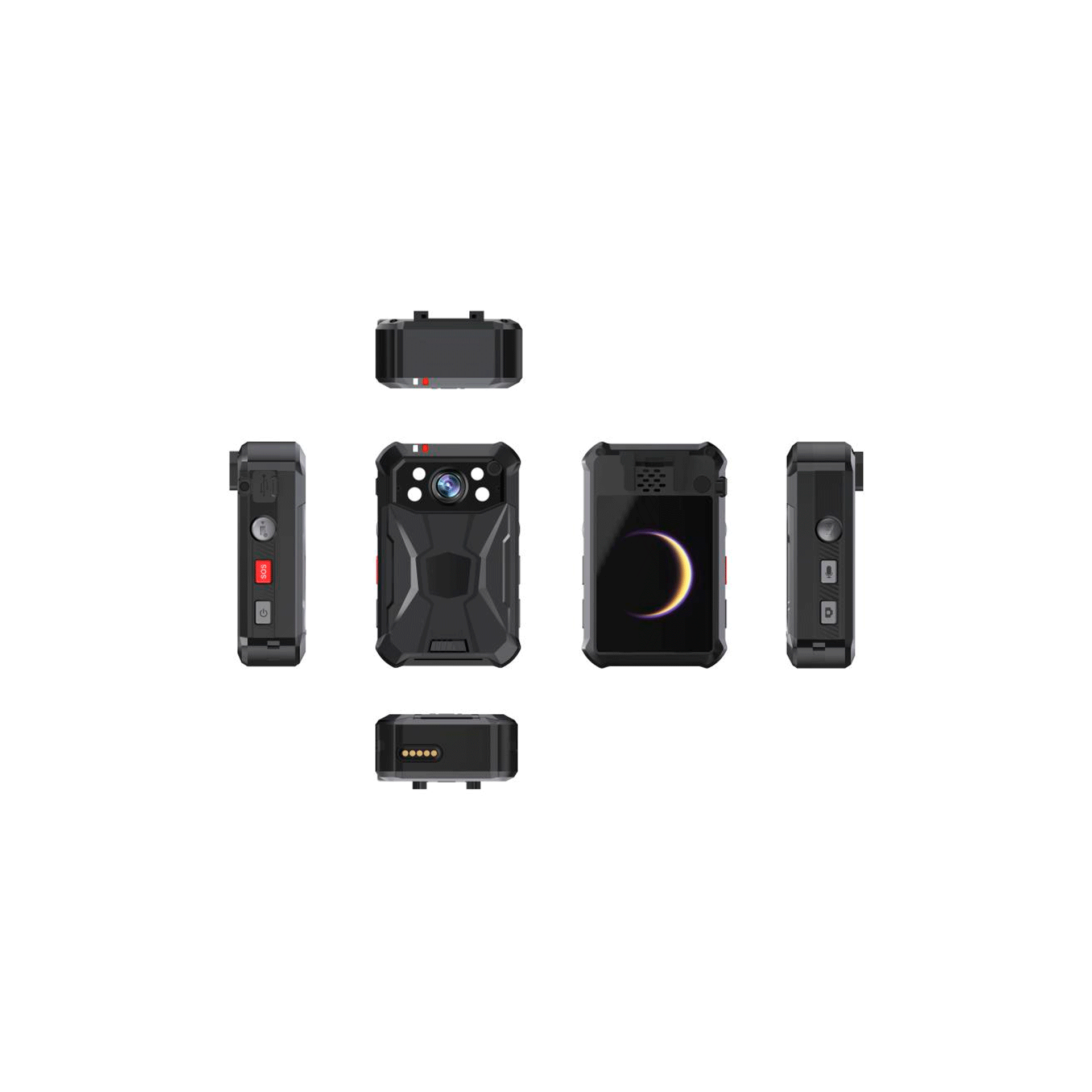

CAMARA IP HIKVISION DS-MCW409/32G/GLE(C)(O-STD)

CPU

CPU

8 cores, 64 bit, Main frequency: 1.8 GHz

Camera

Image Sensor

1/3" progressive scan CMOS

Max. Recording Resolution

2688 × 1512

Min. Illumination

Color: 0.11 Lux @ (F22, AGC ON), 0 Lux with supplement light

White Light

Supported

Day & Night

Switch IR cut filter automatically

Lens

Focal Length

2.4 mm fixed lens

FOV

Horizontal FOV: 132°, Vertical FOV: 72°, Diagonal FOV: 148°

Aperture

F2.2

Video

Sub-Stream

30 fps (1280 × 720, 720 × 576)

Video Format

MP4,PS

Pre-record & Post-record

Pre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s

Video Compression

H.264,H.265

Main Stream

60 Hz: 30 fps / 15 fps / 5fps (2688 × 1512, 1920 × 1080, 1280 × 720, 720 × 576)

Audio

Audio Bit Rate

G722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)

Audio Compression for Video Recording

AAC,G722

Audio Compression for Audio Recording

PCM

Audio Compression for Group Intercom

G711.A,G711.U,G722


Image Format

JPEG

Resolution

40 M (8832 × 4960),30 M (7296 × 4104),16 M (5312 × 2988),5 M (3072 × 1728)

Image Stabilization Algorithm

Image Stabilization Algorithm

GIS: Optional

Screen

Screen Size

2.4"

Touchscreen

Supported

Display Resolution

320 × 240

Screen Brightness

Typical value: 540 cd/m²

Storage

RAM

2 GB

ROM

32 GB by default, 64/128/256 GB optional

IR

IR Range

Up to 10 m,Illumination range greater than 90%

IR Wavelength

850 nm

Wireless Network

Wi-Fi Protocol

802.11 a/b/g/n/ac

Positioning Mode

GPS

Wi-Fi Frequency Band

2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz

Bluetooth

BT4.0

Cellular Network

GSM: 850/900/1800/1900,WCDMA: B1/B2/B4/B5/B8, FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28, TDD-LTE: B38/B39/B40/B41

NFC

Optional

Network

Protocol

HTTPS, RTSP, NTP, FTP

API

ISAPI,SDK,ISUP

Security

Encryption

AES128, AES256

Watermark

Supported

Interface

USB

1 USB 2.0 port(s)

SIM Card

1 Nano-SIM card(s)

Charging Interface

Type-C, Pogo Pin

Indicator

2 indicator(s) for charging/working/recording/exception

Button

Power,Video recording,PTT,SOS,Picture capture,Audio recording

Laser Positioning

Supported

Audio Type

2 built-in mic(s),1 speaker(s)

Smart Functions

Face Picture Capture

Supported

Face Picture Recognition

Optional

License Plate Recognition

Optional

Event

Basic Event

SOS alarm

Group Intercom

Group Intercom

Supported for firmware version V2.6.0 or above

General

Power

5 VDC, 2.0 A, max. 10 W

Weight

194.5 g (without mounting) (0.4 lb.)

Dimensions

92.8 mm × 59.7 mm × 28.5 mm (3.7" × 2.4" × 1")

Speaker

1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 95 dB (10 cm)

Client

HikCentral Pro,HikCentral Master

Operating System

Android 9.0

Operating Condition

-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)

Vibration Motor

Not supported

Gyroscope

Optional

Battery

Charging Time

≤ 4 h

Capacity

3300 mAh

Battery Type

Lithium-ion battery, dismountable

Battery Life

Up to 12h in 720p resolution¹

Embedded Sub-Battery

50 mAh,Models with SE are not supported.

Approval

Protection

IP68: IEC 60529-2013

RF

EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014),CE-RED: EN 300 330V2.1.1

Safety

CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017

EMC

CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014

Environment

CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: EN IEC63000:2018

Drop Test

Drop Test

MIL-STD-810G, 2 m drop test

Warranty

Warranty

2 years for the device without battery, 1 year for the battery
