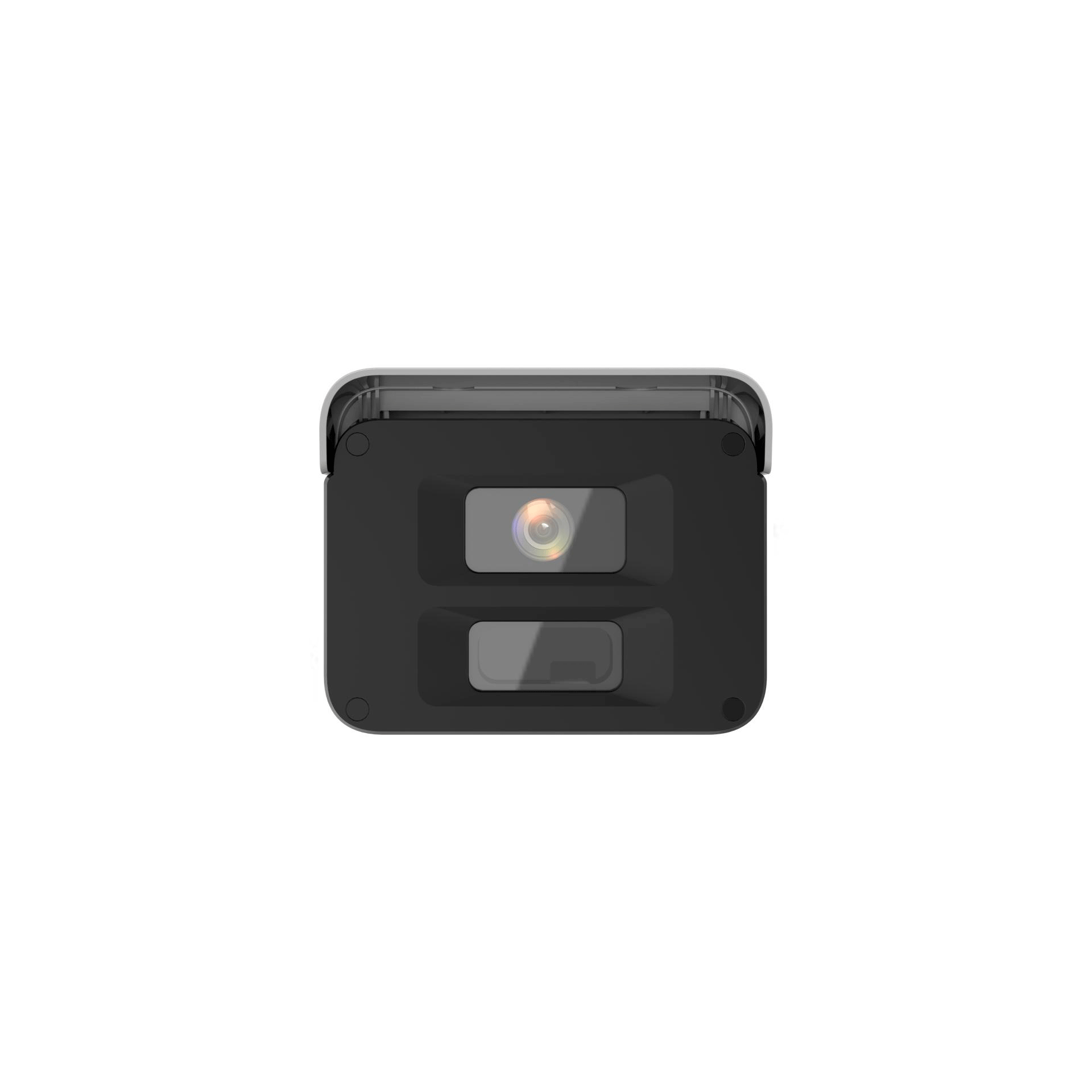

CAMARA IP HIKVISION DS-2XC6047G0-L(4mm)(PA)

Microphone

Type

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Shutter Time

1 s to 1/100,000 s

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

focal length & fov

2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84° 4 mm, horizontal FOV 75.79°, vertical FOV 40.84°, diagonal FOV 89.13° 6 mm, horizontal FOV 49.91°, vertical FOV 27.43°, diagonal FOV 57.82,

iris type

Fixed

aperture

F1.0

DORI

DORI

2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m 4 mm: D: 82.0 m, O: 32.5 m, R: 16.4 m, I: 8.2 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

HEOP

Open Resources

Memory: 60 MB, Smart RAM: 350 MB, eMMC: 2 GB

Computing Power

1.5 TOPS

Deep Learning Structure

Caffe,PyTorch,TensorFlow

Programming Language

C,C++

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264 /H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.265 and H.264 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Target Cropping

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Type

Mono sound

Network

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger (-S)

Image Enhancement

BLC,HLC,3D DNR,Defog

Image Parameters Switch

Yes

SNR

≥ 50 dB

Privacy Mask

8 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 100 M Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory.

Audio

-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

-S: 1 input, 1 output (max. 12 VDC, 30 mA)

RS-485

-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

DC: 9 to 36 V, 0.8 A, max. 7.2 W, PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W

Material

Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12

Dimension

250.5 mm × 105.6 mm × 91.9 mm (9.86" × 4.16" × 3.62")

Package Dimension

315 mm × 137 mm × 141 mm (12.41" × 5.40" × 5.56")

Weight

Appox. 0.76 kg (1.68 lb.)

With Package Weight

Appox. 1.12 kg (2.47 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Safety

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
