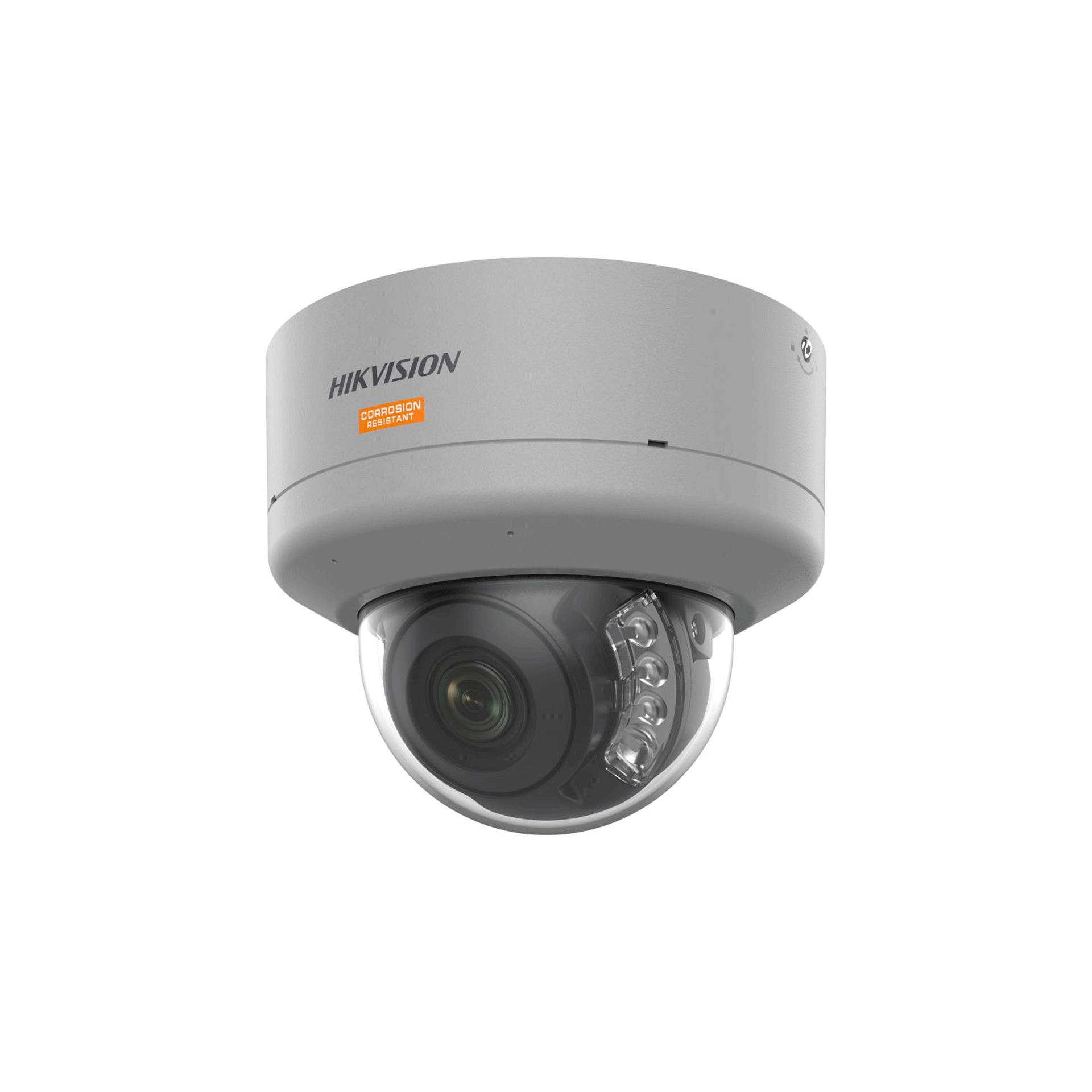

CAMARA IP HIKVISION DS-2XC3746G0H-LIZS(PA)(2.7-13.5mm)

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Remote adjustment (Max. 1000 cycles) Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°

Lens

lens type

Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional

focal length & fov

2.7 to 13.5 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 7 to 35 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°

lens mount

Integrated

focus

Auto,Semi-auto,Manual

iris type

DC iris

aperture

2.7 to 13.5 mm: Max. F1.2 7 to 35 mm: Max. F1.7

depth of field

1 m to ∞

DORI

DORI

2.7 to 13.5 mm: Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m 7 to 35 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400.0 m, O: 158.7 m, R: 80.0 m, I: 40.0 m

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

HEOP

Open Resources

Memory: 150 MB, Smart RAM: 371 MB, eMMC: 1 GB

Computing Power

1.5 TOPS

Open Capability

HEOP 2.0 OpendevSDK

Deep Learning Structure

Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX

Programming Language

C,C++,Go

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

5 fixed regions for main stream and sub-stream

Target Cropping

Yes

Audio

Audio Compression

-S/-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

-S/-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

-S/-U: 8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

-S/-U: Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP

Simultaneous Live View

Up to 20 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

130 dB

Image Enhancement

BLC,HLC,3D DNR,Defog

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB, The memory card needs to be installed before leaving the factory., *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Built-in Microphone

-U: Yes, 2 built-in microphones

Audio

-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

-S: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

RS-485

-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Power Output

12 VDC, max. 100 mA

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 1.33 A, max. 16 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21 W

Material

Base: SMC+ 30%GF, Cover: SMC+ 30%GF, Junction box: Anodized ADC12

Dimension

Ø154.9 mm × 128.53 mm (Ø6.10" × 5.06")

Package Dimension

206 mm × 206 mm × 230 mm (8.1" × 8.1" × 9.1")

Weight
