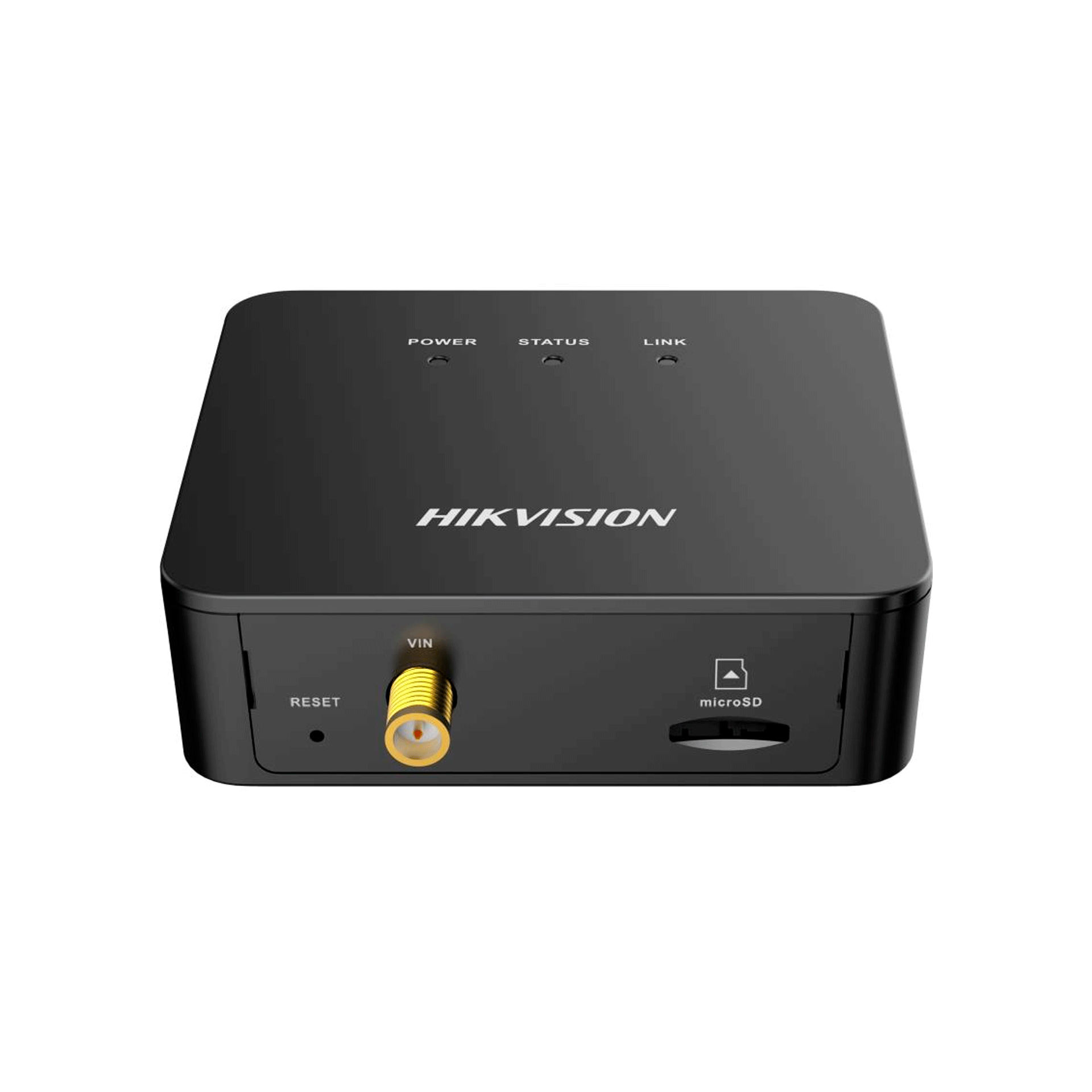

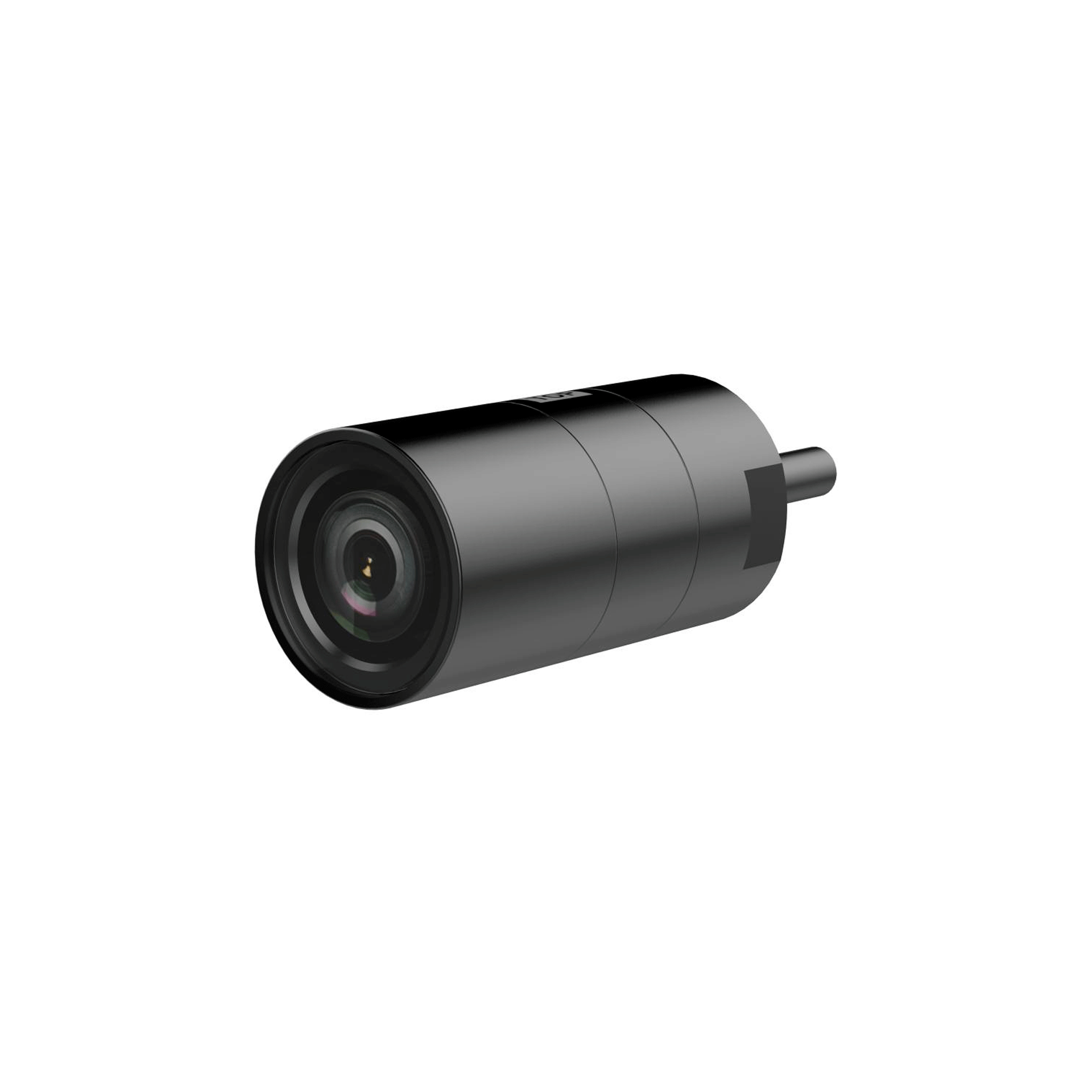

CAMARA IP HIKVISION DS-2CD6445G1-30(4mm)8m

Cámara

• Sensor de imagen1/3" Progressive Scan CMOS

• Max. Resolución2560 × 1440

• Iluminación mínimaColor: 0.005 Lux @ (F1.2, AGC ON)

• Tiempo de obturación1/3 s to 1/100,000 s

Lente

• Focal Length & FOV2.8 mm: horizontal FOV: 98°, vertical FOV: 53°, diagonal FOV: 115° 4 mm: horizontal FOV: 75°, vertical FOV: 41.5°, diagonal FOV: 88°

• Montura del lenteM12

• Iris TypeFixed

• Apertura2.8 mm: F2.0 4 mm: F2

DORI

• DORI2.8 mm: D: 62 m, O: 24.6 m, R: 12.4 m, I: 6.2 m 4 mm: D: 80 m, O: 31.7 m, R: 16 m, I: 8 m

Vídeo

• Main stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

• Compresión de videoMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

• Tipo H.264Baseline Profile/Main Profile/High Profile

• Tipo H.265Main Profile

• Bit Rate ControlCVR/BVR

• Codificación de video escalable (SVC)H.264 and H.265 encoding

• Región de interés (ROI)Support 1 fixed region for main stream

Audio

• Tipo de audioMono

• Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC

• Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)

• Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz

• Filtro de ruido ambientalYes

Red

• ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

• Vista en vivo simultáneaUp to 15 channels

• APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0

• Usuario/operadorUp to 32 users 3 level: administrator, operator, and user

• Almacenamiento en redNAS (NFS, SMB/CIFS)

• ClienteiVMS-4200, Hik-Connect

• Navegador webPlug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Interruptor de parámetros de imagenYes

• Configuración de imagenSaturation, brightness, contrast, and sharpness adjustable by client software or web browser

• Interruptor día/nocheDay, Night, Auto, Schedule

• Wide Dynamic Range (WDR)120 dB

• Mejora de la imagenBLC, HLC, defog, 3D DNR

• Máscara de privacidadYes

Interfaz

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB

• Audio1 input (line in), 1 output (line out)

• Alarma1 input, 1 output (max. 12 VDC, 30 mA)

• RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

• Reset KeyYes

Evento

• Evento BásicoMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis

• Evento inteligenteIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

• alimentación12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W

• DimensiónMain body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0") L30: Ø26 mm × 50 mm (Ø1.0" × 2.0")

• Dimensión del paqueteKit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1") Camera: 219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9")

• Main body: approx. 90 g (0.2 lb.) Camera: approx. 90 g (0.2 lb.)

• Con peso del paqueteMain body: approx. 456 g (1.0 lb.) Package (with 8 m cable): approx. 991 g (2.2 lb.) Package (with 2 m cable): approx. 776 g (1.7 lb.) Camera (with 8 m cable): approx. 676 g (1.5 lb.) Camear (with 2 m cable): approx. 451 g (1.0 lb.)

• Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Idioma18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese

• Función generalOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter

• Length of Lens Cable2 m (6.6 ft.) and 8 m (26.2 ft.) optional

Certificaciones

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

• SeguridadUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)

• AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
