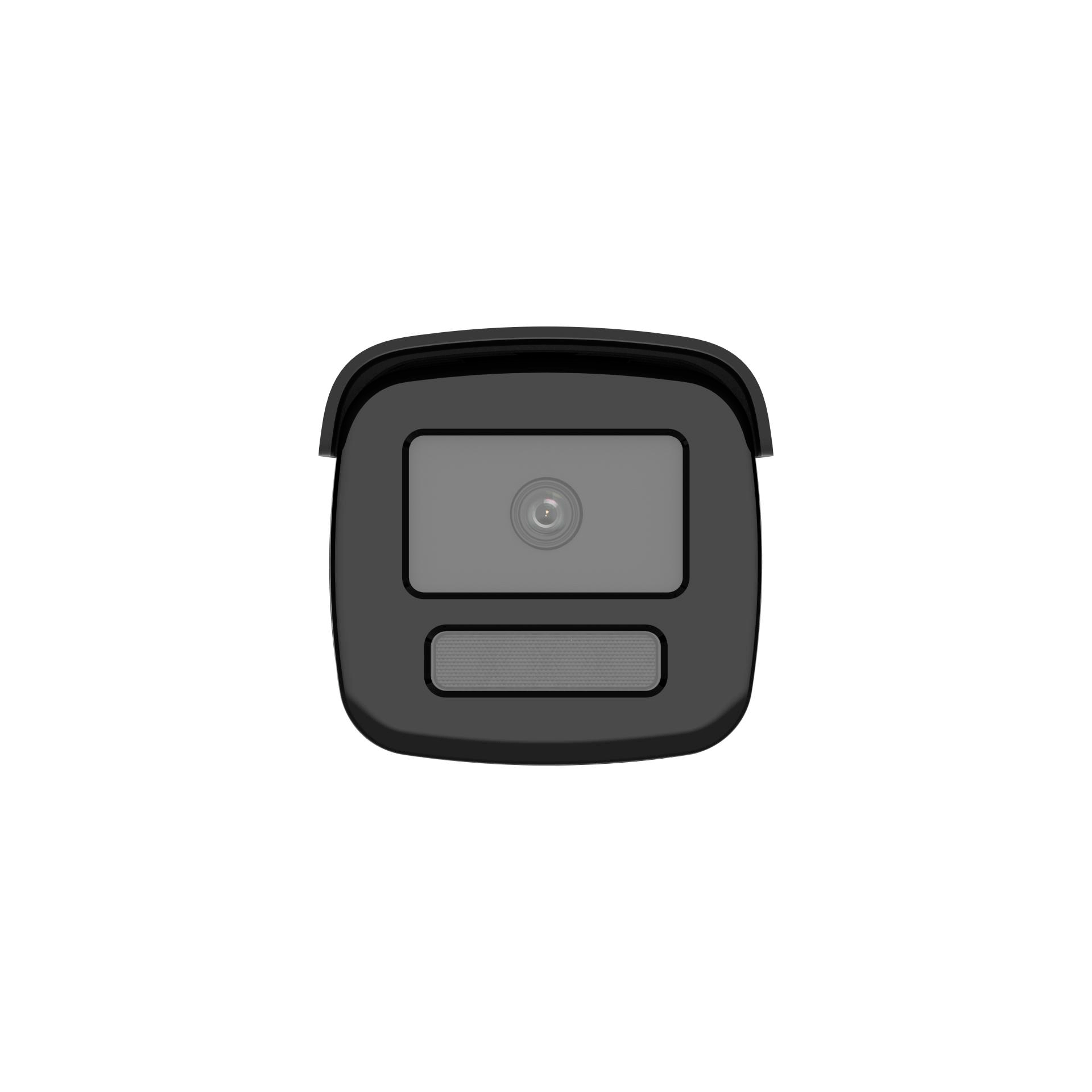

CAMARA IP HIKVISION DS-2CD2T86G2H-2I(2.8mm)(eF)/BLACK

340178208
project/star-square project/star-square project/star-square project/star-square project/star-square
Cámara Bullet, resolución 8MP, lente Fija, óptica 2. 8mm, IR 60m, IP67, sensibilidad 0.0008 Lux, PoE, Acusense, Clasificación humano-vehículo, Cruce de líneas, Darkfighter, Perímetro, No.
fill/circle Bajo pedido: Entrega en 7 días hábiles

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

caret-up caret-down
Bullet
Acusense
Darkfighter
Clasificación humano-vehículo
IR 60m
Fija
IP
PoE
IP67
WDR
SD
8MP

CÁMARA IP HIKVISION DS-2CD2T86G2H-2I(2.8mm)

  • Imágenes de alta calidad con resolución de 8 MP

  • Excelente rendimiento con poca luz gracias a la tecnología DarkFighter

  • Imágenes nítidas incluso con luz de fondo intensa gracias a la tecnología WDR de 120 dB

  • Tecnología de compresión eficiente H.265+

  • Centrarse en la clasificación de personas y vehículos basada en el aprendizaje profundo

  • Resistente al agua y al polvo (IP67)

Specification

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

lens type

Fixed focal lens, 2.8 and 4 mm optional

focal length & fov

2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° 4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°

lens mount

M16

iris type

Fixed

aperture

F1.0

depth of field

2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞

DORI

DORI

2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

2I: up to 60 m; 4I: up to 80 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

NA

Built-in Speaker

NA

Audio

NA

Alarm

NA

Reset Key

Yes

Indicator

NA

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

Smart Event

Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

-2I: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W 4I: 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W

Material

Front cover: metal, body: metal, bracket: metal

Dimension

286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")

Package Dimension

386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Weight

Approx. 1180 g (2.6 lb.)

With Package Weight

Approx. 1829 g (4.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

AE专用

红外灯数量

2I:2颗红外;4I:4颗红外;

恒定光圈

Parámetros principales

caret-up caret-down
Modelo del producto
DS-2CD2T86G2H-2I(2.8mm)(eF)/BLACK
Alarma Cámara
Cámara sin Alarma
Audio
N/A Audio
Lente
Fija
Óptica
2.8mm
Protección Cámaras
IP67
Tipo de cámara
Bullet
Utilidad de la cámara
Día y noche
Sensibilidad Lumínica
0.0008 Lux
Iluminación
IR 60m
Tarjeta SD
Admite SD
WDR
WDR
Wifi
Sin Wifi
Soporte a Pared
DS-1276ZJ-SUS
Soporte a Techo
N/A
Soporte a Esquina
N/A
Soporte a Poste
DS-1275ZJ-SUS, DS-1275ZJ-S-SUS
Soporte Colgante
N/A
Soporte a prueba de agua
N/A
Caja de conexiones
DS-1260ZJ, DS-1280ZJ-S
Otros Soportes
N/A
Funciones Inteligentes
Acusense, Darkfighter, Cruce de líneas, Perímetro, Clasificación humano-vehículo
PoE / PoC
PoE
Resolución
8MP
Tecnología
IP
Marca
Hikvision CCTV
Gama
Hikvision Pro
