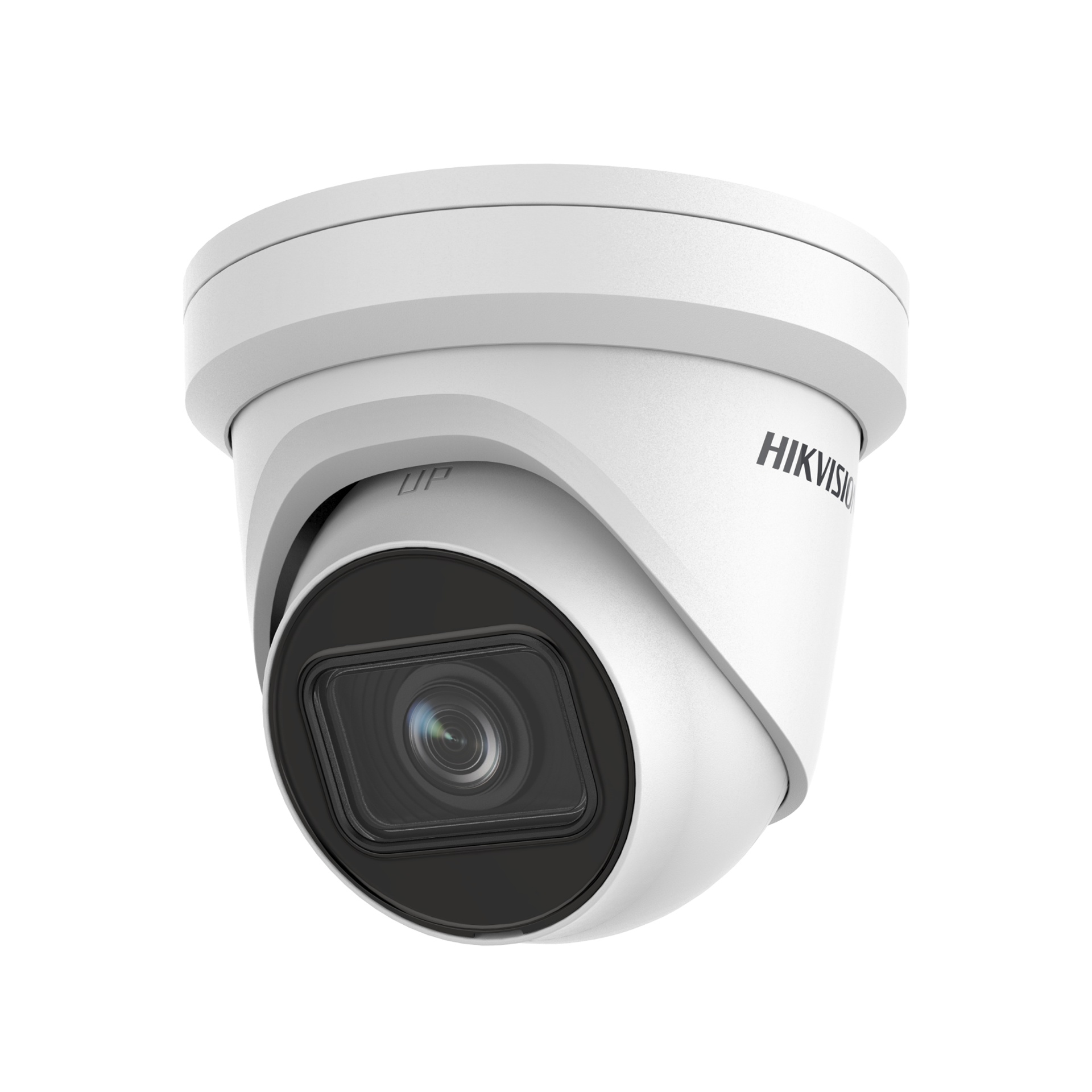

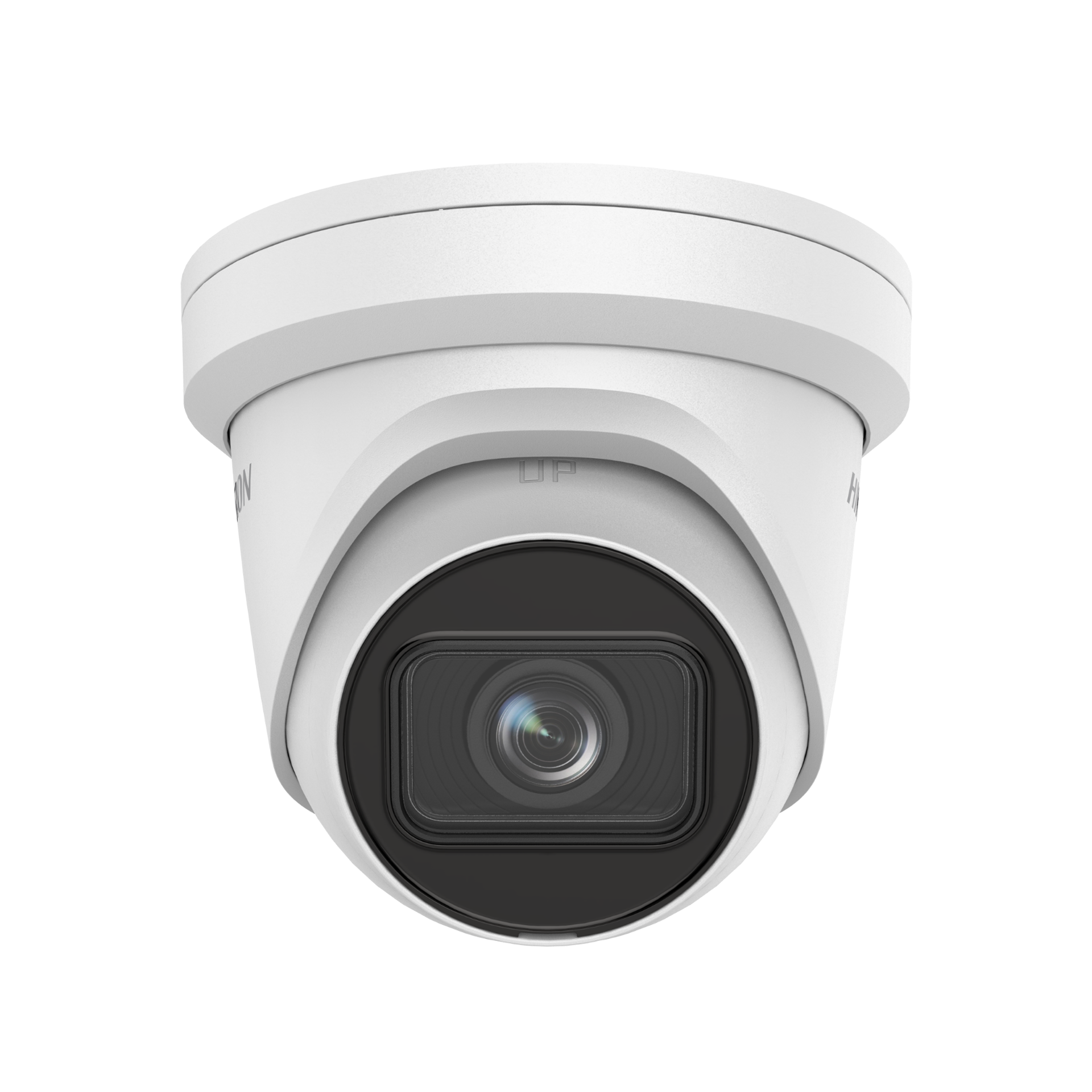

CAMARA IP HIKVISION DS-2CD2H43G2-IZS(2.8-12mm)

Cámara

Sensor De Imagen

1/3" Progressive Scan CMOS

Iluminación Mínima

Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Tiempo De Obturación

1/3 s to 1/100,000 s

Día Y Noche

ICR Cut

Ajuste De Ángulo

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Max. Resolución

2688 × 1520

Lente

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°

Apertura

F1.6

Montura Del Lente

Ø14

Lente

Varifocal lens, motorized lens, 2.8 to 12 mm

Iris Type

Fixed

DORI

2.8 to 12 mm:

D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

Iluminador

Tipo De Luz Suplementaria

IR

Rango De Luz Suplementaria

Up to 40 m

IR Wavelength

850 nm

Luz De Suplemento Inteligente

Yes

Vídeo

Main Stream

50 Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Compresión De Video

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Vídeo Bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación De Video Escalable (SVC)

Yes

Región De Interés (ROI)

1 fixed region for main stream and sub-stream

Audio

Filtro De Ruido Ambiental

Yes

Frecuencia De Muestreo De Audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión De Audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad De Bits De Audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)

Red

Vista En Vivo Simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets

Usuario/Operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Almacenamiento En Red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador Web

Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Interruptor Día/Noche

Day, Night, Auto, Schedule

Mejora De La Imagen

BLC, HLC, 3D DNR

Interruptor De Parámetros De Imagen

Yes

Configuración De Imagen

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Interfaz

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarma

1 input, 1 output (max. 12 VDC, 30 mA)

On-Board Storage

Built-in microSD, up to 512 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento

Evento Básico

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Evento Inteligente

Line crossing detection, intrusion detection (support alarm triggered by specific target types (human and vehicle))
Face detection

Linkage

Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

General

Función General

Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Condiciones De Almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones De Inicio Y Funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Aluminum alloy body

Dimensión

Ø138.3 × 126 mm (Ø5.4" × 5.0")

Dimensión Del Paquete

216 × 121 × 118 mm (8.5" × 4.8" × 4.6")

Approx. 830 g (1.8 lb.)

Con Peso Del Paquete

Approx. 1115 g (2.5 lb.)

Alimentación

12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

Idioma

33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian)

Certificaciones

EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Seguridad: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Ambiente: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protección: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
