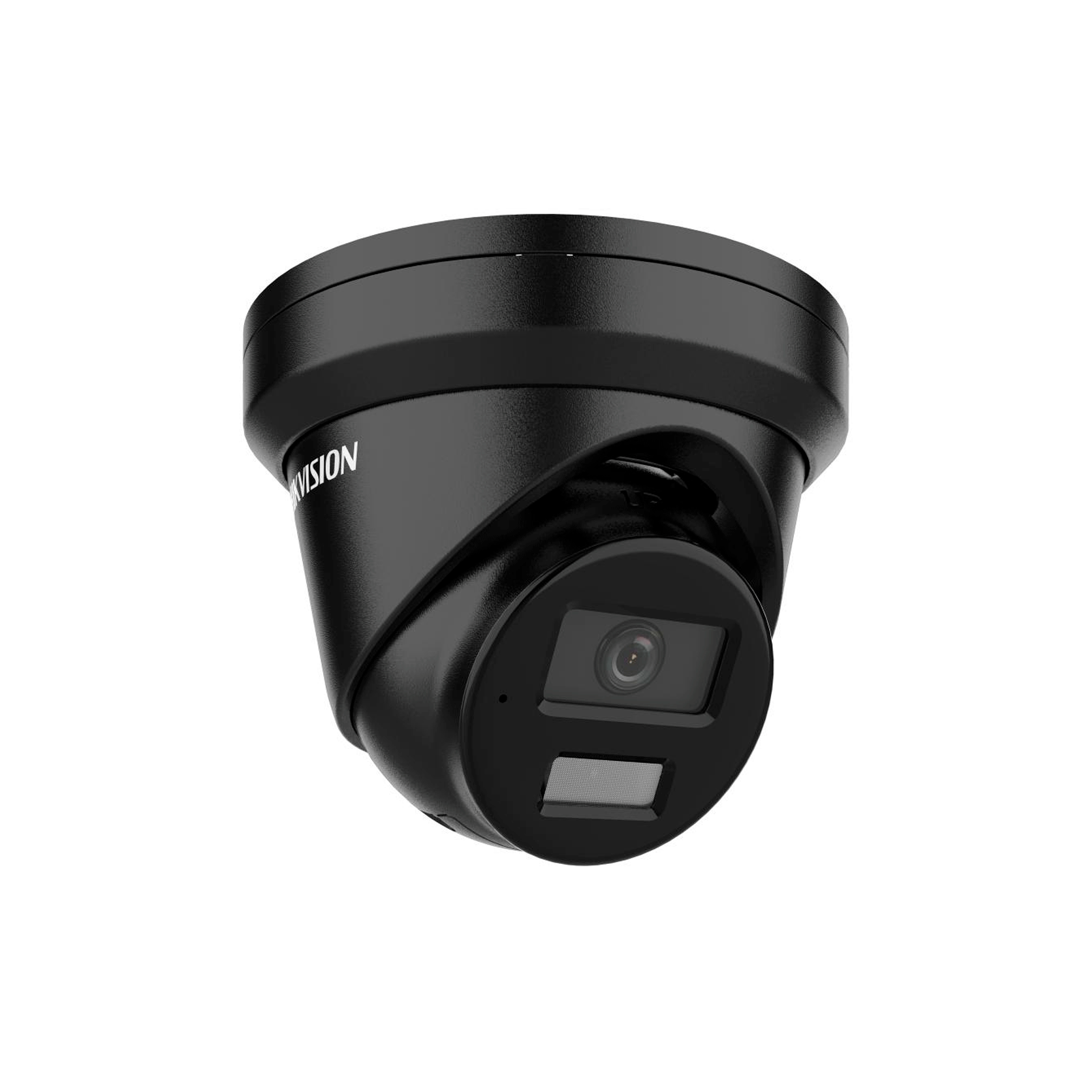

CAMARA IP HIKVISION DS-2CD2346G2H-IU(2.8mm)(eF)/BLACK

Cámara

• Sensor de imagen 1/3" Progressive Scan CMOS

• Max. Resolución 2688 × 1520

• Iluminación mínima Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

• Tiempo de obturación 1/3 s to 1/100,000 s

• Día y Noche IR cut filter

• Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente

• Lente Fixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°

• Montura del lente M12

• Iris Type Fixed

• Apertura F1.0

• Depth of Field 2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞

DORI

• DORI 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Iluminador

• Tipo de luz suplementaria IR

• Rango de luz suplementaria Up to 30 m

• Luz de suplemento inteligente Yes

• IR Wavelength 850 nm

Vídeo

• Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

• Compresión de video Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.

• Vídeo bitrate 32 Kbps to 8 Mbps

• Tipo H.264 Baseline Profile/Main Profile/High Profile

• Tipo H.265 Main Profile

• Bit Rate Control CBR/VBR

• Codificación de video escalable (SVC) H.264 and H.265 encoding

• Región de interés (ROI) 1 fixed region for main stream and sub-stream

Audio

• Tipo de audio -U: mono sound

• Compresión de audio -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Velocidad de bits de audio -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Frecuencia de muestreo de audio -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Filtro de ruido ambiental -U: Yes

Red

• Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets

• Vista en vivo simultánea Up to 6 channels

• API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

• Usuario/operador Up to 32 users. 3 user levels: administrator, operator and user

• Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

• Almacenamiento en red NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Cliente iVMS-4200, Hik-Connect, Hik-Central

• Navegador web Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

• Interruptor de parámetros de imagen Yes

• Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interruptor día/noche Day, Night, Auto, Schedule

• Wide Dynamic Range (WDR) 120 dB

• SNR ≥ 52 dB

• Mejora de la imagen BLC, HLC, 3D DNR

• Máscara de privacidad 4 programmable polygon privacy masks

Interfaz

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Micrófono incorporado -U: Yes

• Reset Key Yes

Evento

• Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Evento inteligente Scene change detection

• Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

• Deep Learning Function

• Captura de la cara Yes

• Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

• Alimentación 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W

• Material Cover: Metal, main body: Metal

• Dimensión Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Dimensión del paquete 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• Approx. 550 g (1.2 lb.)

• Con peso del paquete Approx. 800 g (1.8 lb.)

• Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Función general Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

• Idioma 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Certificaciones

• EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

• Seguridad UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

• Ambiente CE-RoHS: 2011/65/EU

• Protección IP67: IEC 60529-2013
