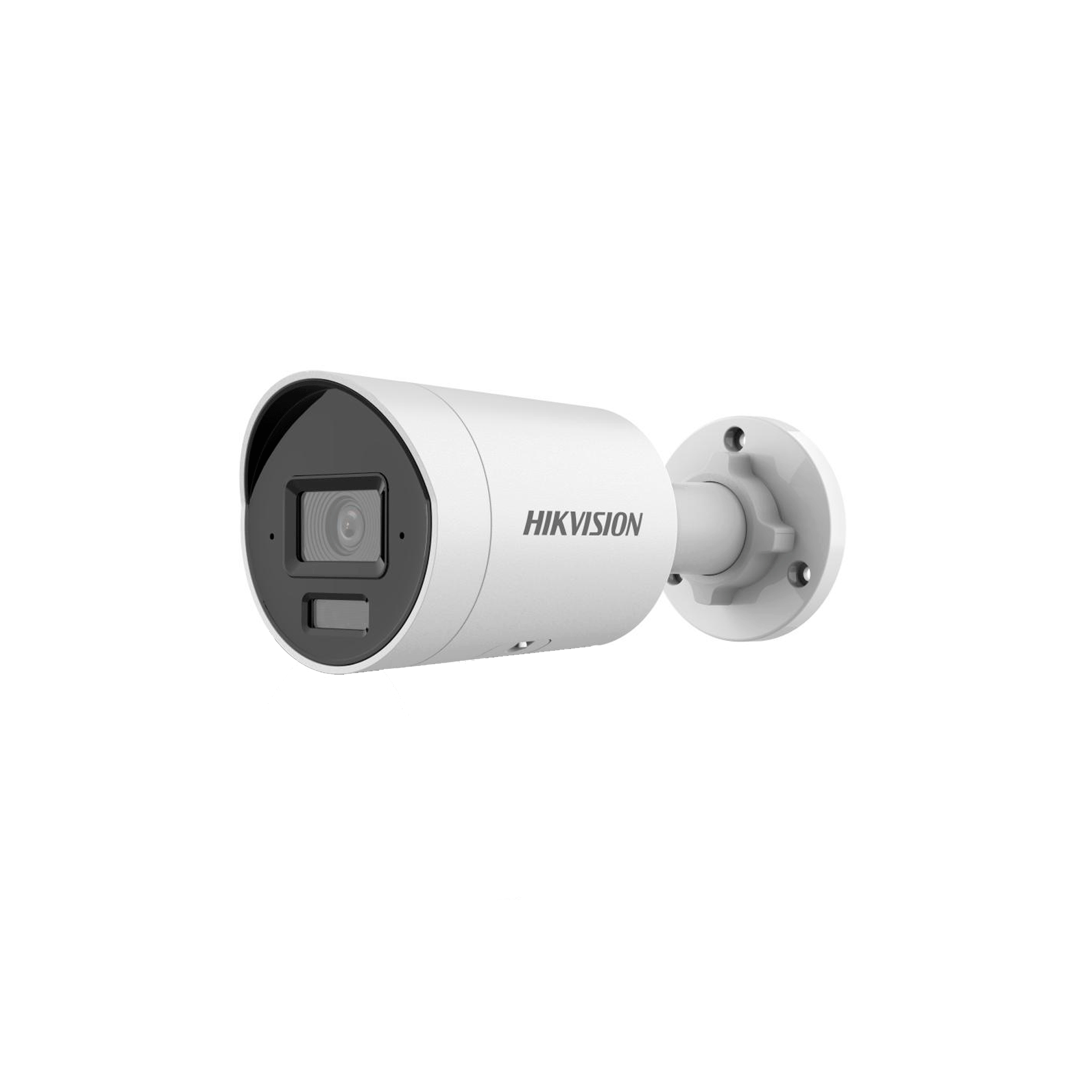

CAMARA IP HIKVISION DS-2CD2083G2-LI2U(2.8mm)

Camera

• Image Sensor 1/2.8" Progressive Scan CMOS

• Max. Resolution 3840 × 2160

• Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

• Shutter Time 1/3 s to 1/100,000 s

• Day & Night IR cut filter

• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional

• Focal Length & FOV 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127° 4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105° 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°

• Lens Mount M12

• Iris Type Fixed

• Aperture F1.6

• Depth of Field 2.8 mm: 1.7 m to ∞ 4 mm: 2.6 m to ∞ 6 mm: 5.8 m to ∞

DORI

• DORI 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m 6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m

Illuminator

• Supplement Light Type IR,White Light

• Supplement Light Range Up to 40 m

• Smart Supplement Light Yes

• IR Wavelength 850 nm

Video

• Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

• Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.

• Video Bit Rate 32 Kbps to 16 Mbps

• H.264 Type Baseline Profile,Main Profile,High Profile

• H.265 Type Main Profile

• Scalable Video Coding (SVC) H.264 and H.265 encoding

• Bit Rate Control CBR,VBR

• Region of Interest (ROI) 1 fixed region for main stream and sub-stream

• Target Cropping Yes

Audio

• Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Bit Rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate -2U: 8 kHz/16 kHz/32 kHz/48 kHz

• Environment Noise Filtering -2U: Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

• Simultaneous Live View Up to 6 channels

• API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP

• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

• User/Host Up to 32 users 3 user levels: administrator, operator, and user

• Client iVMS-4200,Hik-Connect,Hik-Central

• Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Web Browser Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Image Parameters Switch Yes

• Day/Night Switch Day,Night,Auto,Schedule

• Wide Dynamic Range (WDR) 120 dB

• SNR ≥ 52 dB

• Image Enhancement BLC,HLC,3D DNR

• Privacy Mask 8 programmable polygon privacy masks

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Reset Key Yes

• Audio Built-in Microphone: -2U: Dual Array Microphone

Event

• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Smart Event Unattended baggage detection, object removal detection

• Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

• Deep Learning Function

• Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

• Power 12 VDC ± 25%, 0.5 A, max. 6 W,reverse polarity protection,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, max. 7.5 W

• Material Metal

• Dimension Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")

• Package Dimension 234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61")

• Weight Approx. 515 g (1.1 lb.)

• With Package Weight Approx. 760 g (1.7 lb.)

• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Approval

• EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

• Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

• Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protection IP67: IEC 60529-2013
