CAMARA IP HIKVISION DS-2CD1643G2-IZ(2.8-12mm)

340177919

Cámara bullet, resolución 4MP, lente Varifocal, óptica 2. 8-12mm, IR 50m, WDR, IP67, sensibilidad 0.005 Lux, Motion Detection 2.0, soporta memoria SD.

En stock, envío en 24/48h.

Iniciar sesión para ver precios

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

CAMARA IP HIKVISION DS-2CD1643G2-IZ(2.8-12mm)

Specification

Camera	Image Sensor	1/3" Progressive Scan CMOS
	Max. Resolution	2560 × 1440
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
	Shutter Time	1/3 s to 1/100,000 s
	Day & Night	IR cut filter
	Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens	Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
	Focal Length & FOV	2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
	Lens Mount	Ø14
	Iris Type	Fixed
	Aperture	F1.6
Illuminator	Supplement Light Type	IR
	Supplement Light Range	Up to 50 m
	Smart Supplement Light	Yes
	IR Wavelength	850 nm
Video	Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
	Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
	Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 8 Mbps
	H.264 Type	Baseline Profile,Main Profile,High Profile
	H.265 Type	Main Profile
	Region of Interest (ROI)	1 fixed region(s) for main stream
Audio	Audio Compression	No
	Audio Bit Rate	No
	Audio Sampling Rate	No
	Environment Noise Filtering	No
Network	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
	Simultaneous Live View	Up to 6 channels
	API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
	Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
	User/Host	Up to 32 users 3 user levels: administrator, operator, and user
	Client	iVMS-4200,Hik-Connect
	Web Browser	Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Image	Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
	Day/Night Switch	Day,Night,Auto,Schedule
	Wide Dynamic Range (WDR)	120 dB
	Image Enhancement	BLC,HLC,3D DNR
Interface	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
	Audio	No
	Alarm	No
	Reset Key	Yes
Event	Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Event	Linkage	Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
General	Power	12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
	Dimension	Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
	Package Dimension	315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
	Weight	Approx. 745 g (1.6 lb.)
	With Package Weight	Approx. 1124 g (2.5 lb.)
	Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Language	English, Ukrainian
	General Function	Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark
Approval	EMC	FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
	Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
	Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
	Protection	IP67: IEC 60529-2013

Structure & Dimension Diagram

Parámetros principales

Modelo del producto

DS-2CD1643G2-IZ(2.8-12mm)

Alarma Cámara

Cámara sin Alarma

Audio

N/A Audio

Lente

Varifocal

Óptica

2.8-12mm

Protección Cámaras

IP67

Tipo de cámara

Bullet

Utilidad de la cámara

Día y noche

Sensibilidad Lumínica

0.005 Lux

Iluminación

IR 50m

Tarjeta SD

Admite SD

WDR

Wifi

Sin Wifi

Soporte a Pared

DS-1276ZJ-SUS

Soporte a Techo

N/A

Soporte a Esquina

N/A

Soporte a Poste

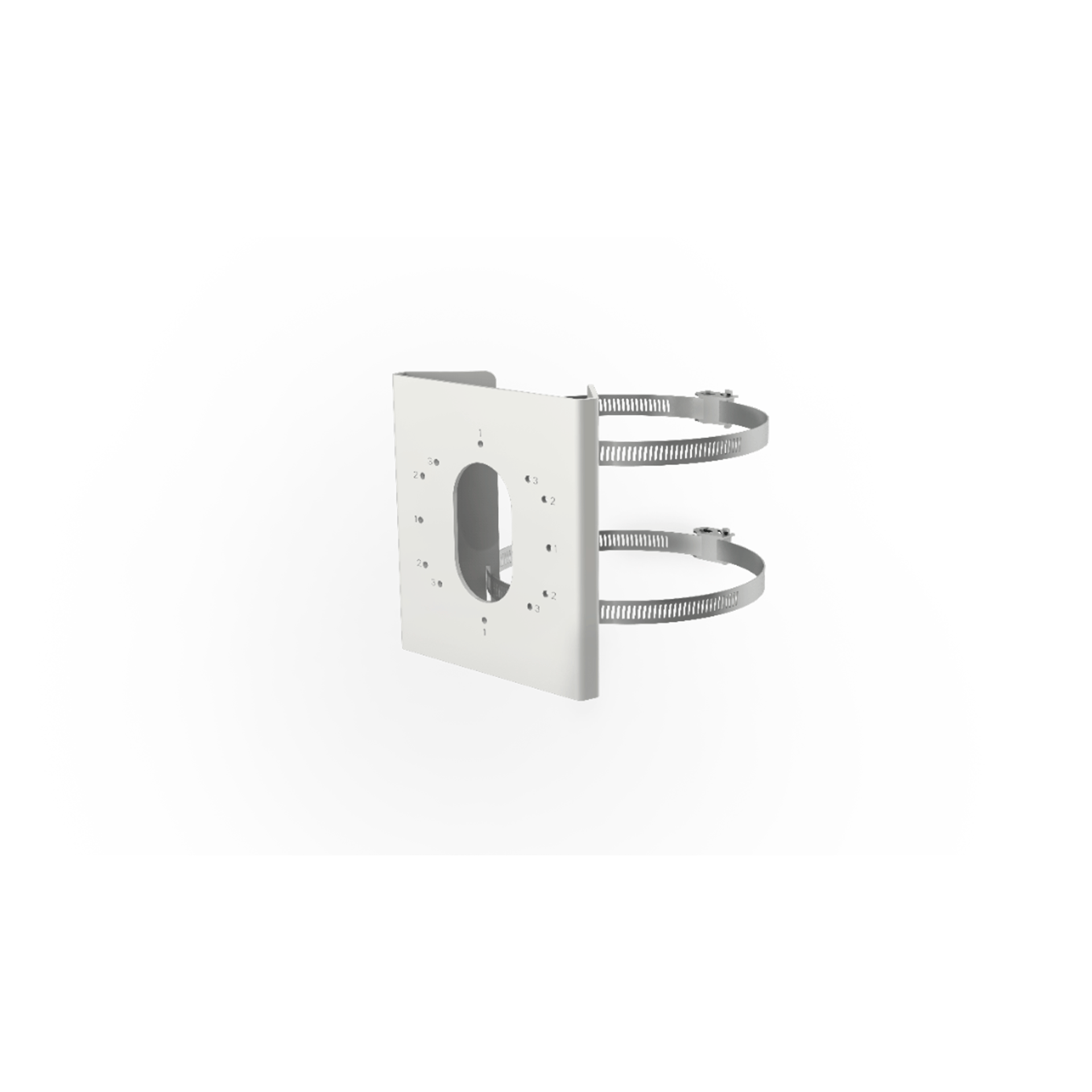

DS-1275ZJ-SUS, DS-1275ZJ-S-SUS

Soporte Colgante

N/A

Soporte a prueba de agua

N/A

Caja de conexiones

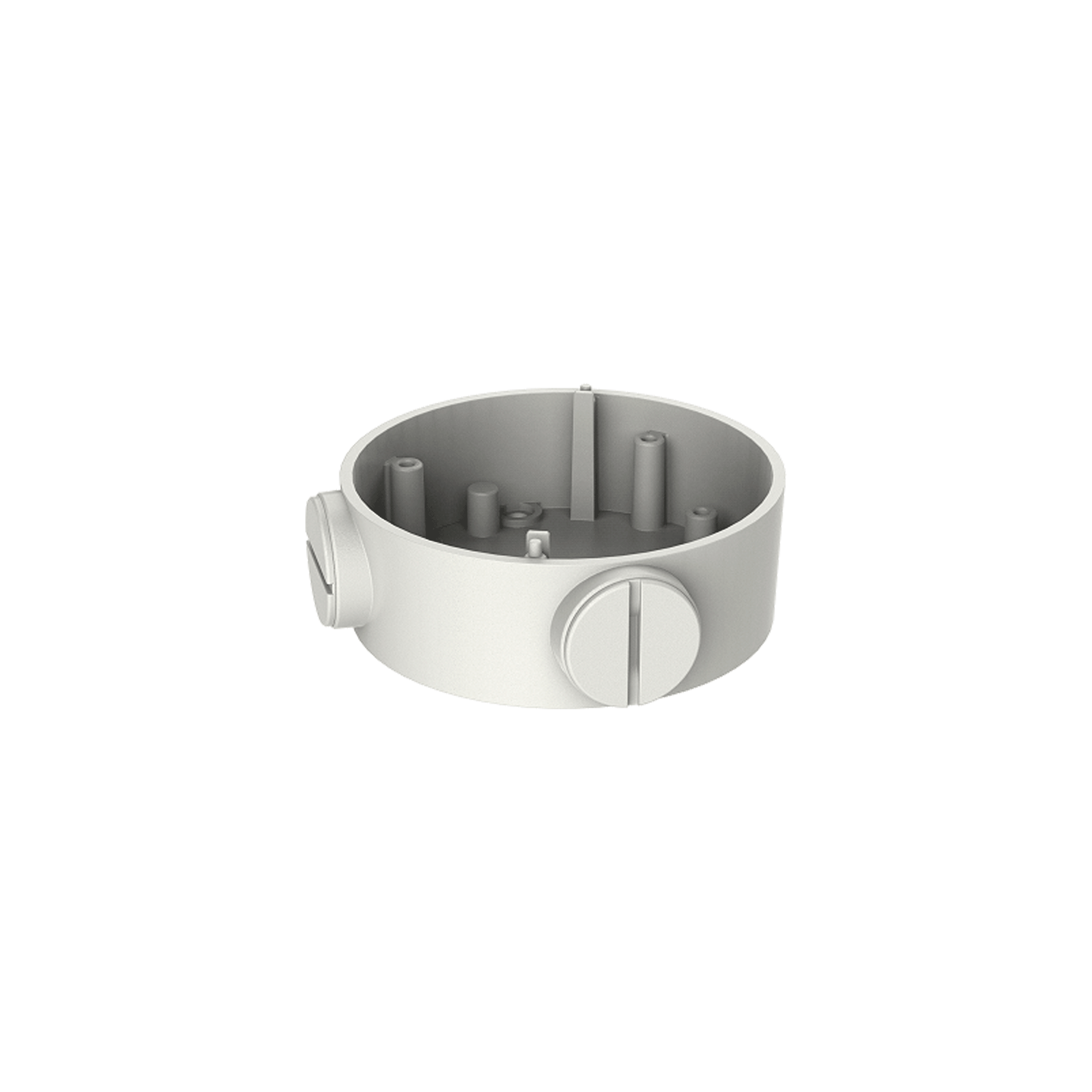

DS-1260ZJ, DS-1280ZJ-S

Otros Soportes

N/A

Funciones Inteligentes

Motion detection

PoE / PoC

PoE

Resolución

4MP

Tecnología

Marca

Hikvision CCTV

Gama

Hikvision Value

Descargas

DATASHEET_DS-2CD1643G2-IZ(2.8-12mm)_340177919

Guia_DS-2CD1643G2-IZ(2.8-12mm)_340177919

Manual_DS-2CD1643G2-IZ(2.8-12mm)_340177919

Software: IVMS-4200

Software: SADP TOOL (V3.1.3.2)
