Entrega en 7 días hábiles

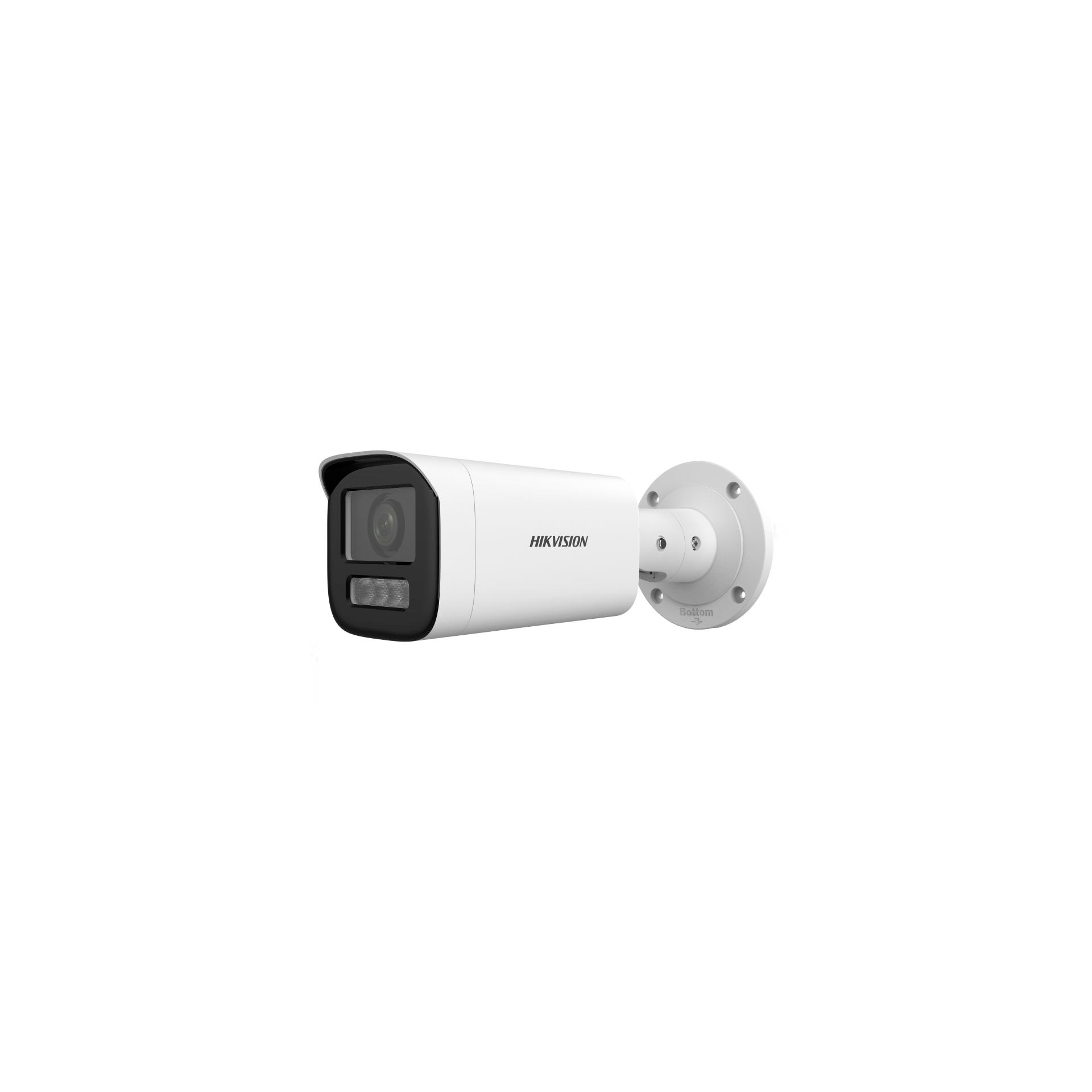

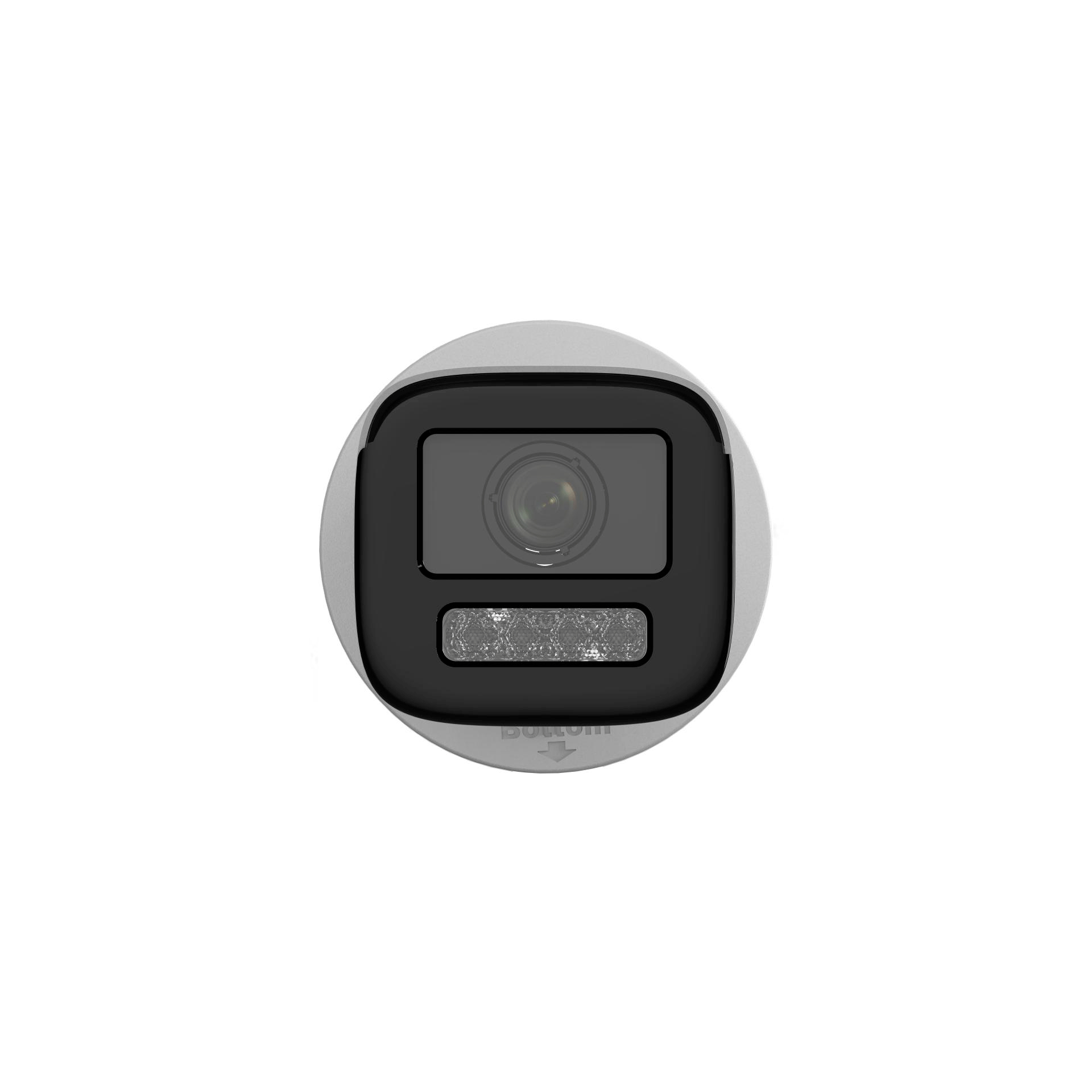

CAMARA IP HIKVISION DS-2CD1623G2-LIZSU(2.8-12mm)

340178175

Camara Bullet, resolución 2MP, lente Varifocal, óptica 2. 8-12mm, Híbrida 50m, DWDR, IP67, sensibilidad 0.005 Lux, PoE, Motion Detection 2.0, Clasificación humano-vehículo, Sin Wifi, Alarma In/Out, In/Out, Micrófono, soporta memoria SD.

Bajo pedido: Entrega en 7 días hábiles

Iniciar sesión para ver precios

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

CAMARA IP HIKVISION DS-2CD1623G2-LIZSU(2.8-12mm)

Specification

Camera	Image Sensor	1/2.9" Progressive Scan CMOS
	Max. Resolution	1920 × 1080
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
	Shutter Time	1/3 s to 1/100,000 s
	Day & Night	IR cut filter
	Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens	Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
	Focal Length & FOV	2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
	Lens Mount	Ø14
	Iris Type	Fixed
	Aperture	F1.6
DORI	DORI	D: 45.7 to 141.4 m, O: 18.1 to 56.1 m, R: 9.1 to 28.3 m, I: 4.6 to 14.1 m
Illuminator	Supplement Light Type	IR,White Light
	Supplement Light Range	Up to 50 m
	Smart Supplement Light	Yes
	IR Wavelength	850 nm
Video	Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
	Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
	Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	H.264 Type	Baseline Profile,Main Profile,High Profile
	H.265 Type	Main Profile
	Bit Rate Control	CBR,VBR
	Scalable Video Coding (SVC)	H.264 and H.265 encoding
	Region of Interest (ROI)	1 fixed region for main stream
Audio	Audio Type	Mono sound
	Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
	Audio Sampling Rate	8 kHz/16 kHz
	Environment Noise Filtering	Yes
Network	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
	Simultaneous Live View	Up to 6 channels
	API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
	User/Host	Up to 32 users 3 user levels: administrator, operator, and user
	Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
	Client	iVMS-4200,Hik-Connect
	Web Browser	Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image	Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
	Day/Night Switch	Day,Night,Auto,Schedule
	Wide Dynamic Range (WDR)	Digital WDR
	SNR	≥ 52 dB
	Image Enhancement	BLC,HLC,3D DNR
	Privacy Mask	4 programmable polygon privacy masks
Interface	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
	Built-in Microphone	Yes,1 built-in microphone
	Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
	Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)
	Reset Key	Yes
Event	Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Event	Linkage	Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output
General	Power	12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
	Material	Metal & Plastic
	Dimension	Ø105 mm × 252 mm (Ø4.13" × 9.92")
	Package Dimension	315 mm × 137 mm × 141 mm (12.40" × 5.39" × 5.55")
	Weight	Approx. 570 g (1.3 lb.)
	With Package Weight	Approx. 900 g (2.0 lb.)
	Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
	Language	English, Ukrainian
	General Function	Heartbeat,mirror,password reset via email,password protection,anti-banding
Approval	EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
	Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
	Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
	Protection	IP67: IEC 60529-2013

Structure & Dimension Diagram

Parámetros principales

Modelo del producto

DS-2CD1623G2-LIZSU(2.8-12mm)

Alarma Cámara

Alarma In/Out

Audio

In/Out, Micrófono

Lente

Varifocal

Óptica

2.8-12mm

Protección Cámaras

IP67

Tipo de cámara

Bullet

Utilidad de la cámara

Día y noche

Sensibilidad Lumínica

0.005 Lux

Iluminación

Híbrida 50m

Tarjeta SD

Admite SD

WDR

DWDR

Wifi

Sin Wifi

Soporte a Pared

DS-1276ZJ-SUS

Soporte a Techo

N/A

Soporte a Esquina

N/A

Soporte a Poste

DS-1275ZJ-SUS, DS-1275ZJ-S-SUS

Soporte Colgante

N/A

Soporte a prueba de agua

N/A

Caja de conexiones

DS-1260ZJ, DS-1280ZJ-S

Otros Soportes

N/A

Funciones Inteligentes

Motion detection, Clasificación humano-vehículo

PoE / PoC

PoE

Resolución

2MP

Tecnología

Marca

Hikvision CCTV

Gama

Hikvision Value

Descargas

Datasheet_DS-2CD1623G2-LIZSU_340178175

Guia_DS-2CD1623G2-LIZSU_340178175

Manual_DS-2CD1623G2-LIZSU_340178175
