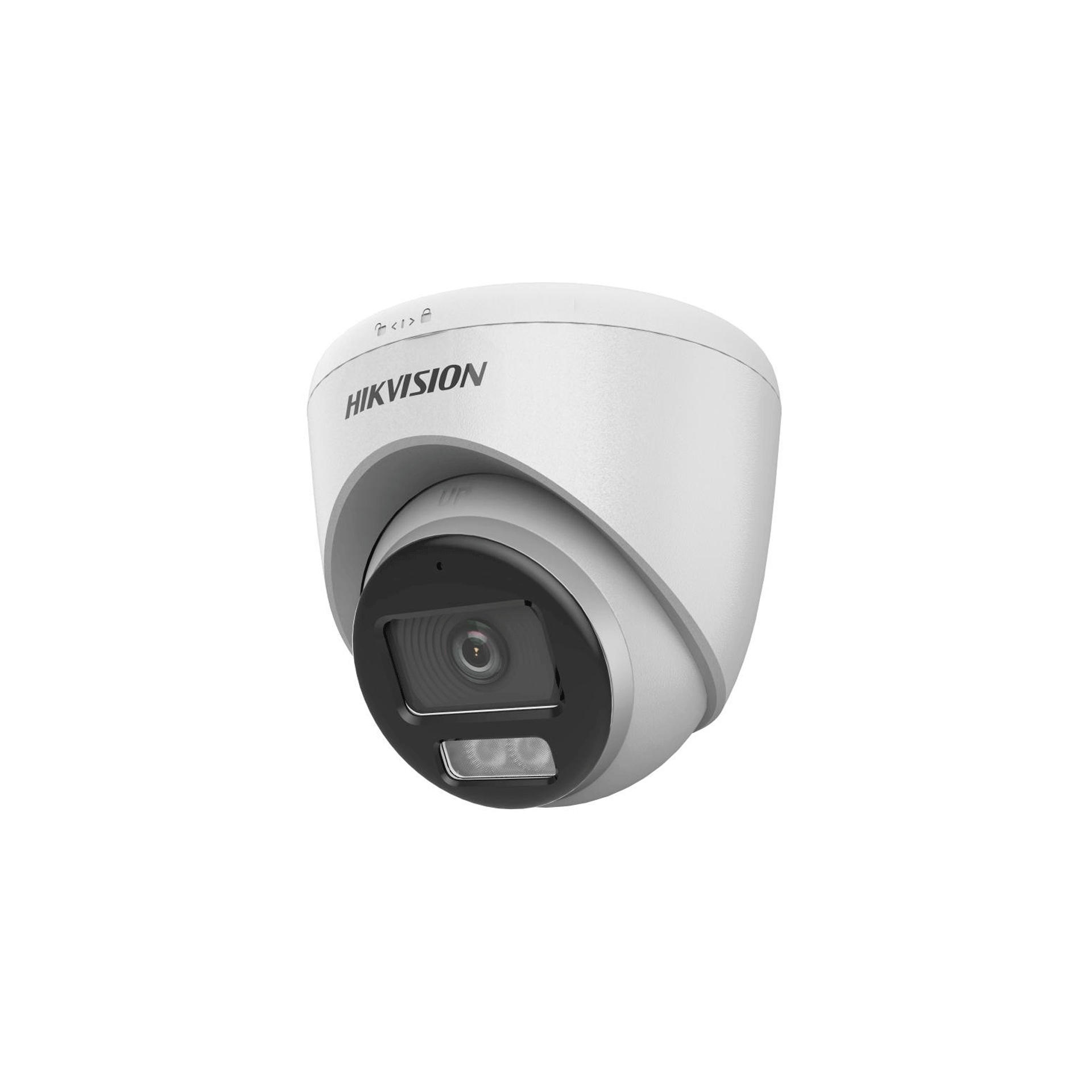

CAMARA HD HIKVISION DS-2CE72KF0T-LFS(2.8mm)

Camera

Image Sensor

3K CMOS

Signal System

PAL/NTSC

Resolution

2960 (H) × 1665 (V)

Frame Rate

TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC

Min. Illumination

0.001 Lux @(F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens

2.8 mm, 3.6 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°

Lens Mount

M12

Light Alarm

Solid Light Alarm (White Light)

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Microphone

Pickup Distance

In a radius of up to 5 m

Amount

1

Illuminator

Supplement Light Type

Smart, IR, White Light

Supplement Light Range

IR: Up to 40 m,White Light: Up to 40 m


White Light

Auto/Off

Image Mode

STD/HIGH-SAT/HIGHLIGHT

AGC

Yes

Day/Night Mode

Auto/Color

White Balance

Auto/Outdoor/Global/Manual

AE (Auto Exposure) Mode

HLS;DWDR;BLC;HLC;Global

Noise Reduction

2D DNR

Language

English

Function

Smart IR;Brightness;Sharpness;AGC;Anti-Banding

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Audio In

Built-in mic

General

Power

12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)

Protection Level

IP67

Material

Enclosure: Plastic Main body: Metal

Communication

HIKVISION-C

Dimension

Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")

Weight

Approx. 320 g (0.71 lb.)
