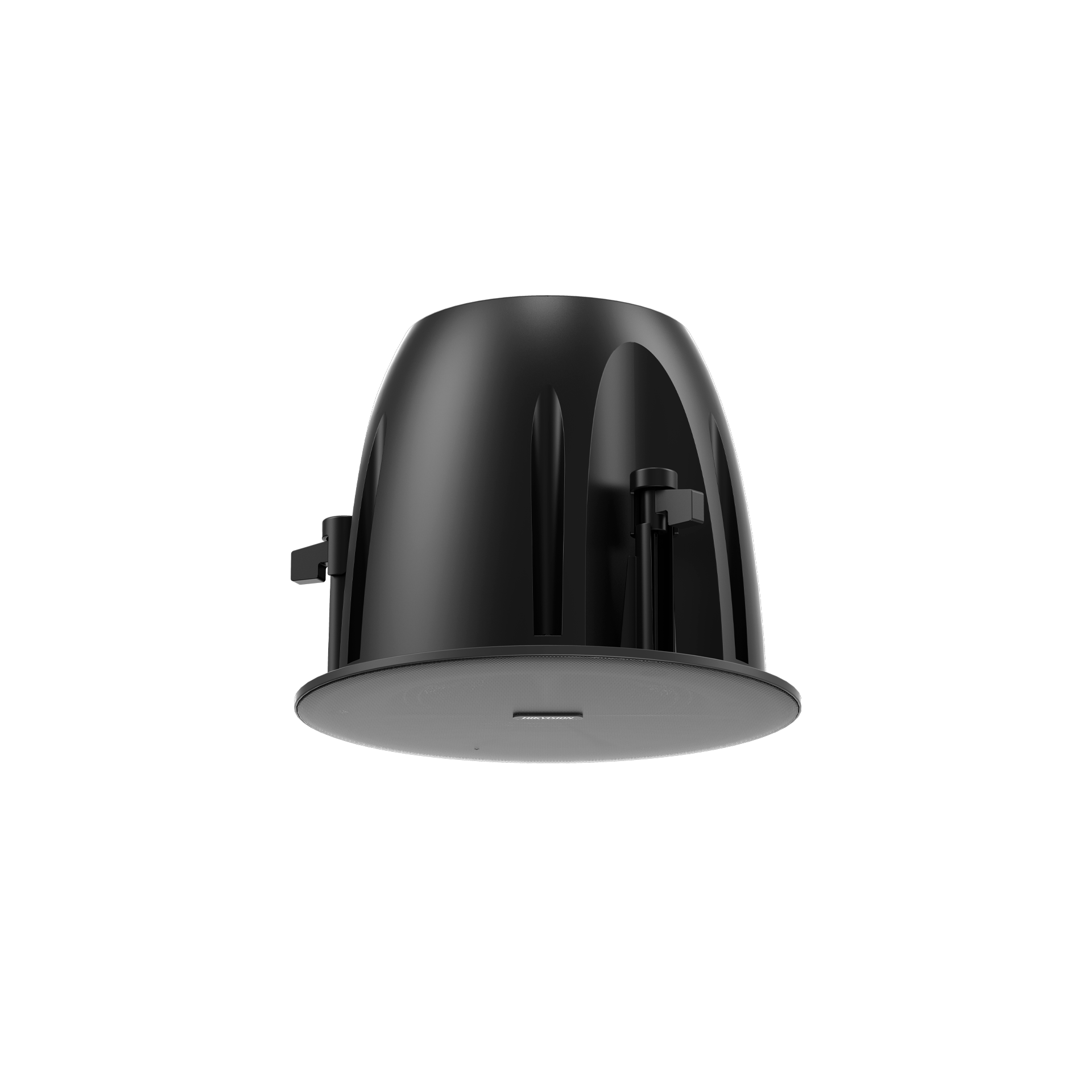

ALTAVOZ HIKVISION DS-QAZ1610G1-BE/BLACK

Protocol

Network Protocol

IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP

Microphone

Type

MEMS

Amount

2

Frequency Response

100 Hz to 10 kHz

Sensitivity

-38dBV/Pa

Speaker

Impedance

8Ω

Rated Power

10W

Total Harmonic Distortion (THD)

≤1%

Sensitivity(1 m, 1 W)

89dB

Max. Acoustic Pressure

98dB

Frequency Response

120Hz~20kHz(-10dB)

Speaker Unit

1 × 1.0-inch tweeter and 1 × 6.5-inch woofer

Function

Audio Algorithm

AEC、AGC、ANS、DRC

Audio Bit Rate

G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits

Audio

Number of Secondary Speaker

AF Protocol：0 AT Protocol：0 BT Protocol：4

Secondary Speaker Connection Method

Voltage Input

Interface

Alarm

Alarm in

Network Interface

RJ45 10 M/100 M Adaptive Ethernet port × 1

Local Storage

Built-in 64 GB EMMC (Audio file storage is 55 GB.)

Audio In

3.5 mm audio interface × 1

LED Indicator

Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading

Reset

Support

General

Power

24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W

Material

Main body: PC Base: ABS

Dimension

Ø242.78 mm × 192.7 mm (9.56" × 7.59")

Weight

Approx. 2.7 kg (5.95 lb.)

Language

5 languages: English, French, Spanish, German, Italian

Package Dimension

305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")

With Package Weight

Approx. 2.9 kg (6.49 lb.)

Packing List

Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1

Bluetooth

Bluetooth 5.0, 10 m

Operating Temperature

-10 °C to 45 °C

Operating Humidity

＜90% (No condensation)
