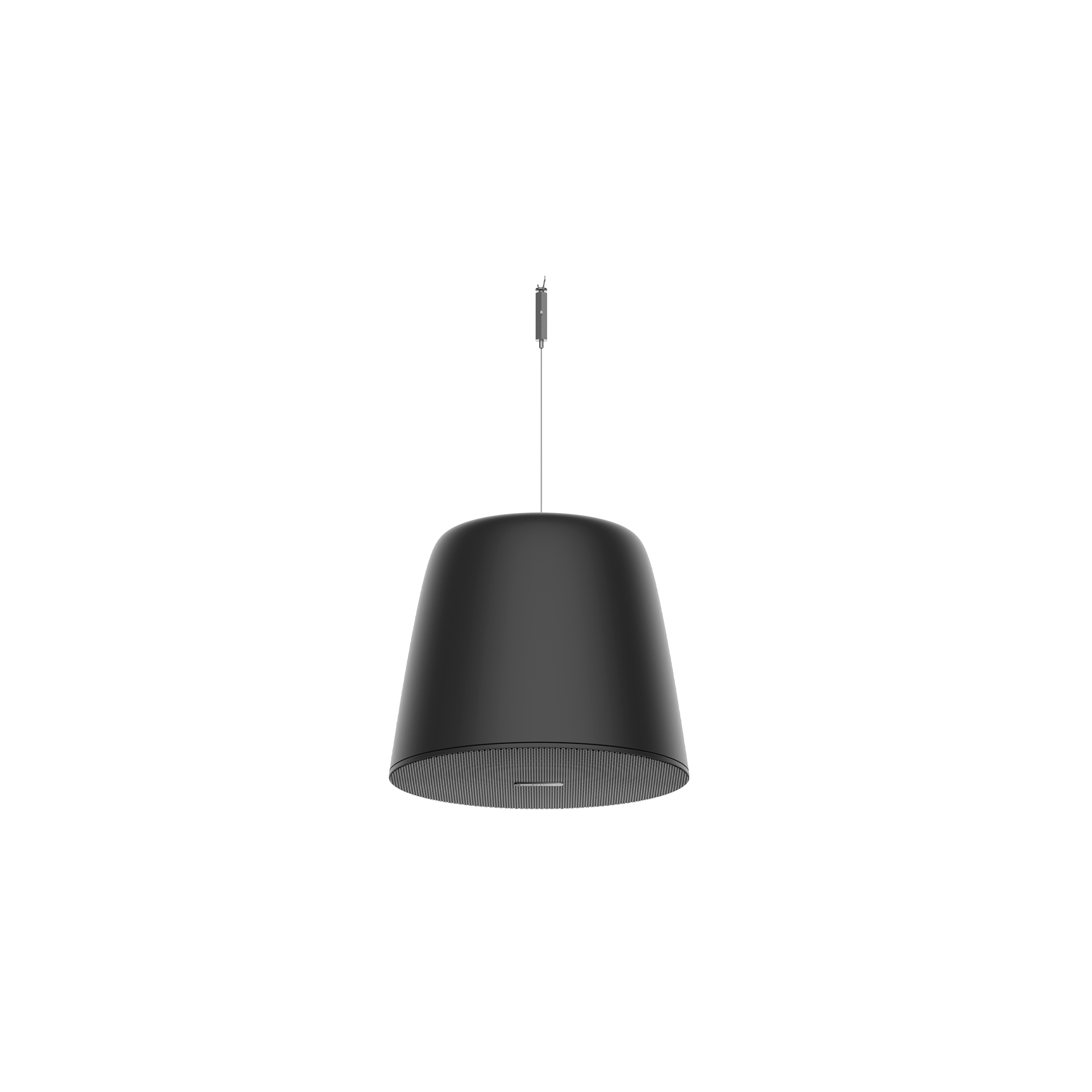

ALTAVOZ HIKVISION DS-QAZ1530G1-BE/BLACK

Protocol

Network Protocol

IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP

Microphone

Type

MEMS

Amount

2

Frequency Response

100 Hz to 10 kHz

Sensitivity

-38dBV/Pa

Speaker

Impedance

8Ω

Rated Power

30W

Total Harmonic Distortion (THD)

≤1%

Sensitivity(1 m, 1 W)

92dB

Max. Acoustic Pressure

104dB

Frequency Response

80Hz~20kHz(-10dB)

Speaker Unit

1 × 1.0-inch tweeter and 1 × 6.5-inch woofer

Function

Audio Algorithm

AEC、AGC、ANS、DRC

Audio Bit Rate

G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits

Speech Synthesis

Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

Interface

Alarm

Alarm in

Network Interface

RJ45 10 M/100 M Adaptive Ethernet port × 1

Local Storage

Built-in 64 GB EMMC (Audio file storage is 55 GB.)

Audio In

3.5 mm audio interface × 1

LED Indicator

Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading

Reset

Support

General

Power

24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W

Material

Main body: PC Base: ABS

Dimension

Ø286.74mm × 246.17mm (11.29" × 9.69")

Weight

Approx. 2.7 kg (5.95 lb.)

Language

41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese

Package Dimension

350 mm × 350 mm × 343 mm (13.78" × 13.78" × 13.5")

With Package Weight

Approx. 2.9 kg (6.49 lb.)

Packing List

Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1

Bluetooth

Bluetooth 5.0, 10 m

Operating Temperature

-10 °C to 45 °C

Operating Humidity

＜90% (No condensation)
