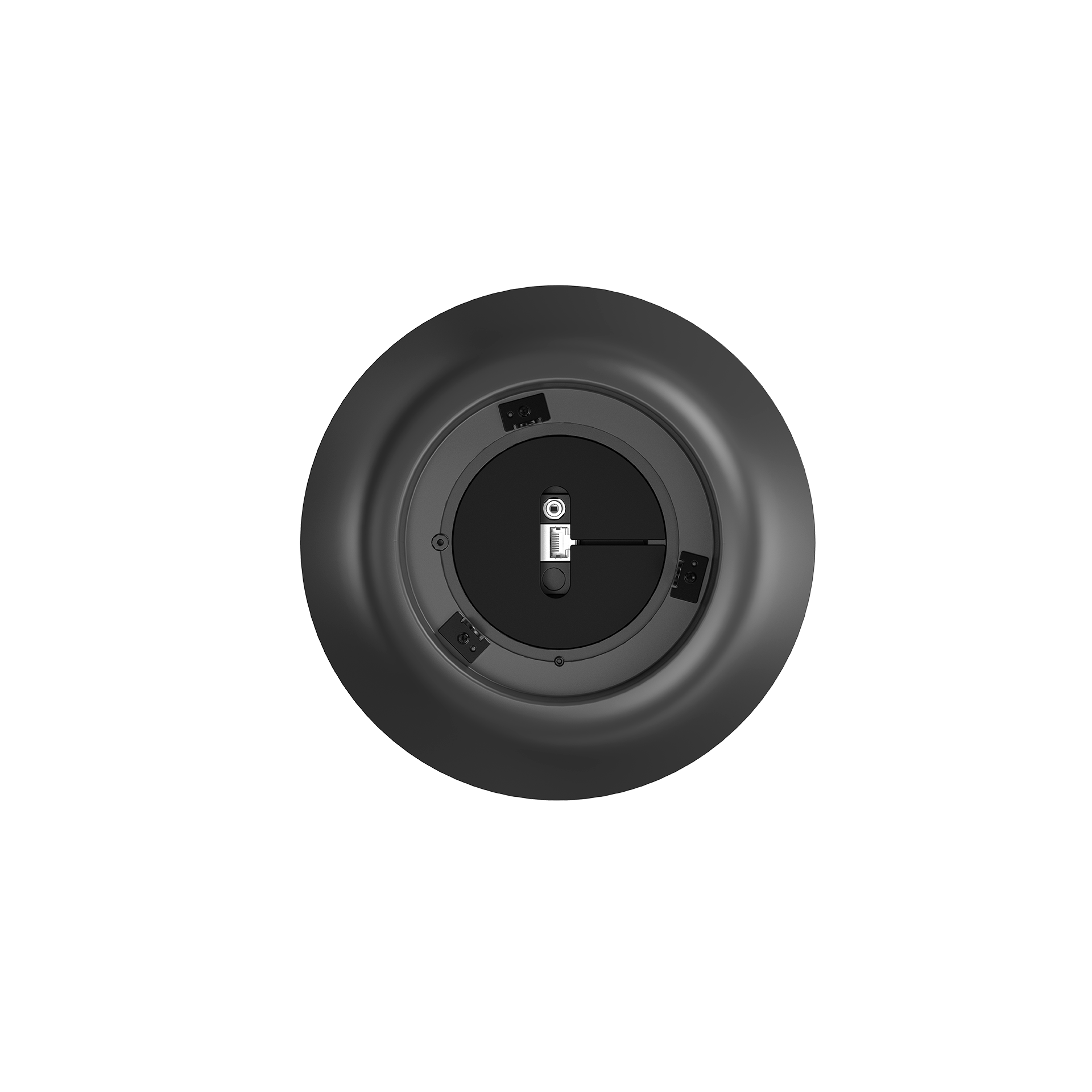

ALTAVOZ HIKVISION DS-QAZ1510G1-BE/BLACK

340677644

Altavoz de gabinete de red POE 10W. Adopta chips de doble núcleo de grado industrial de alta velocidad, almacenamiento dual NOR Flash + EMMC incorporado, admita respaldo dual del sistema para garantizar un rendimiento estable y confiable del sistema. Admite entrada de alarma, programación de armado y enlace de audio, admite síntesis de voz TTS y transmisión de texto, con opciones de audio dual estándar. Admite instalación horizontal y vertical. Color negro

Fuera de stock, consultar plazo

Iniciar sesión para ver precios

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

ALTAVOZ HIKVISION DS-QAZ1510G1-BE/BLACK

Specification

Protocol	Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
Microphone	Type	MEMS
	Amount	2
	Frequency Response	100 Hz to 10 kHz
	Sensitivity	-38dBV/Pa
Speaker	Impedance	8Ω
	Rated Power	10W
	Total Harmonic Distortion (THD)	≤1%
	Sensitivity(1 m, 1 W)	89dB
	Max. Acoustic Pressure	98dB
	Frequency Response	120Hz~20kHz(-10dB)
	Speaker Unit	1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
Function	Audio Algorithm	AEC、AGC、ANS、DRC
	Audio Bit Rate	G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
	Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio	Number of Secondary Speaker	AF Protocol：0 AT Protocol：0 BT Protocol：4
Audio	Secondary Speaker Connection Method	Voltage Input
Interface	Alarm	Alarm in
	Network Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
	Local Storage	Built-in 64 GB EMMC (Audio file storage is 55 GB.)
	Audio In	3.5 mm audio interface × 1
	LED Indicator	Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
	Reset	Support
General	Power	24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
	Material	Main body: PC Base: ABS
	Dimension	Ø242.78 mm × 214.78 mm (9.56" × 8.46")
	Weight	Approx. 2.7 kg (5.95 lb.)
	Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
	Package Dimension	305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
	With Package Weight	Approx. 2.9 kg (6.49 lb.)
	Packing List	Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
	Bluetooth	Bluetooth 5.0, 10 m
	Operating Temperature	-10 °C to 45 °C
	Operating Humidity	＜90% (No condensation)

Structure & Dimension Diagram

Parámetros principales

Modelo del producto

DS-QAZ1510G1-BE/BLACK

Marca

Hikvision CCTV

Gama

Hikvision Pro

Descargas

Datasheet_DS-QAZ1510G1-BE-BLACK_340677644
