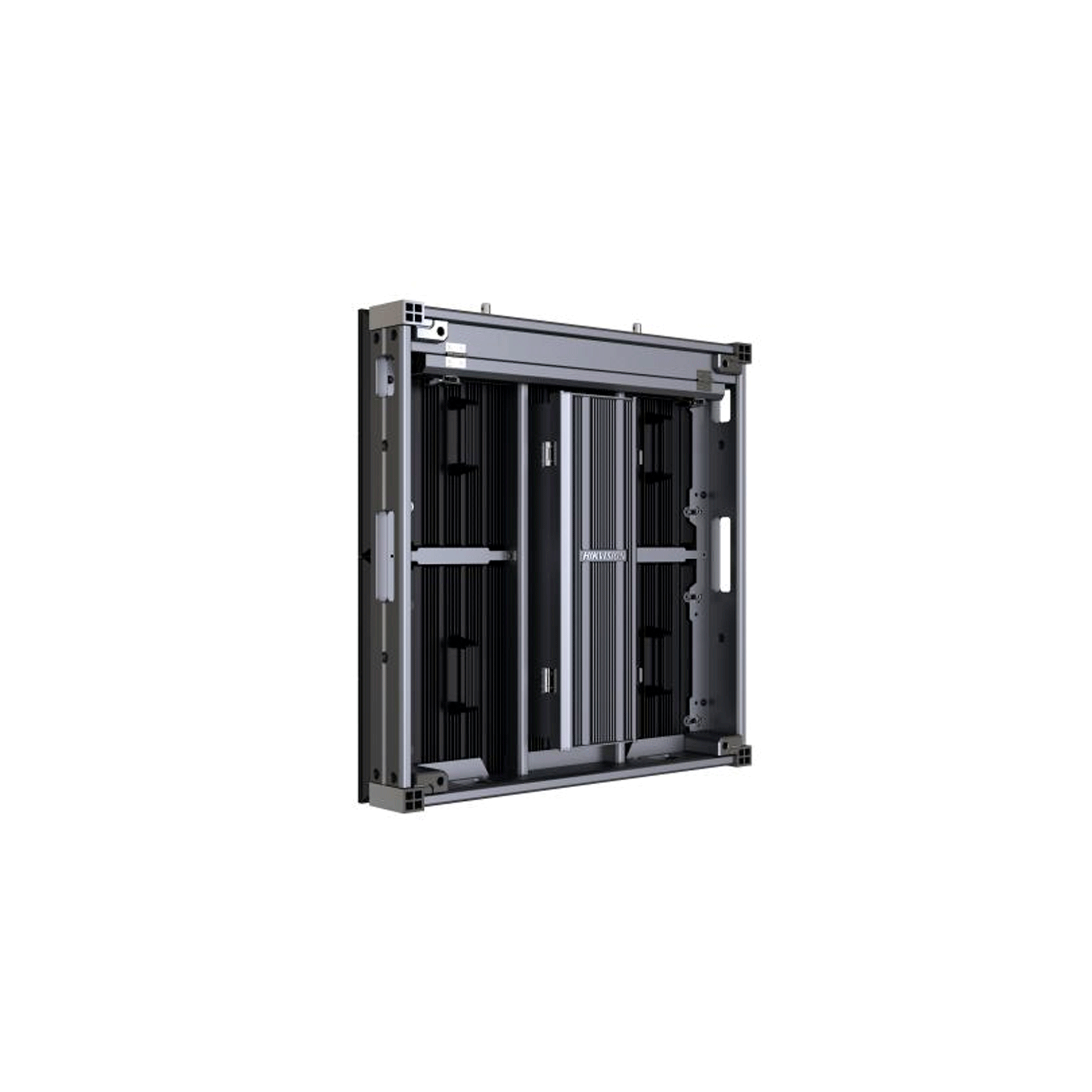

PANTALLA LED HIKVISION DS-D4248CD-1AAB

327077040

PANTALLA LED HIKVISION DS-D4248CD-1AAB

Specification

Cabinet	Pixel Configuration	SMD Triad LED
	Pixel Pitch Category	P4.8
	Pixel Pitch	4.81mm
	Modules Component	1 × 2
	Dimensions (W × H × D)	500 mm × 500 mm × 97 mm
	Resolution	104×104
	Area	0.25 m²
	Weight	9.12 Kg
	Pixel Density	43264 dots/m²
	Lamp Board Housing	With housing
	Cabinet Material	Aluminum Profile
	Maintenance Method	Front and Rear maintenance
	Cabinet Flatness	0.8 mm
	Protection Level	IP66
Key Material	Lamp Encapsulation	1921
	Driver IC	DP3265S
	Control System	Hikvision
Display	White Balance Brightness	5000 nits (Peak)
	Color Temperature	9300K adjustable
	Viewing Angle	Horizontal 160°, vertical 160°
	Contrast Ratio	≥ 5000:1
	Color Uniformity	≤ ± 0.003Cx，Cy
	Brightness Uniformity	≥ 95％
Processing Performance	Driving Method	Constant current driving
	Frame Frequency	60 Hz
	Refresh Rate	Up to 3840 Hz
	Grey Level	Up to 14 bit
Power	Power Supply	110~220 VAC ± 15%
	Max. Consumption	≤ 650W/㎡（4500nits）
	Average Consumption	≤ 210 W/㎡（4500nits）
Working Environment	Working Temperature	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
	Working Humidity	10%~80%RH
	Storage Humidity	10%~90%RH
	Storage Temperature	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
	Relative Humidity	Notice：If used in the following scenarios, please communicate with headquarters for customization：1）Seaside 2）Swimming pool 3）Ambient temperature ≤-40℃
General	Gross Weight	10.85KG/1 in 1
	Package Dimension (W × H × D)	610mm x 165mm x 606mm
	Lifespan	Lamp 100,000 hours
