PANTALLA LED HIKVISION DS-D4239CF-1AAB

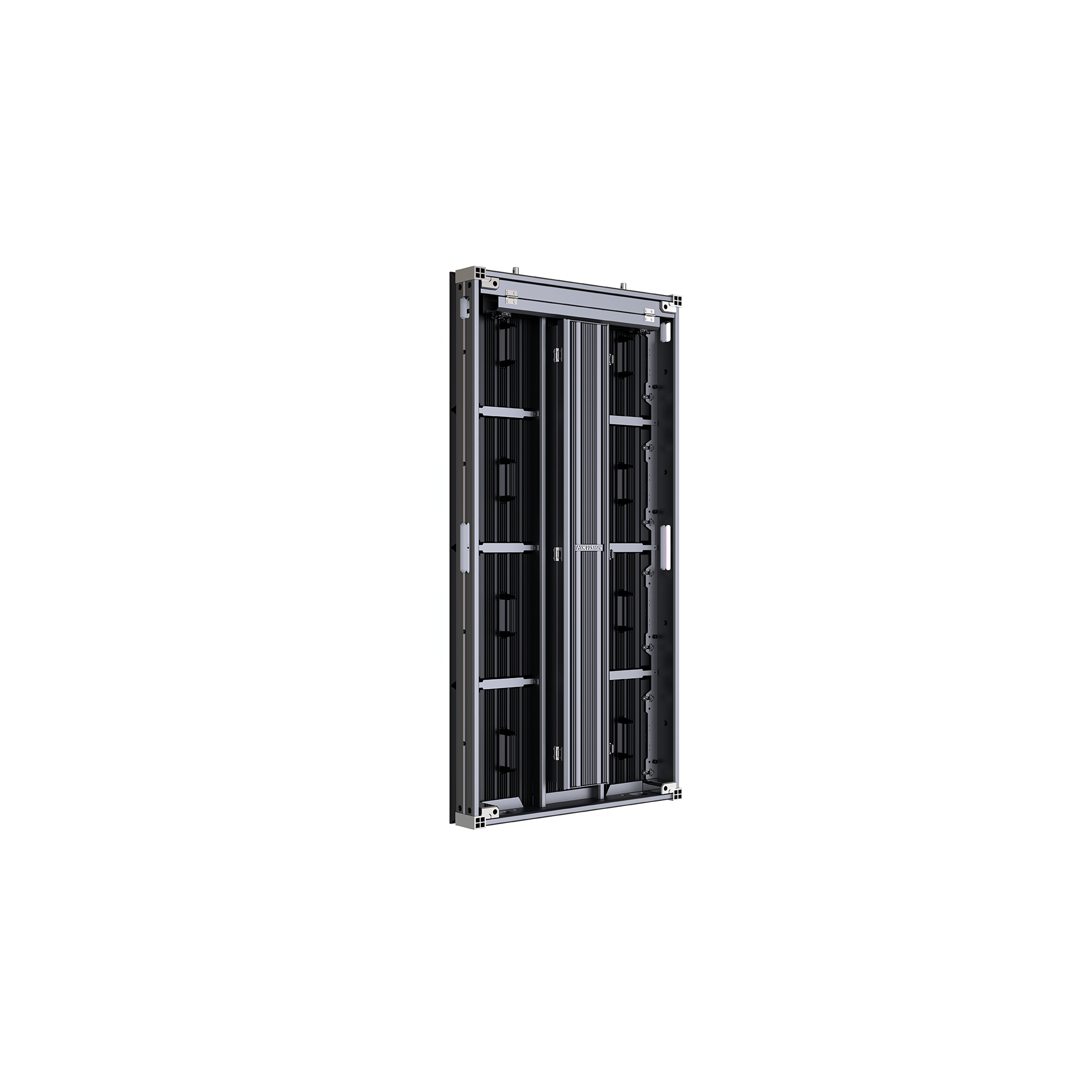

Cabinet

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P3.9

Pixel Pitch

3.91 mm

Modules Component

1 × 4

Dimensions (W × H × D)

500 mm × 1000 mm × 97 mm（19.69" × 39.37" × 3.82"）

Resolution

128 × 256

Area

0.5 m²

Weight

18.24 kg

Pixel Density

65536 dots/m²

Lamp Board Housing

With housing

Cabinet Material

Aluminum Profile

Maintenance Method

Front and Rear maintenance

Cabinet Flatness

0.8 mm

Protection Level

IP66

Key Material

Control System

Hikvision

Display

White Balance Brightness

5000 nits (Peak)

Color Temperature

9300K adjustable

Viewing Angle

Horizontal 160°, vertical 128°

Contrast Ratio

≥ 5000:1

Color Uniformity

≤ ± 0.004Cx，Cy

Brightness Uniformity

≥ 95％

Processing Performance

Driving Method

Constant current driving

Frame Frequency

50/60 Hz

Refresh Rate

Up to 3840 Hz

Grey Level

14 bit adjustable

Power

Power Supply

110 to 220 VAC ± 15%

Max. Consumption

≤ 508 W/㎡ （5000nits）

Average Consumption

≤ 170 W/㎡ （5000nits）

Working Environment

Working Temperature

-20 ℃ to +60 ℃ (-4 ℉ to +140 ℉)

Working Humidity

10%~95%RH (No condensation)

Storage Humidity

10%~90%RH (No condensation)

Storage Temperature

-20 ℃ to +60 ℃ (-4 ℉ to +140 ℉)

Relative Humidity

Notice：If used in the following scenarios, please communicate with headquarters for customization：1）Seaside 2）Swimming pool 3）Ambient temperature ≤-40℃

General

Gross Weight

20.6 Kg/1 in 1

Package Dimension (W × H × D)

1108 mm × 165 mm × 606 mm（38.25" × 6.50" × 23.86"）

Packing List

Three-in-one document (Certificate of Conformity / Warranty Card / Material Safety Data Sheet), accessory list × 1

Lifespan

Lamp 100,000 hours
