CONTROLADOR LED HIKVISION DS-DT60C-01HI02NO

Product Model

Product Model

DS-DT60C-01HI02NO

Processing Performance

Brightness Control

1 to 100 tunable (level-by-level white balance)

Frame Frequency

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Chassis

Chassis Height

1 U

Chassis Width

Half-width

Product Type

Product Type

LED controller (The LED controller supports controlling only the receiving cards that use the hub ports.)

LED Controller Power

Average Consumption

≤ 13 W

Power Interface Quantity

1

Power Interface

100 to 240 VAC, 50/60 Hz

Video Wall

Background Images

2

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JGP/JPEG

General

Working Temperature

-10°C to 50°C

Storage Humidity

10% to 90%

Working Humidity

10% to 90%

Storage Temperature

-10°C to 50°C

Packaging Size (W × H × D)

353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)

Net Weight

0.83 kg (1.85 lb.)

Gross Weight

1.38 kg (3.04 lb.)

Dimensions (W × H × D)

210 mm × 42 mm × 177.4 mm (8.27 inch × 1.65 inch × 6.98 inch)

Packing List

1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Audio

Audio Input Interfaces

1

Audio Input Interface Type

1 channel of embedded HDMI input

Audio Output Interfaces

1

Audio Output Interface Type

3.5 mm audio output

Video Input

Video Input Interfaces

1

Video Input Interface Type

HDMI 1.4

Max. Video Input Resolution

1080P

Video Input Resolution

HDMI 1.4 port Max. resolution: 1920*1200@60 Hz Min. resolution: 320*180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Video Output

Max. Video Output Resolution

1.3 Million

Loading Capacity for Video Output to LED

Single mesh port with load 650000, Width 144-5120; alignment: 2 alignment Height 64-5120; alignment: 1 alignment

LED Loading Interfaces

2

LED Loading Interface Type

RJ-45

Wireless

Remote Control

Supports IR remote control

Front Panel

USB Port

1 channel of USB 2.0

Button

+: increase brightness -: decrease brightness Source: change signal source

Indicator

Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.

Power Switch

On: The device is started and running. Off: The device is not powered on or is not started.

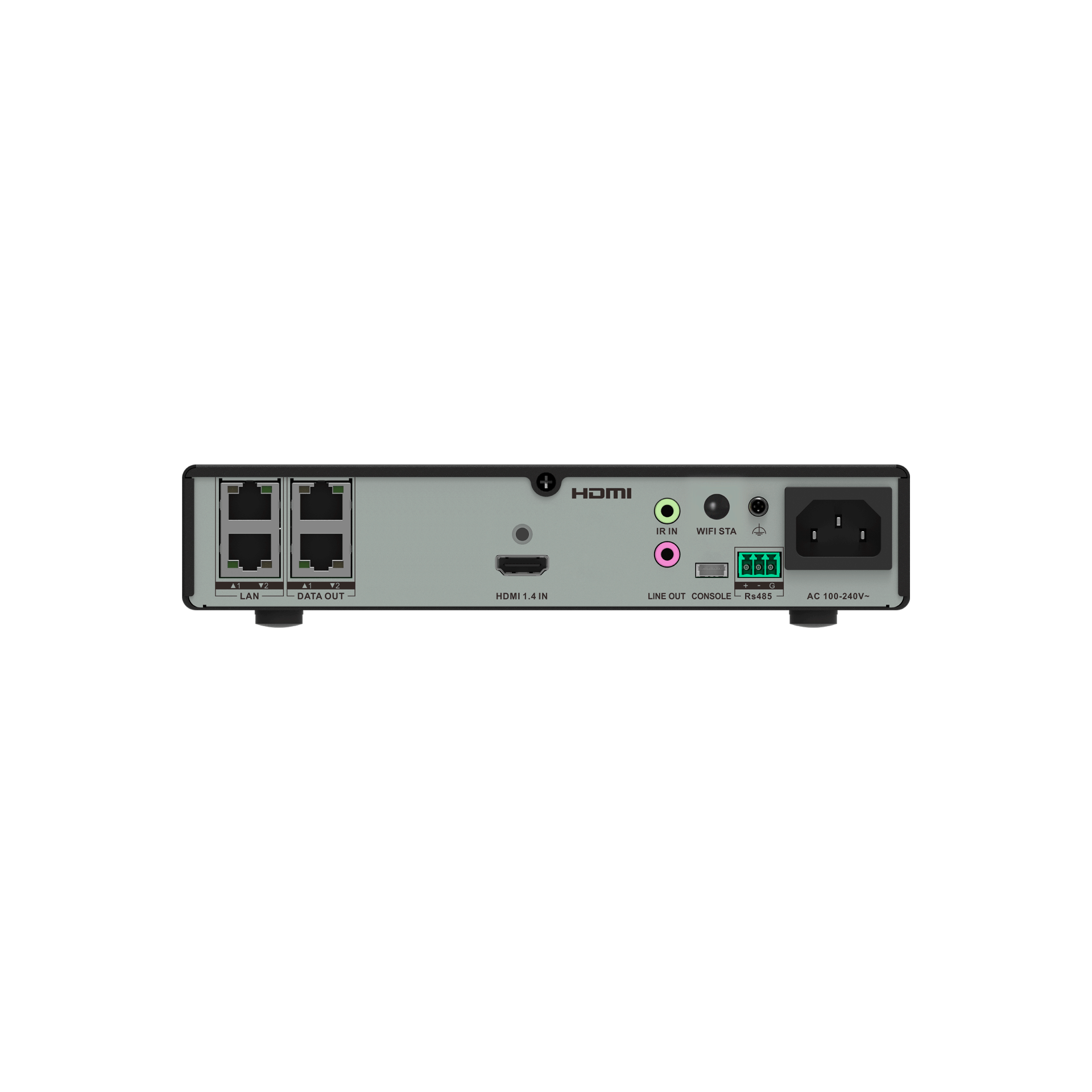

Control Interface

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) Baud rate: 115200, data bit: 8
