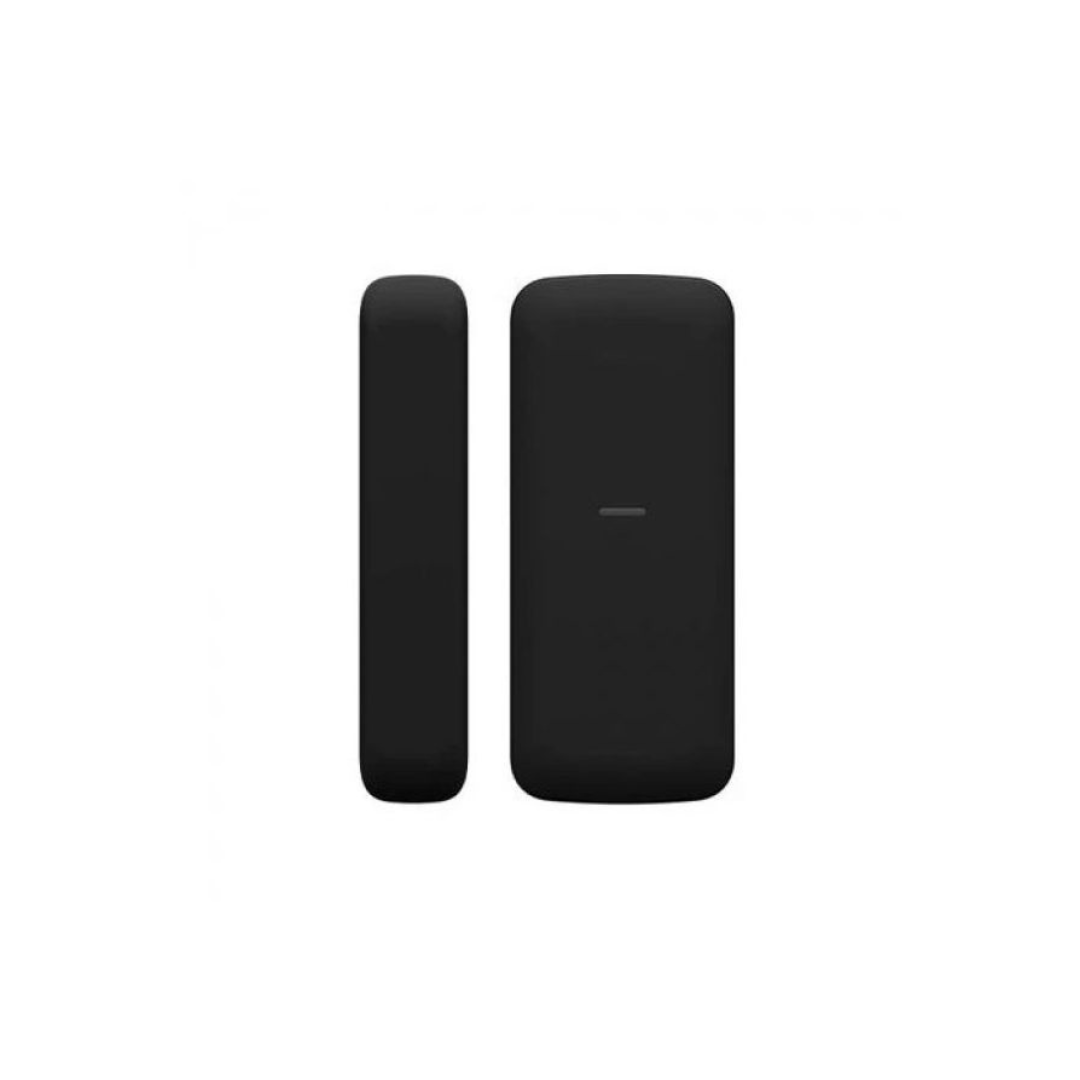

CONTACTO MAGNETICO HIKVISION DS-PDMCS-EG2-WE(Black

CONTACTO MAGNETICO HIKVISION DS-PDMCS-EG2-WE(Black)

103084132

Specification

Detection Performance	Detection Method	Opening Contact
Detection Performance	Detection Gap	52 mm Max
Feature	Digital Processing	Support
	Tamper Protection	Front;Rear
	Environment Temperature Indicator	Support
	Signal Strength Indicator	Support
Interface	Power Switch	Power up enrolling
Interface	LED Indicator	Blue (alarm)
Transmission	Transmission Technology	Tri-X Wireless
	Transmission Method	Two-Way RF Wireless
	Transmission Frequency	868MHz
	Transmission Security	AES-128 Encryption
	Transmission Range(Free Space)	1Km
	Frequency Hopping	Support
	Enrolling Method	Power up;Remote ID;QR Code
Electrical Characteristics	Standard Battery Life	Up to 3 years (standby time)
	Power Supply	Battery powered
	Battery Type	CR2450 x 1
	Typical Voltage	3V
General	Operation Temperature	-10°C to 55°C (14°F to 131°F)
	Storage Temperature	-20°C to 60°C (-4°F to 140°F)
	Operation Humidity	10% to 90%
	Dimension(WxHxD)	29 mm × 69 mm × 10 mm 14 mm × 69 mm × 10 mm
	Weight	38 g
	Mounting Method	Wall-mount (The device only supports wooden structure installation and cannot be installed on metal surface)
	Application Scenario	Indoor
