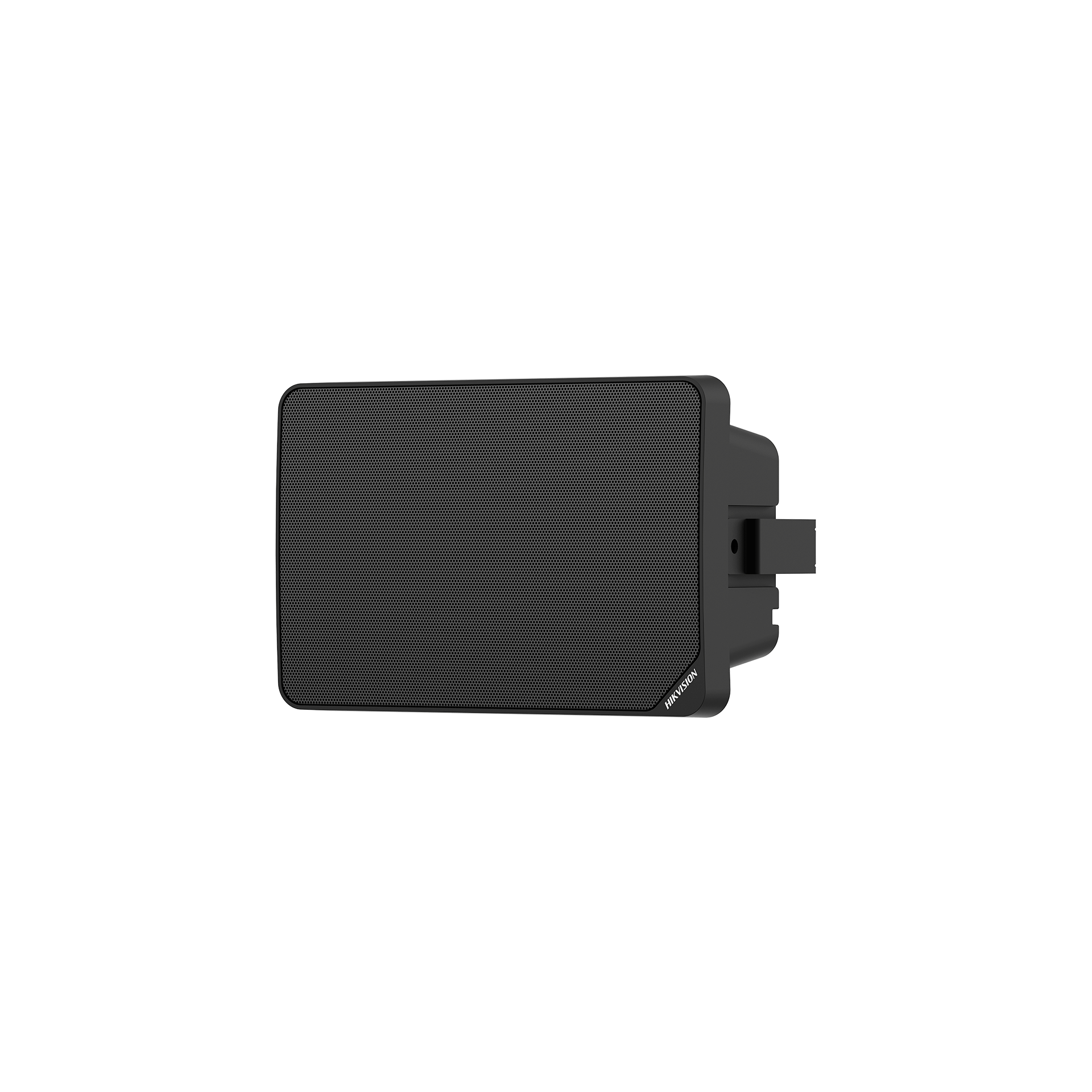

ALTAVOZ HIKVISION DS-QAZ1120G1R-B/BLACK

340677628

Altavoz de red para cabina de 20 W. Adopta chips de doble núcleo de grado industrial de alta velocidad, almacenamiento dual NOR Flash + EMMC incorporado, admita respaldo dual del sistema. Admite inicio seguro y gestión unificada por lotes de plataformas remotas a través de redes IP. Admite salida de resistencia fija y se puede conectar a un subaltavoz externo. Admite entrada de alarma, programación de armado y enlace de audio, admite síntesis de voz TTS y transmisión de texto, con opciones de audio dual. Instalación horizontal y vertical. Color negro

Fuera de stock, consultar plazo

Iniciar sesión para ver precios

Envío gratis*

*En compras superiores a 200€ en Península y Baleares.

Productos Bajo Pedido

Podemos suministrar cualquier producto sin stock.Consulta plazo.

Devoluciones

30 días para cambio odevoluciónde productos no usados.

Pagos 100% seguros

Transferencia bancaria, tarjeta de crédito/débito, PayPal, Google Pay.

Detalles del producto

ALTAVOZ HIKVISION DS-QAZ1120G1R-B/BLACK

Specification

Microphone	Type	electret
	Amount	2
	Frequency Response	100 Hz to 18 kHz
	Sensitivity	-42 dBV/Pa
	Sampling Rate	48 kHz
	Quantization Bits	16 bit
Speaker	Rated Power	20 W
	Impedance	8 Ω
	Sensitivity(1 m, 1 W)	90 dB
	Max. Acoustic Pressure	103 dBSPL
	Direction	All directions
	Frequency Response	130 Hz to 17.5 kHz
	SNR	83 dB
	Speaker Unit	5.25′′ × 1
Function	Audio Algorithm	AEC、AGC、ANS、DRC
	Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
	Audio File Format	WAV、MP3、MP2、AAC
	NTP Timing	Support
	Broadcast	Regular broadcast, live broadcast, emergency broadcast
	Two-Way Audio	Support
	Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)
Network	Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
	Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
	Client	Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Communication	Communication Method	Support wired network and bluetooth communication
Interface	Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
	Local Storage	Built-in 64 GB EMMC (Audio file storage is 55 GB.)
	API	ISAPI, ISUP, SIP,ONVIF
	Audio In	3.5 mm audio interface × 1
	Audio Out	Fixed resistance output × 1，phoenix terminal，8 Ω
	LED Indicator	Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
	Reset	Support
	Volume Knob	Support
General	Power	24 VDC/2.5 A
	Material	Main body&Front cover：plastic, bracket: metal
	Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
	Operating Humidity	＜90% (No condensation)
	Language	9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
	Dimension	268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
	Package Dimension	340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
	Weight	Approx. 2 kg (4.4 lb.)
	With Package Weight	Approx. 2.2 kg (4.8 lb.)
	Color	White
	Packing List	Device × 1 U-shaped bracket × 1 Adapter × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1
	Bluetooth	Bluetooth 5.0, 10 m
Approval	RF	CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
	EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
	Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
	Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Structure & Dimension Diagram

Parámetros principales

Modelo del producto

DS-QAZ1120G1R-B/BLACK

Marca

Hikvision CCTV

Gama

Hikvision Pro

Descargas

Datasheet_DS-QAZ1120G1R-B_340677628

Guia_DS-QAZ1120G1R-B_340677628

Manual_DS-QAZ1120G1R-B_340677628
